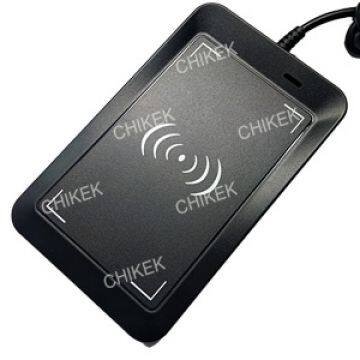

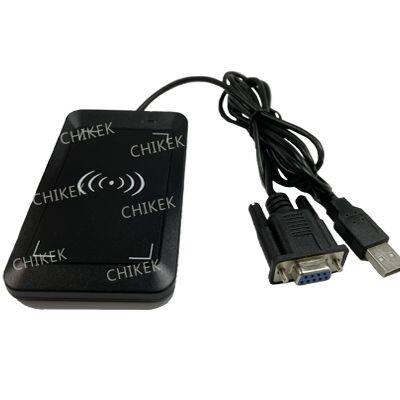

Help CenterRS232 Port RFID Reader Writer, RS232 NFC Reader, 13.56MHz Smart Card Desktop Reader
Related Products
-
USB Port Contact/Contactless Smart Card RFID Reader Writer, 13.56MHz PSAM Card ReaderNegotiableMOQ: 1 Piece -
USB Contactless IC Card RFID Reader, MIFARE DESFire Smart Card Desktop Reader, 13.56MHzNegotiableMOQ: 1 Piece
-
13.56MHz USB Contact/Contactless Card Reader Device, USB Smart RFID ReaderNegotiableMOQ: 1 Piece
-
USB Interface NFC Reader, MIFARE Card Desktop RFID Reader Writer, 13.56MHz Smart ReaderNegotiableMOQ: 1 Piece
-
LF Hitag1&HitagS RFID Reader, Animal Tag FDX-B Reader, ISO11784/11785, 125KHz/134.2KHzNegotiableMOQ: 1 Piece
Key Features:
RS232 interface, DC 5V power supply;
Compliant with ISO14443A/B, ISO15693 Standard;
Available working mode of Read/Write or Read UID only;
Support contactless cards of MIFARE Classic, MIFARE Ultralight/UL C,NFC NTAG tags, I CODE SLI/SLI S, Fujitsu MB89R112A metal tags, etc;
Support DES/3DES/AES/MAC encryption algorithm, password writing/stored;
Available to operate MIFARE DESFire EV1/EV2/EV3 Card’s PICC level, Application ID create/ delete/format, etc;
Internal LED and BUZ indication for working status
Technical Parameters:
Electrical Specification |
|
Power supply |
DC 5V |
Power consumption |
Max current： |
Operation frequency |
13.56MHz |
Baudrate |
9600~115200 bit/s ( default 115200bps) |
Interface |
RS232 |
Antenna |
Internal |
Reading range |
Up to 4 cm ~ 10 cm( depends on antenna and cards) |
Mechanical Specifications |
|
Dimension |
110mmx70mmX18mm (LxWxH) |
Weight |
50g |
Material |
ABS, Black gloss surface |
Environmental Conditions |
|
Operation temperature |
-20°C～ +80°C |
Storage temperature |
-40°C～ +85°C |
Humidity |
Relative humidity 5%～95% |
Supported Standard/ Tags |
|
ISO14443 A |
Read/write: MIFARE® Classic 1K /4K, MIFARE Ultralight®, MIFARE Ultralight® C, MIFARE DESFire® EV1/EV2/EV3, MIFARE® Smart MX, MIFARE® Plus S / X, MIFARE® Pro X, NTAG 21x
Read UID only: Read UID only of all other ISO14443A RFID tags |
ISO14443 B |
SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176 |
ISO15693 |
EM4135, EM4043, EM4x33, EM4x35, I-Code SLI / SLIX, M24LR16/64, TI Tag-it HF-I, SRF55Vxx (my-d vicinity) Fujitsu MB89R112A |
SDK information |
|
Demo software |
WINDOWS, C# language |
Files |
Comprotocol document API document User Manual Demo.exe |
Note: Other functions and details to be continued and upgrade
