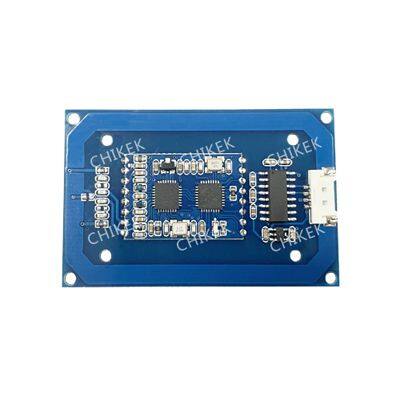

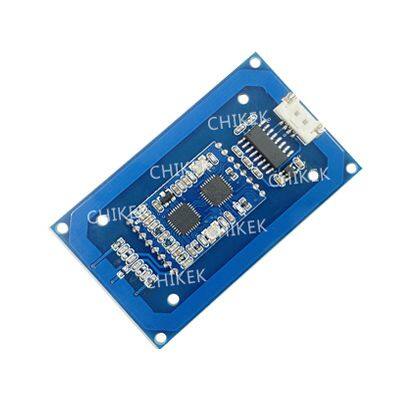

Help CenterRS232 Inbuilt Antenna MIFARE Reader Module, NFC RFID Reader Writer, ISO14443A
Related Products
-
USB Inbuilt Antenna MIFARE DESFire RFID Module, DESFire EV3 Reader Module 13.56MHzNegotiableMOQ: 1 Piece -
RS485 Internal Antenna Reader Module, RS485 MIFARE DESFire Reader RFID PLC ReaderNegotiableMOQ: 1 Piece
-
13.56MHz Inbuilt Antenna Muiti Protocol RFID Module, UART TTL, ISO14443A/B, ISO15693NegotiableMOQ: 1 Piece
-
Internal Antenna MIFARE DESFire Reader Module, Embedded IC Card RFID Module UART TTL InterfaceNegotiableMOQ: 1 Piece
-
Inbuilt TTL NFC Reader Module, Internal Antenna RFID Reader Writer Module, ISO14443ANegotiableMOQ: 1 Piece
Key Features:
DC3.3V ~5V power supply, RS232 interface;
Compliant with ISO14443A standard;
Read/Write or Read only UID of MIFARE® Classic 1K /4K,MIFARE Ultralight®, MIFARE Ultralight® C etc;
Read/Write NFC NTAG series tags/cards;
Available with E-wallet increment/decrement, backup, etc;
Connection via 1.25mm pictch 4PINs Molex connector;
Antenna on board, reading range up to 5~7cm
Technical Parameters:
Electrical Specification |
|
Power supply |
DC 3.3V ~ 5V |
Power consumption |
Max current： |
Operation frequency |
13.56MHz |
Baudrate |
9600~115200 bit/s ( default 9600bps) |
Interface |
RS232 |
Antenna |
Inbuilt on board |
Reading range |
Up to 5 cm ~ 7 cm( depends on antenna and cards) |
Mechanical Specifications |
|
Dimension |
34.5mmx58mmx3mm (LxWxH) |
|
8g |
Material |
FR-4, Blue |
|
CHK341MS |
Environmental Conditions |
|
Operation temperature |
-20°C～ +80°C |
Storage temperature |
-40°C～ +85°C |
Humidity |
Relative humidity 5%～95% |
Supported Standard/ Tags |
|
ISO14443A |
Read/Write: MIFARE® Classic 1K /4K, MIFARE Ultralight®, MIFARE Ultralight® C, NTAG 21x
Read UID only: Read UID only of all other ISO14443A RFID tags |
SDK information |
|
Demo software |
WINDOWS, C# language |
Files |
Comprotocol document API document User Manual Demo.exe |
Note: Other functions and details to be continued and upgrade
