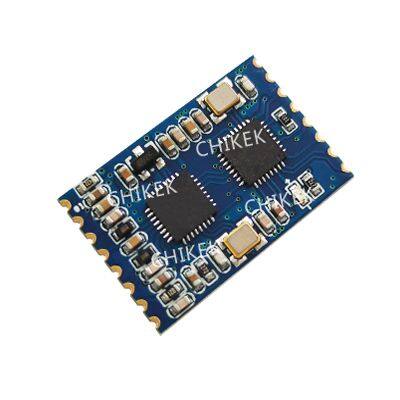

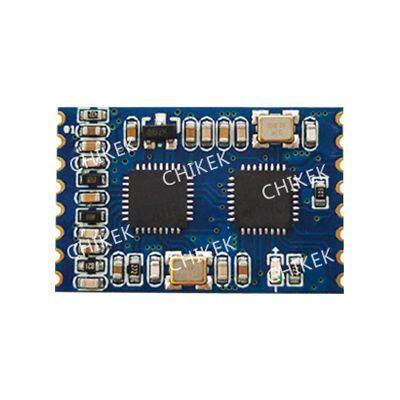

Help CenterUART TTL Interface NFC Tag RFID Module, RFID Reader 13.56MHz MIFARE Card Reader
Related Products
-
LF HitagS Card RFID Module, HitagS 64/HitagS 256/HitagS 2048 Animal Tag Reader, ISO11784/11785, UART TTLNegotiableMOQ: 1 Piece -
HF MIFARE DESFire EV1/EV2 RFID Module, Smart Lock RFID Reader Module, UART TTLNegotiableMOQ: 1 Piece
-
HF MIFARE S50/S70 Read/Write Module, UART TTL NFC Reader Module, ISO14443ANegotiableMOQ: 1 Piece
-
13.56MHz Multi Protocol Reader Writer, Smart Lock Integrated RFID Module, ISO14443A/B, ISO15693, UART TTLNegotiableMOQ: 1 Piece
-
LF 125KHz T5577 Card Reader Module, Access Control RFID Reader Module, UART TTLNegotiableMOQ: 1 Piece
Key Features:
DC3.3V ~5V power supply, UART-TTL interface;
Compliant with ISO14443A standard;
Read/Write or Read only UID of MIFARE® Classic 1K , MIFARE® Classic 4K,MIFARE Ultralight®, MIFARE Ultralight® C etc;
Available with E-wallet increment, descrement, backup value, etc;
External antenna, reading range up to 5 ~ 7cm;
External LED and BUZ available ( external driver circuit needed)
Technical Parameters:
Electrical Specification |
|
Power supply |
DC 3.3V ~ 5V |
Power consumption |
Max current： |
Operation frequency |
13.56MHz |
Baudrate |
9600~115200 bit/s ( default 9600bps) |
Interface |
UART TTL |
Antenna |
External, stamp hole |
Reading range |
Up to 4 cm ~ 10 cm( depends on antenna and cards) |
Mechanical Specifications |
|
Dimension |
25mmx16.5mmx2.8mm (LxWxH) |
Weight |
3g |
Material |
FR-4, Blue |
Model |
CHK302MT-V2 |
Supported Standard/ Tags |
|
ISO14443A |
Read/Write: MIFARE® Classic 1K /4K, MIFARE Ultralight®, MIFARE Ultralight® C, NTAG 21x
Read UID only: Read UID only of all other ISO14443A RFID tags |
SDK information |
|
Demo software |
WINDOWS, C# language |
Files |
Comprotocol document API document User Manual Demo.exe |
Note: Other functions and details to be continued and upgrade
