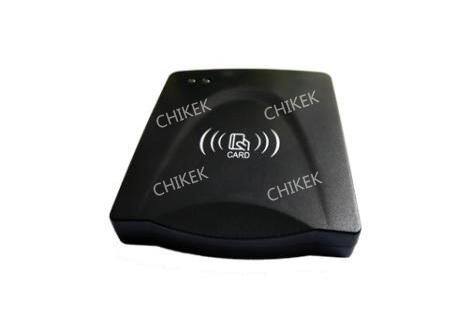

Help Center125KHz USB HITAGS Reader Writer, EM Series Card RFID Reader, ISO 11784/11785
Related Products
-
Dual Frequency LF & HF RFID Reader Writer, 125KHz& 134.2KHz and 13.56MHz, Smart Card ReaderNegotiableMOQ: 1 Piece -
USB HID MIFARE Reader, RFID MIFARE DESFire NFC Desktop Reader, ISO14443ANegotiableMOQ: 1 Piece
-
USB HID Keyboard Interface MIFARE Reader, ISO14443A MIFARE DESFire NFC TAG RFID ReaderNegotiableMOQ: 1 Piece
-
RS232 Port RFID Reader Writer, RS232 NFC Reader, 13.56MHz Smart Card Desktop ReaderNegotiableMOQ: 1 Piece
-
USB Port Contact/Contactless Smart Card RFID Reader Writer, 13.56MHz PSAM Card ReaderNegotiableMOQ: 1 Piece
Key Features:
Frequency available with 125KHz and 134.2KHz
Micro USB connector, Virtual USB port;
Compliant with ISO11784/11785 international standard, support FDX-B protocol
Available to Read/write HITAG series tag, including HITAG 1, HITAG S64/ 256/2048.
Support to read UID of EM4100/4200, TK4100 cards;
Available to format HITAG series card to FDX-B animal ear tags or ID card format;
Internal antenna, reading distance up to 50~70mm;
Internal LED and BUZ for working status indication
Technical Parameters:
Electrical Specification | |
Power supply | DC 5V from USB port |
Power consumption | Max current:<50mA, Standby current: <1 mA |
Operation frequency | 125KHz, 134.2KHz |
Baudrate | 9600~115200 bit/s ( default 9600bps) |
Interface | micro USB |
Antenna | Internal |
Reading range | 50- 70mm (depends on tag and antenna size) |
Mechanical Specifications | |
Dimension | 110mmx70mmx18mm(LxWxH) |
Weight | 50g |
Material | ABS, Black gloss surface |
Model | CHK101WU |
Environmental Conditions | |
Operation temperature | -20°C～ +80°C |
Storage temperature | -40°C～ +85°C |
Humidity | Relative humidity 5%～95% |
Supported Standard/ Tags | |
EM4100,EM4200, TK4100 | |
ISO/IEC 11784/11785 | HITAG 1, HITAG S 64, HITAG S 256, HITAG S 2048 |
SDK information | |
Demo software | Windows, C# program language |
Files | Comprotocol document API document User Manual Demo.exe |
