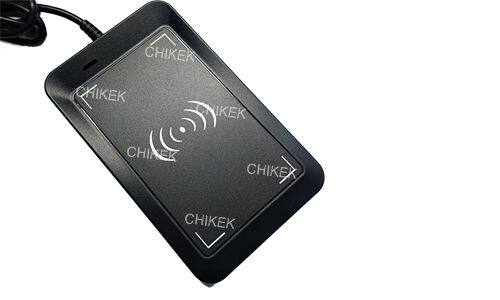

Help CenterPC/SC RFID Reader Writer, USB MIFARE DESFire Reader, Contactless Smart Card Read/Write Device, 13.56MHz
Related Products
-
125KHz USB HITAGS Reader Writer, EM Series Card RFID Reader, ISO 11784/11785NegotiableMOQ: 1 Piece -
Dual Frequency LF & HF RFID Reader Writer, 125KHz& 134.2KHz and 13.56MHz, Smart Card ReaderNegotiableMOQ: 1 Piece
-
USB HID MIFARE Reader, RFID MIFARE DESFire NFC Desktop Reader, ISO14443ANegotiableMOQ: 1 Piece
-
USB HID Keyboard Interface MIFARE Reader, ISO14443A MIFARE DESFire NFC TAG RFID ReaderNegotiableMOQ: 1 Piece
-
RS232 Port RFID Reader Writer, RS232 NFC Reader, 13.56MHz Smart Card Desktop ReaderNegotiableMOQ: 1 Piece
Brief Introduction about the PC/SC:
PC/SC , a standard user interface(API) based on WINDOWS platform, proposed by the PC/SC Workgroup which is composed of Microsoft and other leading smart card manufacturers around the world, provides an integrated environment from Personal Computer to Smart Card.
This Specification builds upon existing industry smart card standards (ISO7816/EMV) and compliments in more detail the low-level device interfaces and device-independent application APIs such as the resource manager that allows multiple applications to share the same smart card attached to a system
Key Features:
PC/SC interface, micro USB connector, power supply from USB cable;
Compliant with ISO/IEC14443 Type A/Type B, ISO/IEC15693 Standard;
Available working mode of Read/Write or Read UID only;
Support to read or write contactless smart cards, including MIFARE Classic, MIFARE Ultralight/Ultralight C, NFC NTAG tags, I CODE SLI/SLI S, Fujitsu MB89R112A metal tags, etc;
Support MIFARE® DESFire standard Data file, Back-up Data file, Value file, Linear Record file, Cyclic Record file and Transaction MAC file creating, etc;
Support KEY Authenticate,get KEY Version, change KEY, etc;
Support DES/3DES/AES/MAC encryption algorithm;
Available to operate MIFARE® DESFire PICC level, Application ID create/delete/format, etc;
Internal LED and BUZ indication for working status.
Technical Parameters:
Electrical Specification |
|
Power supply |
DC 5V from USB |
Power consumption |
Max current： |
Operation frequency |
13.56MHz |
Baudrate |
9600~115200 bit/s ( default 115200bps) |
Interface |
USB (micro USB), PC/SC (optional) |
Antenna |
Internal |
Reading range |
Up to 5 cm ~ 10 cm( depends on antenna and cards) |
Mechanical Specifications |
|
Dimension |
110mmx70mmX18mm (LxWxH) |
Weight |
50g |
Material |
ABS, Black gloss surface |
Environmental Conditions |
|
Operation temperature |
-20°C～ +80°C |
Storage temperature |
-40°C～ +85°C |
Humidity |
Relative humidity 5%～95% |
Supported Standard/ Tags |
|
ISO14443 A |
Read/write: MIFARE® Classic 1K /4K, MIFARE Ultralight®, MIFARE Ultralight® C, MIFARE DESFire® EV1/EV2/EV3, MIFARE® Smart MX, MIFARE® Plus S / X, MIFARE® Pro X, NTAG 21x
Read UID only: Read UID only of all other ISO14443A RFID tags |
ISO14443 B |
SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176 |
ISO15693 |
EM4135, EM4043, EM4x33, EM4x35, I-Code SLI / SLIX, M24LR16/64, TI Tag-it HF-I, SRF55Vxx (my-d vicinity) Fujitsu MB89R112A |
SDK information |
|
Demo software |
WINDOWS, C# language |
Files |
Comprotocol document API document User Manual Demo.exe |
Note: Other functions and details to be continued and upgrade
