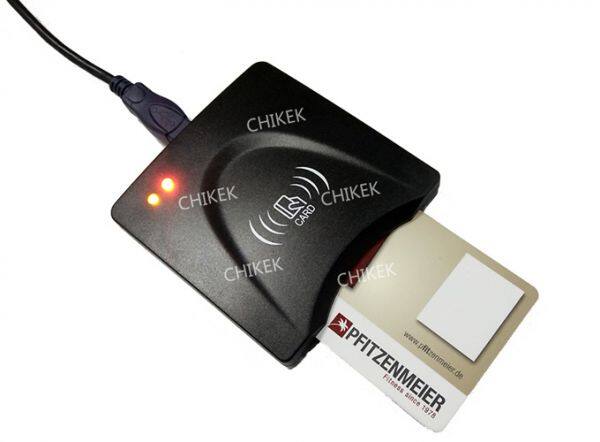

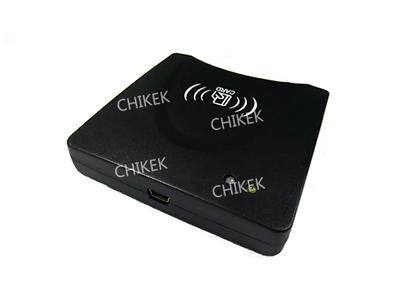

Help CenterUSB Port Contact/Contactless Smart Card RFID Reader Writer, 13.56MHz PSAM Card Reader
Related Products
-
USB Contactless IC Card RFID Reader, MIFARE DESFire Smart Card Desktop Reader, 13.56MHzNegotiableMOQ: 1 Piece -
13.56MHz USB Contact/Contactless Card Reader Device, USB Smart RFID ReaderNegotiableMOQ: 1 Piece
-
USB Interface NFC Reader, MIFARE Card Desktop RFID Reader Writer, 13.56MHz Smart ReaderNegotiableMOQ: 1 Piece
-
LF Hitag1&HitagS RFID Reader, Animal Tag FDX-B Reader, ISO11784/11785, 125KHz/134.2KHzNegotiableMOQ: 1 Piece
-
ISO18000-6C USB UHF 915MHz RFID Reader, Contactless Access Control Card ReaderNegotiableMOQ: 1 Piece
Key Features:
DC5V power supply from USB; USB COM port;
Compliant with ISO14443A/B, ISO15693, ISO7816 T=1 Standard;
Support Read/Write contactless series cards and Contact smart SAM cards.
Embedded with ONE smart contact card socket under ISO7816 T=1 standard;
Available to operate DESFire PICC level, Application ID create/delete/format, etc;
Support to create Standard DataFile&BackupFile, and ValueFile, RecordFile, etc;
Dimension with 80mmx84mmx12mm;
Internal LED&BUZ for status indication, ONE smart SAM card socket.
Technical Parameters:
Electrical Specification |
|
Power supply |
DC 5V from USB |
Power consumption |
Max current： |
Operation frequency |
13.56MHz |
Baudrate |
9600~115200 bit/s ( default 115200bps) |
Interface |
USB (micro USB) |
Antenna |
Internal |
Reading range |
Up to 1 cm ~ 10 cm( depends on antenna and cards) |
Mechanical Specifications |
|
Dimension |
80mmX84mmX12mm (LxWxH) |
Weight |
50g |
Material |
ABS, Black gloss surface |
Environmental Conditions |
|
Operation temperature |
-20°C～ +80°C |
Storage temperature |
-40°C～ +85°C |
Humidity |
Relative humidity 5%～95% |
Supported Standard/ Tags |
|
ISO14443 A |
Read/write: MIFARE® Classic 1K /4K, MIFARE Ultralight®, MIFARE Ultralight® C, MIFARE DESFire® EV1/EV2/EV3, MIFARE® Smart MX, MIFARE® Plus S / X, MIFARE® Pro X, NTAG 21x
Read UID only: Read UID only of all other ISO14443A RFID tags |
ISO14443 B |
SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176 |
ISO15693 |
EM4135, EM4043, EM4x33, EM4x35, I-Code SLI / SLIX, M24LR16/64, TI Tag-it HF-I, SRF55Vxx (my-d vicinity) Fujitsu MB89R112A |
ISO7816 |
Smart SAM T=1 (optional) |
SDK information |
|
Demo software |
WINDOWS, C# language |
Files |
Comprotocol document API document User Manual Demo.exe |
Note: Other functions and details to be continued and upgrade
