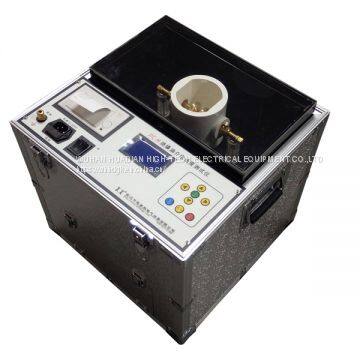

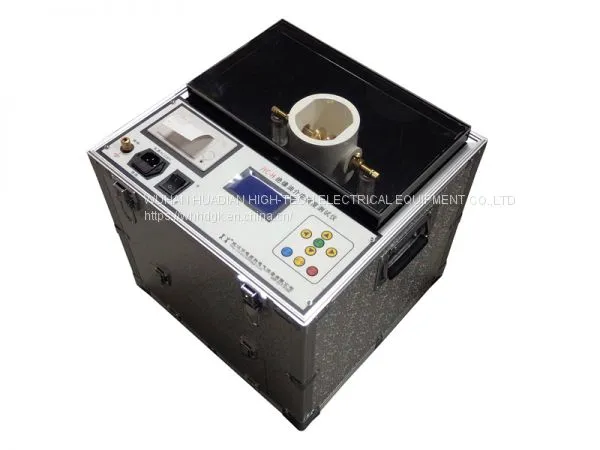

Insulating Oil Dielectric Strength Tester
Brief introduction
JYC -H series insulating oil dielectric strength automatic tester is developed on the base of HCJ-9101, accord with international standard IEC-156 and national standard GB507-86> and the feedback of users. This instrument chooses the single chip microcomputer as the leading, start to test after setting, the whole test process automatically controled by micocomputer, easy to operate, convenient and useful.
Product features
◆With automatic detection function, boot automatically enter the reset state to implement the regulator back to zero.
◆Use mico TPU-A panel type printer, print and output automatically.
◆Test time, stirring and static time, sound control and light-operated reminder, continuously print and non print is changeable according to users needs.
◆Fully automatic magnetic vibrator stir to remove oil uneven and bubbles.
Prodcut mode
Mode |
Test Speed |
Oil Cup Quantity |
Controlling Type |
JYC-H |
2kV/S±10% |
Single |
Automatically control with printer |
JYC-H2 |
0.5~5kV/S(adjustable) |
Three |
Automatically control with printer, can connect with computer |
JYC-H6 |
0.5~5kV/S(adjustable) |
Six |
Automatically control with printer, can connect with computer |
