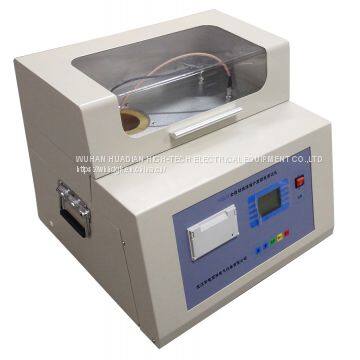

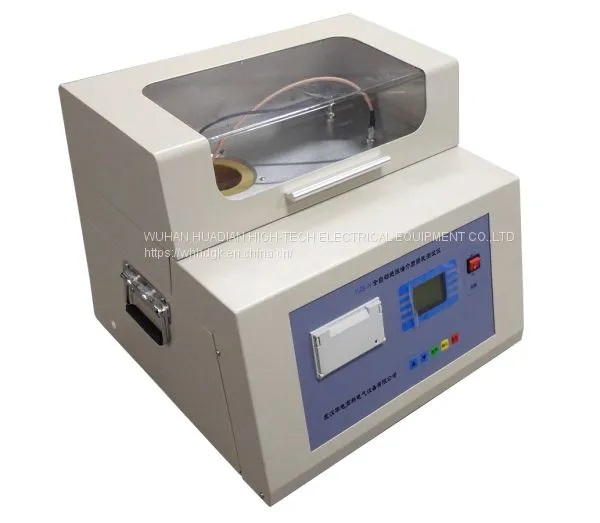

Insulating Oil Dielectric Loss Tester

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	WUHAN HUADIAN HIGH-TECH		Place of Origin	China
Model Number	YJS-H

Product Description

Insulating Oil Dielectric Loss Tester

Brief introduction

YJS-H insulating oil dielectric loss tester is a high precision instrument for dielectric loss angle and volume resistivity of insulating oil and other liquid dielectric.

Product features

◆Adopts digital technology, intelligent automation measurement.

◆Equiped with 240x180 liquid crystal display screen, all Chinese manuel, every operation step with Chinese prompt.

◆Test results can be printed out, the operator does not need professional training to be able to skillfully operate.

◆Digital control the inverter and sampling circuit, output voltage is continuously adjustable.

◆With various protection measures for input voltage fluctuation, output short circuit, overvoltage, overcurrent, temperature ect. ensure the safety and reliability of the instrument.

Product parameters

Using Condition	-5℃~40℃ RH<80%	Temperature Control Error	±1℃
Power Supply	AC220V±10% unlimited frequency	Temperature Control Time	Room temperature reach 90℃,<20min
High Voltage Output	1000~2200V every 200V	Measurement Range	tgδ unlimited Cx 15PF~300PF Rx 10M~10T
Output Current	25mA	Accuracy	△tgδ:±(read1.0%+0.020%) △Cx: ±(read1.0%+0.5PF) △Cx: read*10%
Capacitance	50VA	Relative Dielectric Constant	εr automatically count
Temperature Control Inducton	Maximum power 500W	Volume Resistivity	ρautomatically count
Temperature Control Range	<100℃	Outline Dimension	450x310x360mm³
Temperature Measurement Error	±0.1℃	Weight	18kg

Oil cup parameters

Distance Between High and Low Voltage	2mm	Liquid Capacity	About 40ml
Capacitance of Empt Cup	60±2PF	Electrode Material	Stainless steel
Maximum Test Voltage	Power frequency 2000V	Volume	70mm(D)x120mm(H)
Dielectric Loss of Empty Cup	tgδ<1x10-4
