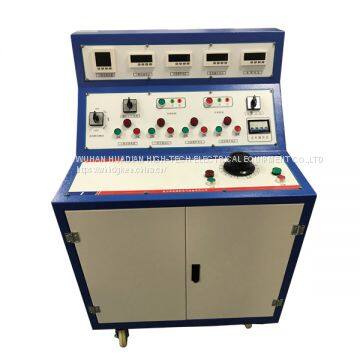

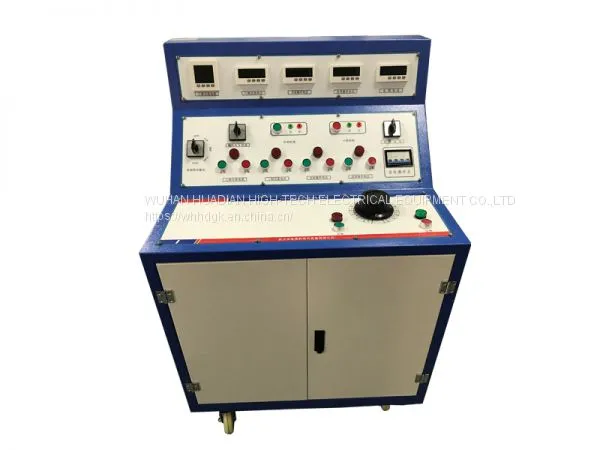

High And Low Voltage Switch Cabinet Power On Test Bench
High And Low Voltage Switch Cabinet Power On Test Bench
Brief introduction
KGT-H series high and low voltage switch cabinet power on test bench is used for power on test of high and low voltage switch cabinet. It can provide all kinds AC, DC power source,convenient to test switch cabinet, improve working efficiency.
Product features
◆Integrate many kinds AC, DC power source.
◆Convenient to test switch cabinet, greatly improve working efficiency.
◆Every circuit independently control output.
◆With working alarm light indication.
◆Can be customized according to user’s requirements.
Product parameters
Input Power Supply | Three phase four wire AC 380V N | Output | 0~430V, current<10A(adjustable) 0~10V, voltage<20V(adjustable) 10A/10V capacitive, resistive, inductive(adjustable) |
AC Operation Voltage | AC 0~380V, when 220V, current<10A | ||
DC Operation Voltage | Adjustable value DC0~300V | ||
Fixed Value | DC24V, 36V, 110V, 220V | Size | 820mm*740mm*1160mm |
Single phase AC 220V output | Weight | 70kg | |
Three phase AC10A output |
