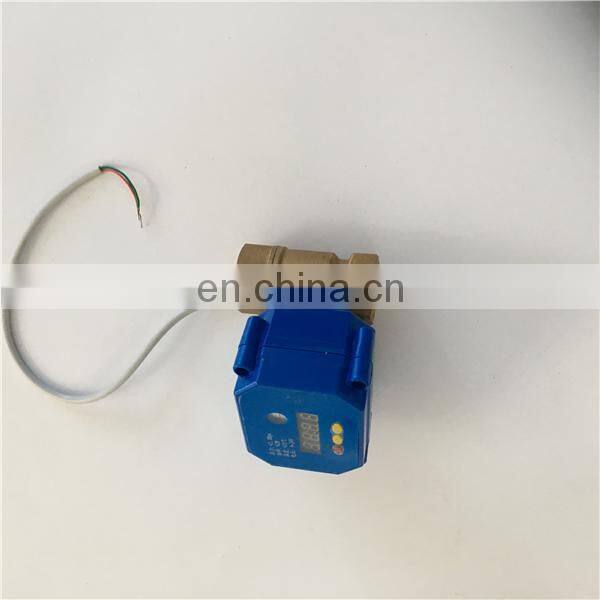

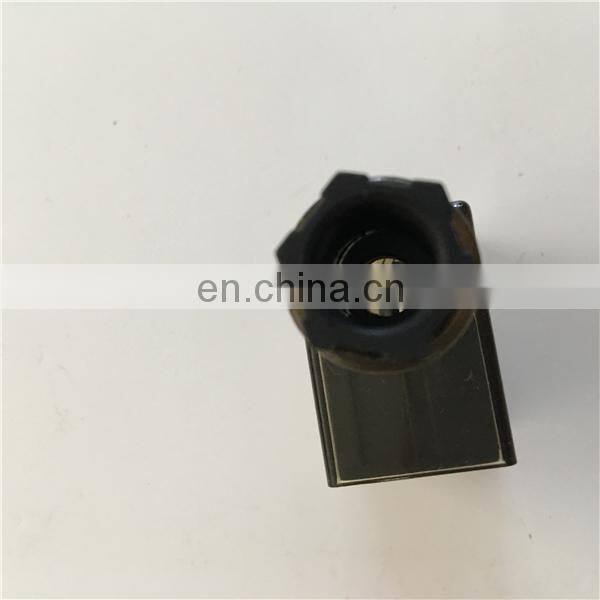

Valvula Solenoide 2"
- Ningbo
- T/T Credit Card
You May Like
Product Details
| Brand Name | ATC | Place of Origin | Zhejiang, China | |
| Model Number | Pls check below | |||
| Structure | Shutoff | Standard or Nonstandard | Standard | |
| Pressure | Medium Pressure | Power | Solenoid | |
| Port Size | 1/2"1/4"1/6"1/8" | Media | Gas | |
| Temperature of Media | Medium Temperature |
Product Description

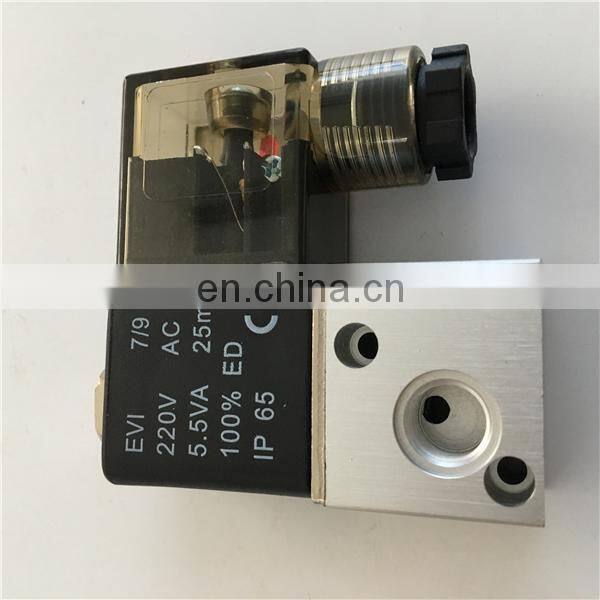

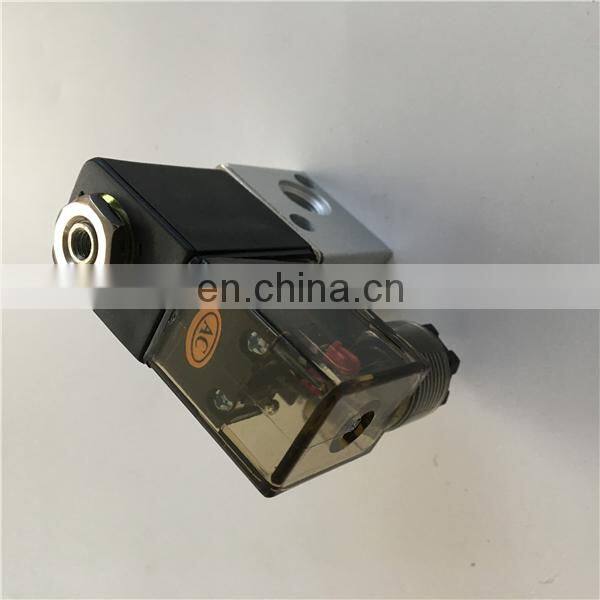

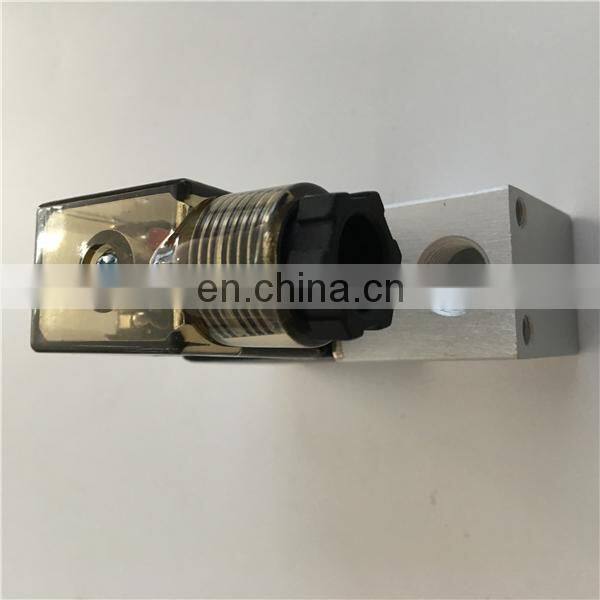

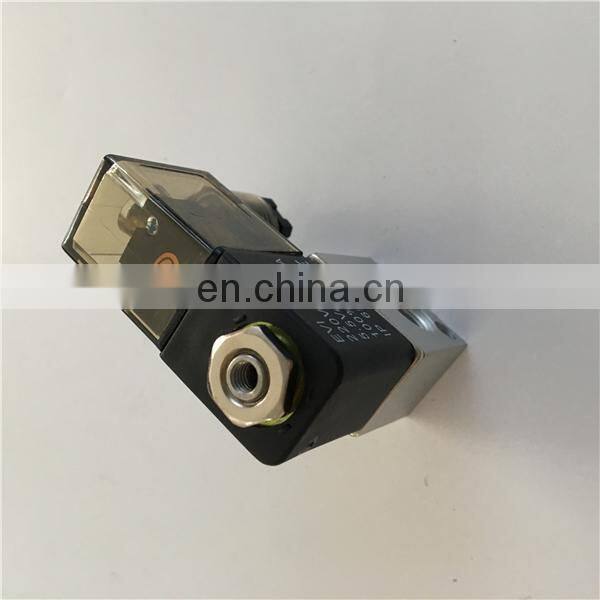

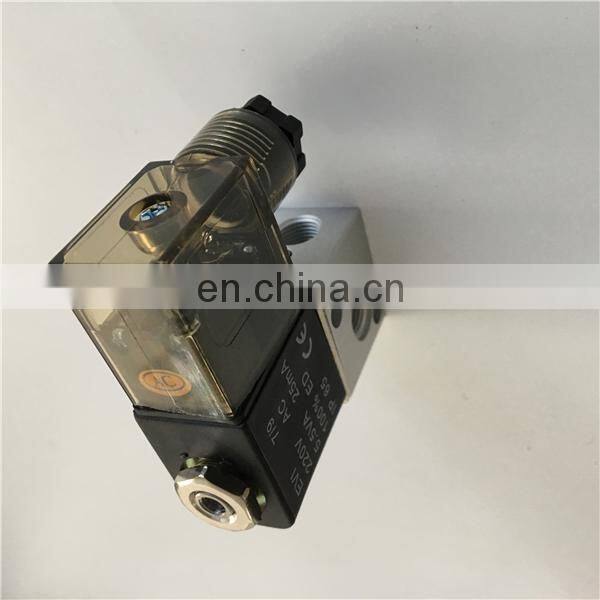

solenoid valve
Model:
| 4V110-M5/06 |
| 4V210-08/06 |
| 4V310-10/08 |
| 4V410-15/10 |
| 4V120-M5/06 |
| 4V220-08/06 |
| 4V320-10/08 |
| 4V420-15/10 |
Application
These durable, heavy-duty commercial valves offer a selection of key features designed to provide reliable, cost-effective performance under the most challenging.
Technical Data:
| Model | 4V210-06 | 4V220-06 | 4V230C-06 | 4V230E-06 | 4V230P-06 | 4V210-08 | 4V220-08 | 4V230C-08 | 4V230E-08 | 4V230P-08 | 3V210-06 | 3V220-06 | 3V210-08 | 3V220-08 |
| 4A210-06 | 4A220-06 | 4A230C-06 | 4A230E-06 | 4A230P-06 | 4A210-08 | 4A220-08 | 4A230C-08 | 4A230E-08 | 4A230P-08 | 3A210-06 | 3A220-06 | 3A210-08 | 3A220-08 | |
| Valve type | 5/2way | 5/3way | 5/2way | 5/3way | 3/2way | |||||||||
| Effective Cross Section Area | 14mm2(CV=0.78) | 12mm2(CV=0.67) | 16mm2(CV=0.89) | 12mm2(CV=0.67) | 14mm2 (CV=0.78) | 16mm2 (CV=0.89) | ||||||||
| Port Size | In=Out=Exhaust=G1/8" | In=Out=G1/4" Exhaust=G1/8" | In=Out= Exhaust=G1/8" | In=Out= Exhaust=G1/4" | ||||||||||
| Working Medium | 40μ Micron filtered air | |||||||||||||
| Acting Type | Internal Piloted | |||||||||||||
| Working pressure | 0.15~0.8MPa | |||||||||||||
| Max. Test Pressure | 1.2MPa | |||||||||||||
| Ambient Temperature | 5~50oC | |||||||||||||
| Operating Voltage Tolerance | ±10% | |||||||||||||
| Power Consumption | AC:5.5VA DC:4.8W | |||||||||||||
| Insulation | F Class | |||||||||||||
| Protection | IP65 | |||||||||||||

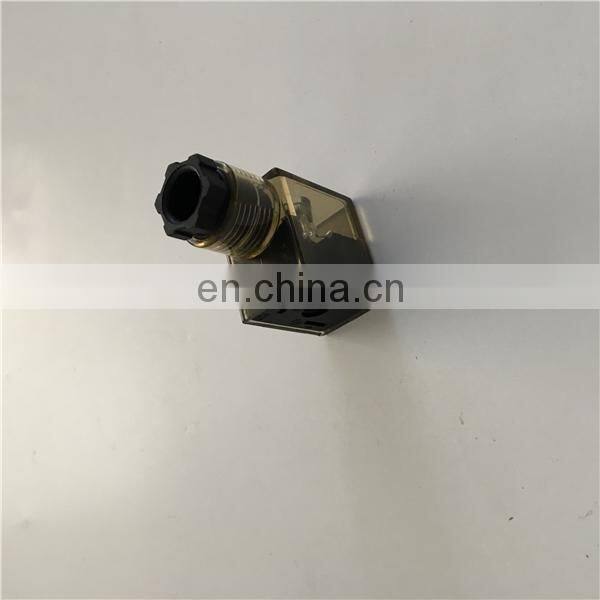

| Wiring/Connector | Lead wire or DIN Connector type | |||||||||||||
| Switching Frequency | 5 cycle/sec | |||||||||||||
| Response Time | 0.05 sec | |||||||||||||
Main features
- the direct-acting type diaphragm structure without pressure to open to extend the using field.
- Using the plate diaphragm structure opening and closing with reliable. Then extent product life.
- Can choose plastic type,. Explosion-proof energy-saving.
working medium : air,water,oil,gas
Product name: 2S series 2S025-08J Solenoid valve with stainless steel body
Motion Pattern : Direct Drive Type
Type : Normal Close Type
Aperture of Flow Rate : 2.5mm
Cv Value : 0.23
Joint Pipe Bore : 1/8" / 1/4" NPT is available
Operation Fluid Viscosity : below 20 CST
Working Pressure : 0~7 kgf/cm2
Max.Pressure Resistance : 10 kgf/cm2
Operating Temperature Range : -5~100℃
Voltage: DC12V,DC24V,AC24V,AC36V,AC110V,AC220V,AC380V
