Ultrahigh Pressure 20000 Psi MP HiP Autoclave Butech Type 1/4'' 3/8'' 1'' OD Ball Valve Two Way 3-way Ball Valve
US$ 80 - 200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Hikelok
Place of Origin:
China
Model Number:
20BV
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
30 days
Related Products
-
Ultrahigh Pressure 60000 Psi Autoclave HiP Butech Type 1/4'' 3/8'' 9/16'' OD Threading Tool Coning Tool Reseating ToolUS$ 70 - 200MOQ: 1 Piece -
High Pressure 6000psig Bar Stock Ball Valve Stainless Steel Valves Swagelok Type Ball ValveUS$ 35 - 120MOQ: 1 Piece
-
One- Piece Body Ball Valves High Quality Instrument Ball Valve Stainless Steel ValvesUS$ 30 - 150MOQ: 1 Piece
-
High Pressure Swagelok Type Needle Valve Stainless Steel Valves With Cheap PriceUS$ 20 - 60MOQ: 1 Piece
-
Chinese Manufacturer Needle Valves Stainless Steel Valves With High Quality Instrument Needle ValveUS$ 40 - 60MOQ: 1 Piece
Brand Name
Hikelok
Place of Origin
China
Model Number
20BV
Material
Stainless Steel
Application
General
Structure
Ball
Standard or Nonstandard
Standard
Pressure
High Pressure
Power
Manual
Port Size
3/8 in. to 1in.
Media
Oil
Temperature of Media
High Temperature
Features:
- One-piece, trunnion mounted style, ideal for severe duty applications.

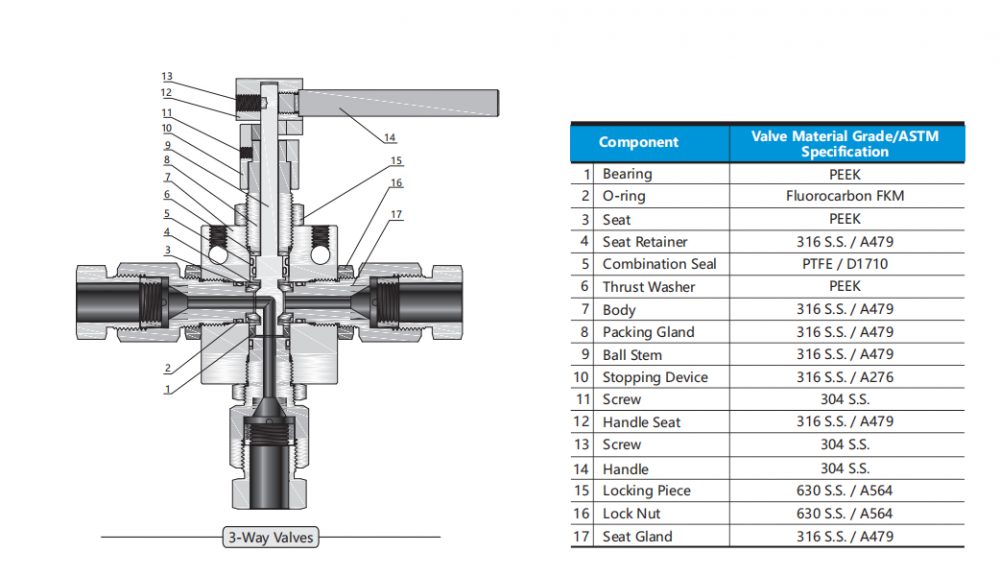

- Two-way and three-way valve configurations.
- PEEK seats offer excellent resistance to chemicals, heat, and wear/abrasion.
- Full-port flow path minimizes pressure drop.

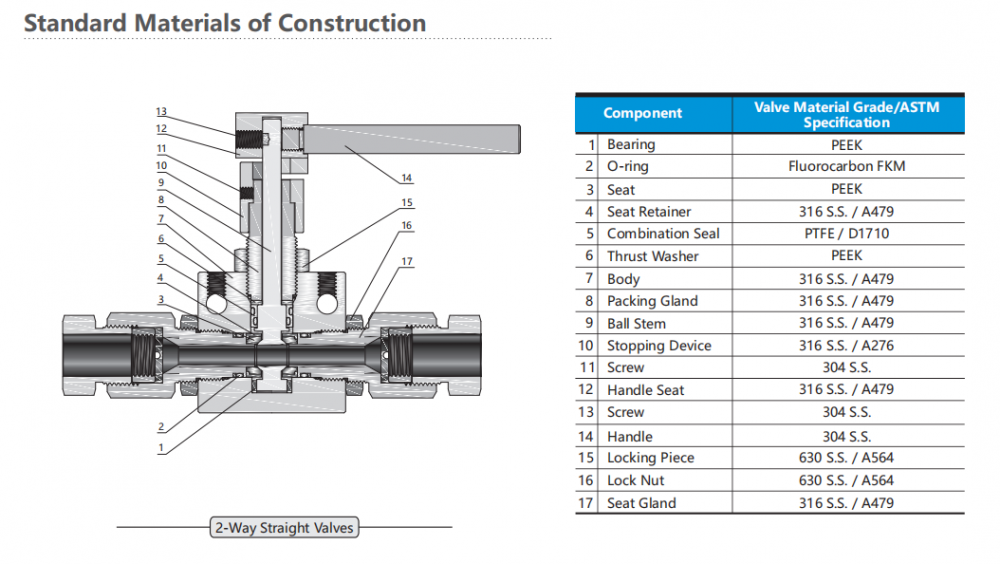

- 316 cold worked stainless steel construction.
- Fluorocarbon FKM O-rings for operation from 0°F to 40oF (-17.8°C to 204°C).
- Wide selection of tube and pipe end connections available.
