Home > Industrial Equipment & Components > Valve > Ball Valve > Ultrahigh Pressure 30000 Psi HiP Autoclave Butech Type Staineless Steel 1/4'' 3/8'' OD HP Needle Valve
Ultrahigh Pressure 30000 Psi HiP Autoclave Butech Type Staineless Steel 1/4'' 3/8'' OD HP Needle Valve
US$ 50 - 200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Hikelok
Place of Origin:
China
Model Number:
30NV
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
30 days
Related Products
-
Ultrahigh Pressure 20000 Psi Autoclave HiP Butech Type 1/4'' 3/8'' 9/16'' OD Threading Tool Coning Tool Reseating ToolUS$ 70 - 200MOQ: 1 Piece -
Ultrahigh Pressure 20000 Psi MP HiP Autoclave Butech Type 1/4'' 3/8'' 1'' OD Ball Valve Two Way 3-way Ball ValveUS$ 80 - 200MOQ: 1 Piece
-
Ultrahigh Pressure 60000 Psi Autoclave HiP Butech Type 1/4'' 3/8'' 9/16'' OD Threading Tool Coning Tool Reseating ToolUS$ 70 - 200MOQ: 1 Piece
-
High Pressure 6000psig Bar Stock Ball Valve Stainless Steel Valves Swagelok Type Ball ValveUS$ 35 - 120MOQ: 1 Piece
-
One- Piece Body Ball Valves High Quality Instrument Ball Valve Stainless Steel ValvesUS$ 30 - 150MOQ: 1 Piece
Brand Name
Hikelok
Place of Origin
China
Model Number
30NV
Material
Stainless Steel
Application
General
Structure
Needle
Standard or Nonstandard
Standard
Pressure
High Pressure
Power
Manual
Port Size
1/4‘’ 3/8‘’ 9/16‘’
Media
Oil
Temperature of Media
High Temperature
Features:
- Tubing sizes available for 1/4", 3/8",9/16"
- Non-rotating stem and rising stem design
- Metal-to-metal seating achieves bubble-tight shutoff, longer stem/seat service life
in abrasive flow, greater durability for repeated on/off cycles
- PTFE is the standard packing material, RPTFE glass, Graphite are available
- Graphite packing temperature up to 800°F (427°C)
- Stem sleeve and packing gland materials have been selected to achieve extended
thread cycle life and reduced handle torque

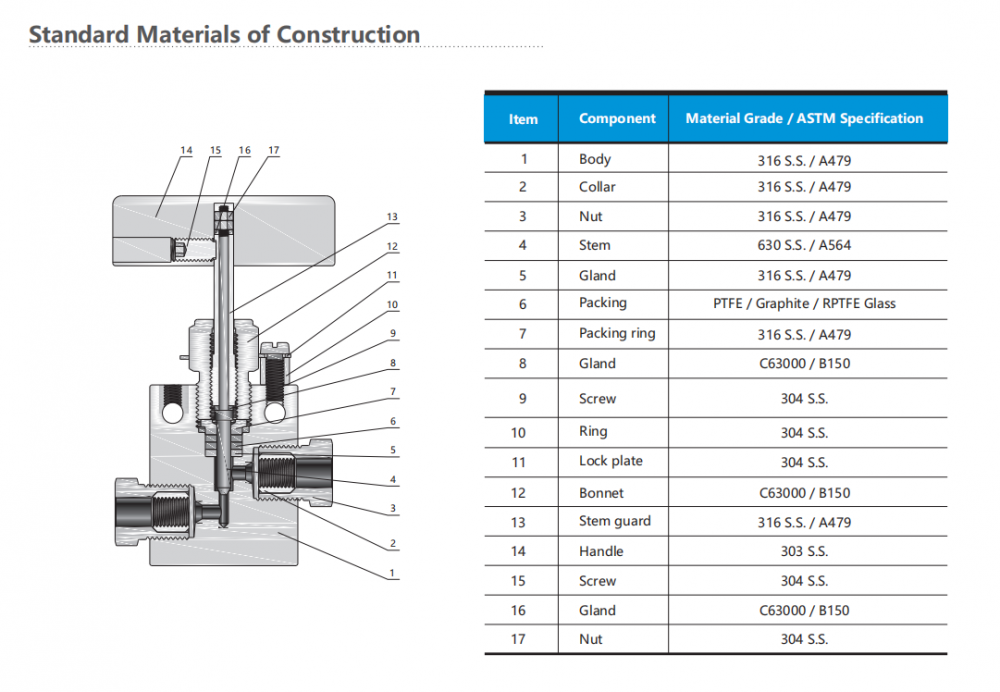

- Cold-worked type 316 stainless steel body and aluminum bronze packing gland
- Vee or Regulating stem tips for options
- Packing below the thread of valve stem
- The locking device of packing gland is reliable

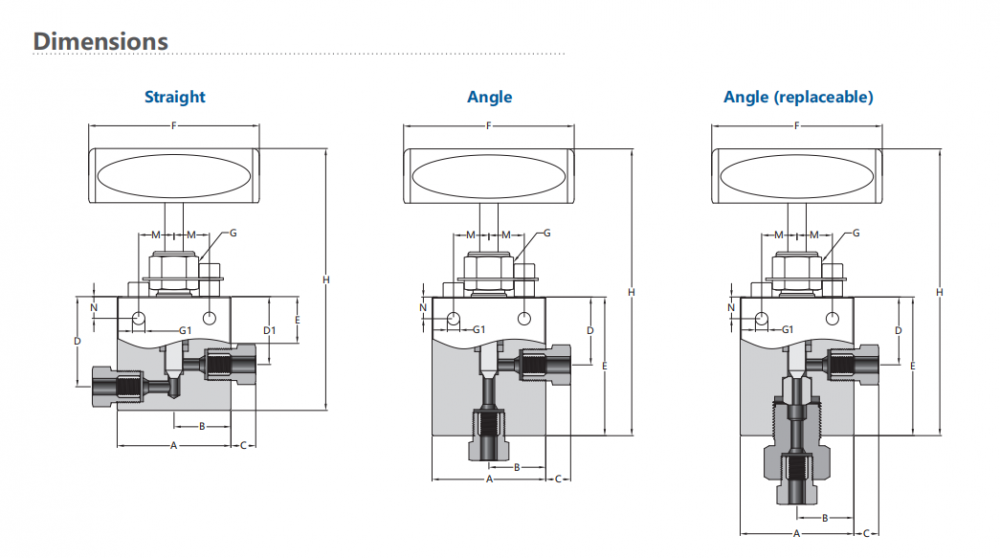

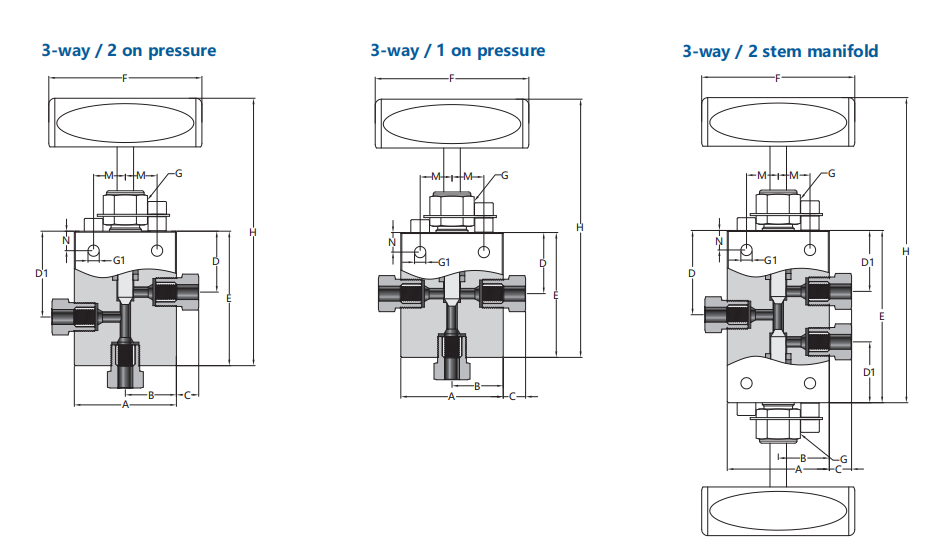

- Five body patterns are available
