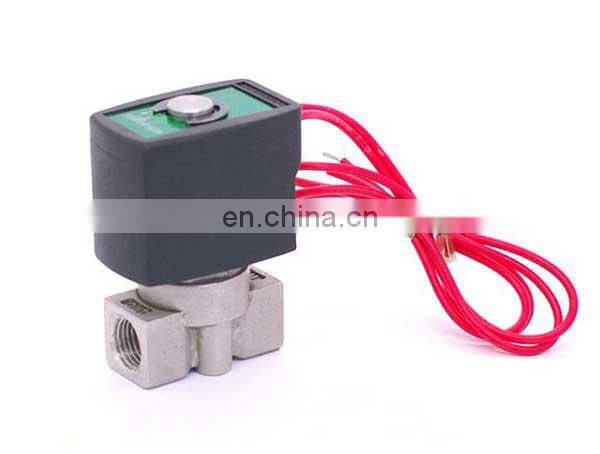

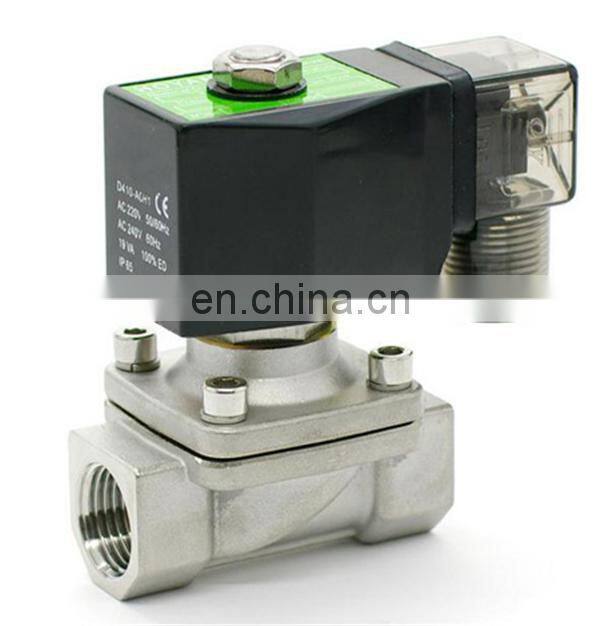

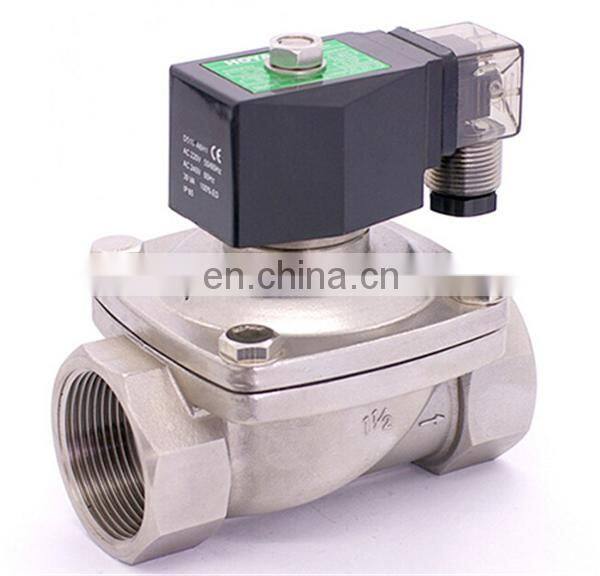

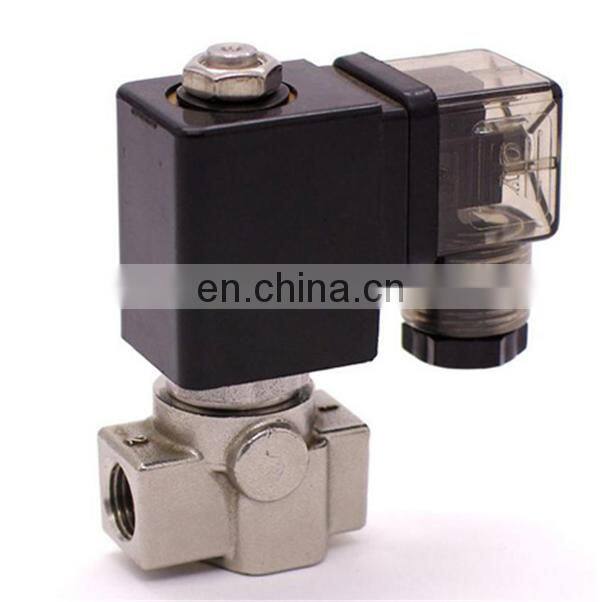

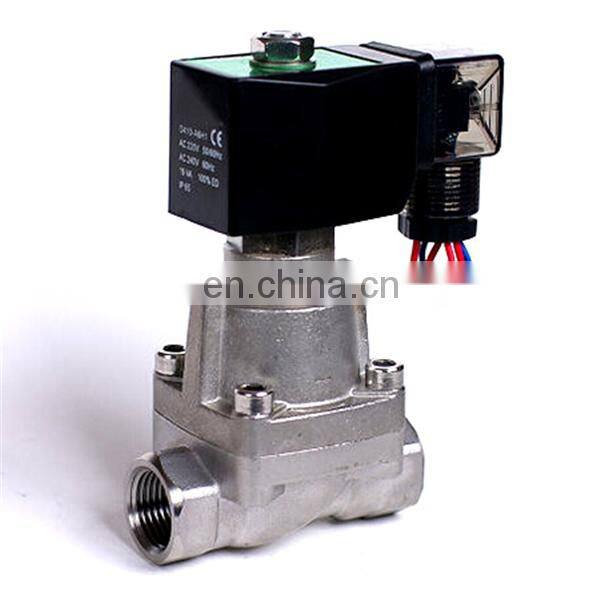

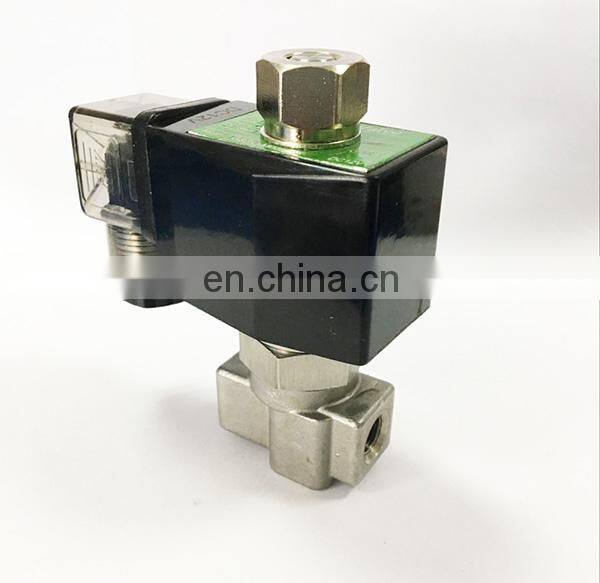

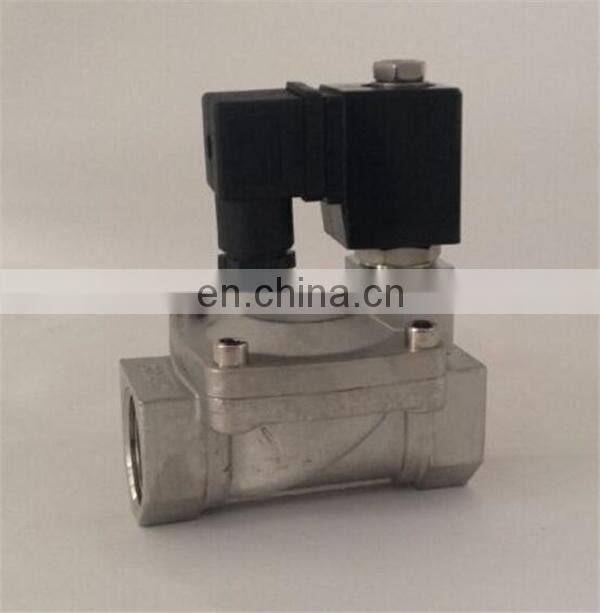

12v Fuel Shut off Solenoid
US$ 1 - 40
/ Piece
20 Pieces(Min. Order)
- Ningbo
- T/T Credit Card
You May Like
Product Details
| Brand Name | ATC | Place of Origin | Zhejiang, China | |
| Model Number | Pls check below | |||
| Structure | Shutoff | Standard or Nonstandard | Standard | |
| Pressure | Medium Pressure | Power | Solenoid | |
| Port Size | 1/2"1/4"1/6"1/8" | Media | Gas | |
| Temperature of Media | Medium Temperature |
Product Description
solenoid valve
Model:
| 4V110-M5/06 |
| 4V210-08/06 |
| 4V310-10/08 |
| 4V410-15/10 |
| 4V120-M5/06 |
| 4V220-08/06 |
| 4V320-10/08 |
| 4V420-15/10 |
| 3V110-M5/06 |
| 3V210-08/06 |
| 3V310-10/08 |
| 3V410-15/10 |
| 3V120-M5/06 |
| 3V220-08/06 |
| 3V320-10/08 |
| 3V420-15/10 |
Technical Data:
| Model | 4V210-06 | 4V220-06 | 4V230C-06 | 4V230E-06 | 4V230P-06 | 4V210-08 | 4V220-08 | 4V230C-08 | 4V230E-08 | 4V230P-08 | 3V210-06 | 3V220-06 | 3V210-08 | 3V220-08 |
| 4A210-06 | 4A220-06 | 4A230C-06 | 4A230E-06 | 4A230P-06 | 4A210-08 | 4A220-08 | 4A230C-08 | 4A230E-08 | 4A230P-08 | 3A210-06 | 3A220-06 | 3A210-08 | 3A220-08 | |
| Valve type | 5/2way | 5/3way | 5/2way | 5/3way | 3/2way | |||||||||
| Effective Cross Section Area | 14mm2(CV=0.78) | 12mm2(CV=0.67) | 16mm2(CV=0.89) | 12mm2(CV=0.67) | 14mm2 (CV=0.78) | 16mm2 (CV=0.89) | ||||||||
| Port Size | In=Out=Exhaust=G1/8" | In=Out=G1/4" Exhaust=G1/8" | In=Out= Exhaust=G1/8" | In=Out= Exhaust=G1/4" | ||||||||||
| Working Medium | 40μ Micron filtered air | |||||||||||||
| Acting Type | Internal Piloted | |||||||||||||
| Working pressure | 0.15~0.8MPa | |||||||||||||
| Max. Test Pressure | 1.2MPa | |||||||||||||
| Ambient Temperature | 5~50oC | |||||||||||||
| Operating Voltage Tolerance | ±10% | |||||||||||||
| Power Consumption | AC:5.5VA DC:4.8W | |||||||||||||
| Insulation | F Class | |||||||||||||
| Protection | IP65 | |||||||||||||
| Wiring/Connector | Lead wire or DIN Connector type | |||||||||||||
| Switching Frequency | 5 cycle/sec | |||||||||||||
| Response Time | 0.05 sec | |||||||||||||
LPG, natural, butan, propane gas solenoid valve Material:
Body - Brass or Stainless steel
Seal -NBR, EPDM, PTFE or VITON
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304
Shading Rings - Stainless Steel 304
LPG, natural, butan, propane gas solenoid valve Characteristic:
1.Direct lifting diaphragm construction;
2.Open from zero bar for low pressure system use;
3.High frequency of DIN plug coil
4.Medium:Air, City Gas, Water, Oil, Petroleum, etc.
