Help CenterJohnson Wedge V Wire Lauter Tun Screen Panel for Brewing
Related Products
-
Wedge Wire Beer Brewing Screen Mash/lauter Tun Screen False Bottom Sieve PlateUS$ 10 - 20MOQ: 1 Unit -
Stainless Steel Lauter Tun Screen for Beer EquipmentNegotiableMOQ: 1 Unit
-
Welded SS Wedge Wire Brewery Lauter Tun False BottomUS$ 10 - 20MOQ: 1 Unit
-
Lauter Tun False Bottom Screen for BreweryUS$ 10 - 20MOQ: 1 Unit
-
Stainless Steel Sintered Filter BasketUS$ 10 - 20MOQ: 1 Unit

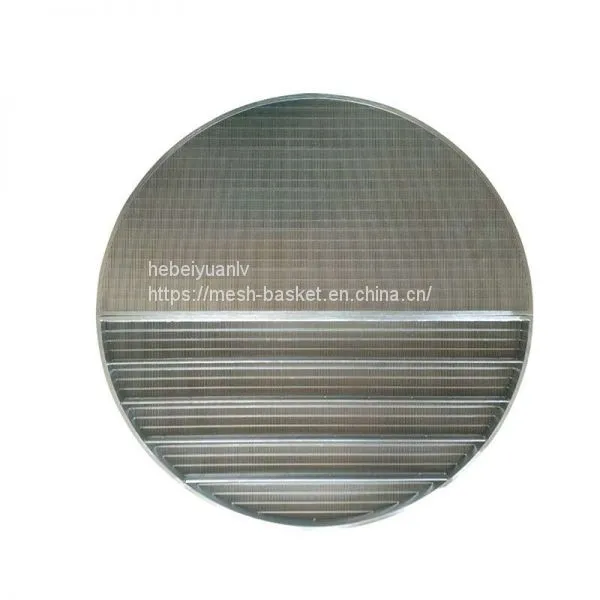

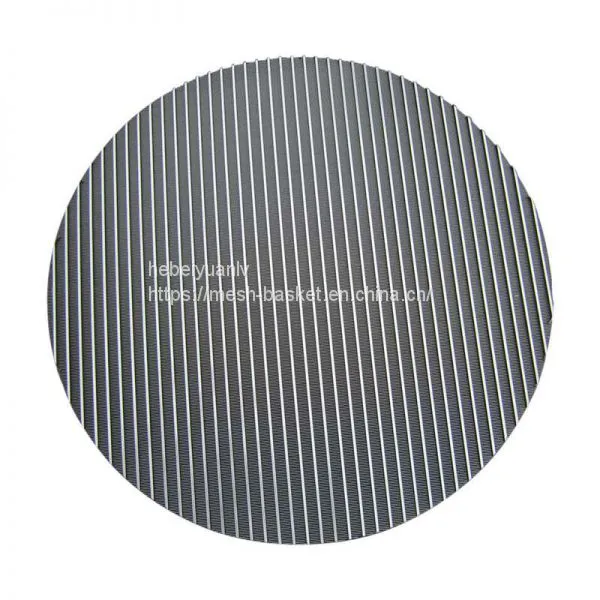

Johnson type wedge v wire lauters tun screen panel for brewing consist of shape profile wire and the longitudinal support rods. Each intersecting point the V-shape section plane can avoid blockage, and make sure of the unimpeded water. The consecutive slot has a more open area, and it can reduce the speed of the water entering to of these wires is fusion welded, so it has sturdy constriction and good mechanical property. Avoid the sand entering the screen under the great pressure, so it can filter sand better.
Advantage of Johnson Type Wedge V Wire Lauter Tun Screen Panel for Brewing
1) Continuous slot screens, stronger and more durable
2) More open area, very precise openings
3) Virtually non-clogging and reduce media abrasion
4) Easier installation and long-term operating and cost benefits
Usages of Johnson Type Wedge V Wire Lauter Tun Screen Panel for Brewing
• Lauter tun screen
• Mash tun screen
• False bottom screens
• Custom made screens for retrofit or new installations.
Specification of the Johnson Wedge V Wire Lauter Tun Screen Panel for Brewing
| Normal Name | Lauter Tun Screen, Mash Tun Screen, False Bottom Screen, Etc. |
| Diameter Range(MM) | 200mm To 2500mm. Diameter Customized |
| Normal Diameter(MM) | 29”, 30”, 35”, 37”, 40”, 45”, 47”, 59”, 63”, 74”, Etc |
| Normal Slot(MM) | 0.7mm, 0.75mm, 0.8mm, 1.0mm, customized |
| Normal Thickness (MM) | 8.5mm, 20mm. 25mm, 30mm, 40mm, 50mm, Customized. |

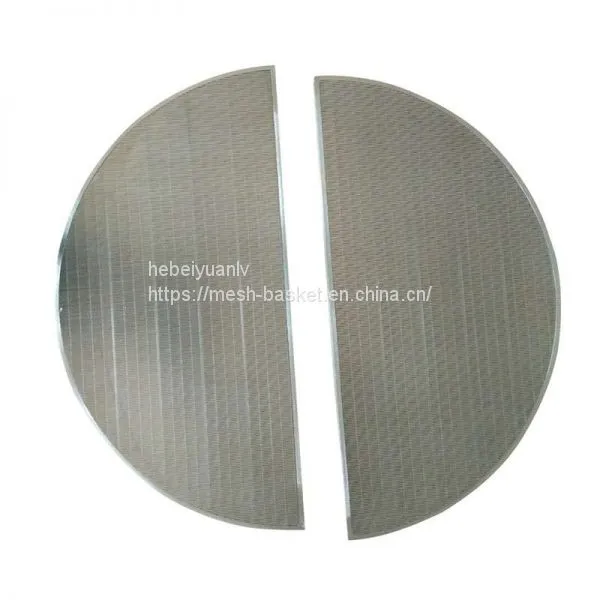

| Sections & Shape | 1 Cycle, 2 PCS, 3 PCS, 4 PCS, 6 PCS, 8 PCS. Customized |
| Wedge Wire (MM) | 2x4MM Wedge Wire, 3x5MM Wedge Wire |
| Support Rod (MM) | 3x5MM V shaped Support Rod, 3x5mm Square Support Rod |
| Strengthen Rod (MM) | Thickness and Height according to the diameter and screen thickness |
| Note | Usually customized. |
