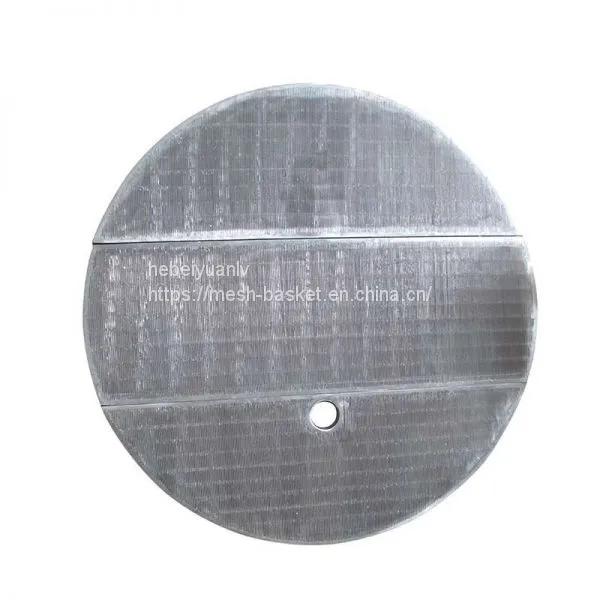

Welded ss wedge wire brewery lauter tun false bottom is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slots. Welded ss wedge wire brewery lauter tun false bottom represent the state-of-the-art I mash filtration technology for brewhouses. Our client uses only Welded ss wedge wire brewery lauter tun false bottom in all of our mash tuns. The principal behind the v-wire is that there is a large surface area contacting the mash bed, while under the contact surface the filter is a triangle in cross-section. The surface area away from the contact layer falls away very quickly, minimizing the risk of clogging the filtration screen while allowing the free flow of wort through the screen. Less efficient alternates to v-wire are laser cut, drilled or punched plates of steel that reduce efficiency and do not employ the well-known advantages of v-wire in your mash tun.
Primary tanks/kettle/brewing system uses for welded ss wedge wire brewery lauter tun false bottom
• Lauter tun screen
• Mash tun screen
• False bottom screens
• Custom made screens for retrofit or new installations
The Features of the Lauter Tun False bottom screen
• Excellent separation properties— high resistance to clogging
• V-shape provides an exceptional open area
• Easy to clean, providing reduced maintenance costs
• Superior strength, delivering longer service life
• Standard slot openings are .028” or.030”(other sizes available such like 0.7mm, 0.75mm, 0.8mm, 1.0mm, customized)
• Custom sizes and framing options
Specification of the Welded ss wedge wire brewery lauter tun false bottom
| Name | Lauter Tun Screen, Mash Tun Screen, False Bottom Screen, Etc. |
| Diameter Range(MM) | 200mm To 2500mm. Diameter Customized |
| Normal Diameter(MM) | 29”, 30”, 35”, 37”, 40”, 45”, 47”, 59”, 63”, 74”, Etc |
| Normal Slot(MM) | 0.7mm, 0.75mm, 0.8mm, 1.0mm, customized |
| Normal Thickness (MM) | 8.5mm, 20mm. 25mm, 30mm, 40mm, 50mm, Customized. |

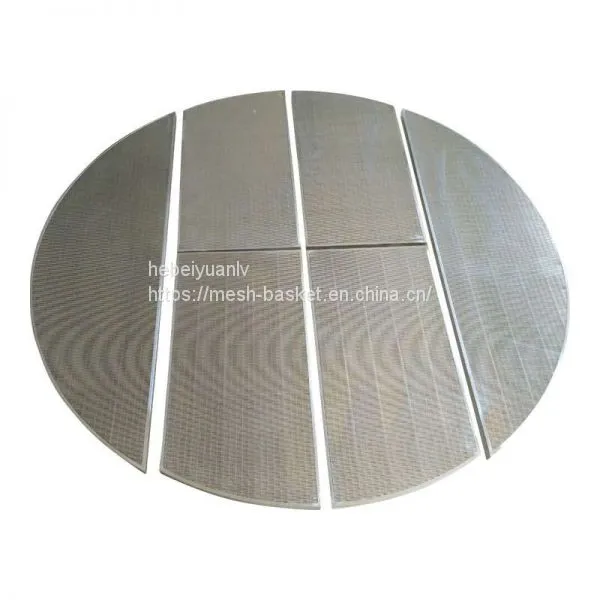

| Sections & shape | 1 Cycle, 2 PCS, 3 PCS, 4 PCS, 6 PCS, 8 PCS. Customized |

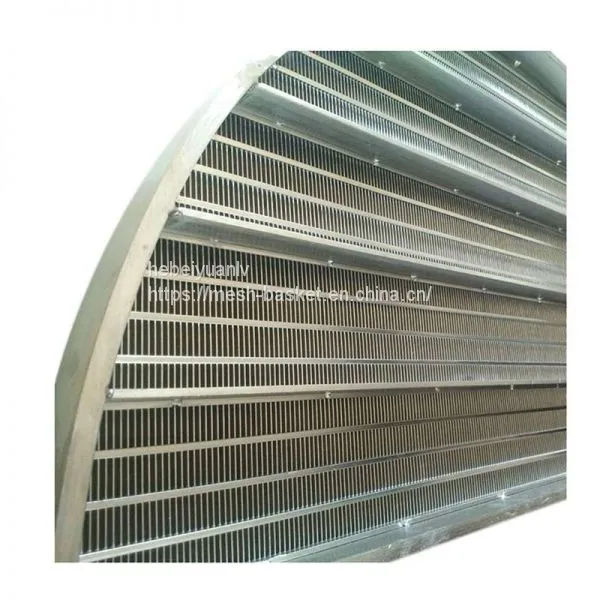

| Wedge wire(MM) | 2x4MM Wedge Wire, 3x5MM Wedge Wire |
| Support Rod(MM) | 3x5MM V-shaped Support Rod, 3x5mm Square Support RoD |
| Strengthen Rod(MM) | Thickness and Height according to the diameter and screen thickness |
| Note | Usually customized. |
