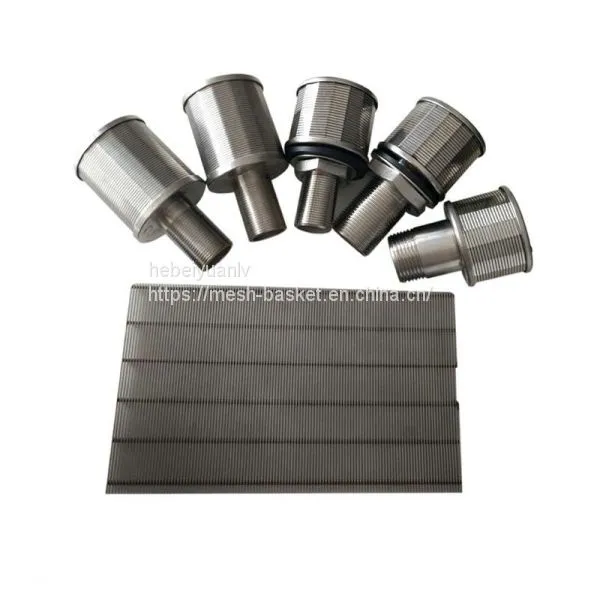

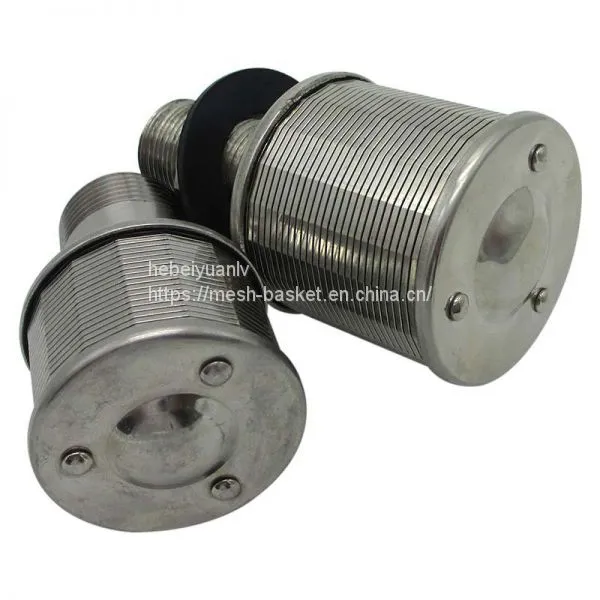

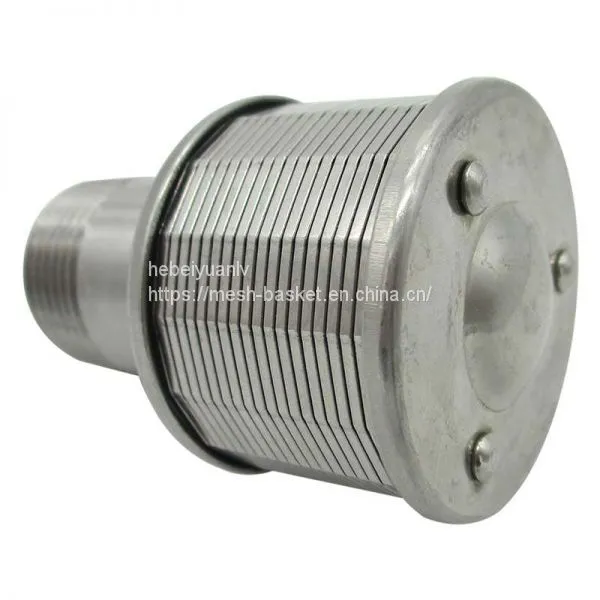

Wedge wire water filter nozzle strainer, have many called, for example, strainer nozzle, stainless steel filter nozzle, header lateral, stainless steel lateral arm, water &gas Strainers.
Water filter screen nozzle which is available with the following configurations. Vertical slot filter nozzles, horizontal slot filter nozzles, intermediate plate nozzles, long or extra long stem nozzles with quick fit or standard fitting accessories, which can be used for many different applications. These include Sewerage Treatment Plants (STP) and other urban and industrial wastewater treatment plants. There are also filters and collectors for swimming pools.
Application of Wedge Wire Water Filter Nozzle Strainer
Wedge wire water filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening,sugar mill, conversion of sea water into fresh water, the filter of food chemistry.
Feature of Wedge Wire Water Filter Nozzle Strainer
Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required
Specifications of Wedge Wire Water Filter Nozzle Strainer Supplier:
| Type | Slot (mm) |
Dimension | Flow Rating (M3/H) |
||||
| D(mm) | H(MM) | L(MM) | Thread | Fittings | |||
| Yuanlv-0.5 | 0.25 | 45 | 45 | 90/request | M,NPT, G, PT(BSPT),Z,BSP, request | SS Gasket, Rubber gasket, Nut, request |
0.5 |
| Yuanlv-1.0 | 0.25 | 53 | 45 | 90/request | 1.0 | ||
| Yuanlv-1.5 | 0.25 | 57 | 45 | 90/request | 1.5 | ||
| Yuanlv-2.0 | 0.25 | 57 | 55 | 100/request | 2.0 | ||
| Yuanlv-2.5 | 0.25 | 70 | 55 | 100/request | 2.5 | ||
| Yuanlv-3.0 | 0.25 | 70 | 70 | 120/request | 3.0 | ||
| Note | * All the above sizes are the normal size. Customized size is possible. * Yuanlv could help to design according to the application and requirement. * The nozzles customized range as below: 1. Slot range: 0.05-2mm 2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application 3. Thread according to the requirement |
||||||
