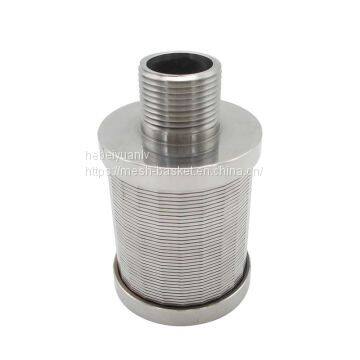

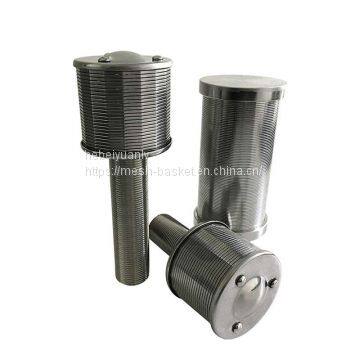

Description of Stainless Steel Filter Nozzle for Water Treatment
Materials: Stainless steel 304, 316L or custom
Application: Water treatment, resin traps, oilfield, mining, food industry, chemical industry, paper making industry, decoration.
Surface treatment: Polishing, chroming.
Product structure: Wedge wire screen, pipe, cap.
Wire diameter: 1.5x2mm, 2x3mm, etc.
Length: 0.5meters or as per your request.
Diameter: 80mm or as per your request.
Slot size: 1mm also achieved upon request.
Characteristics: High filtering accuracy, High strength, and durability.
Certificate: ISO9001: 2000
Type | Slot (mm) | Dimension | Flow Rating (M3/H) | ||||
D(mm) | H(MM) | L(MM) | Thread | Fittings | |||
Yuanlv-0.5 | 0.25 | 45 | 45 | 90/request |
M, NPT, G, PT, Z, request |
SS Gasket, Rubber gasket, Nut, or as your requirement | 0.5 |
Yuanlv-1.0 | 0.25 | 53 | 45 | 90/request | Same as above | 1.0 | |
Yuanlv-1.5 | 0.25 | 57 | 45 | 90/request | Same as above | 1.5 | |
Yuanlv-2.0 | 0.25 | 57 | 55 | 100/request | Same as above | 2.0 | |
Yuanlv-2.5 | 0.25 | 70 | 55 | 100/request | Same as above | 2.5 | |
Yuanlv-3.0 | 0.25 | 70 | 70 | 120/request | Same as above | 3.0 | |
Note | * All the above size are the normal size. Customized size is possible. * Yuanlv could help to design according to the application and requirement. * The nozzles customized range as below: 1. Slot range: 0.05-2mm 2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application 3. Thread, gasket, nut according to requirement | ||||||
Stainless Steel Filter Nozzle for Water Treatment Application
Stainless Steel Filter Nozzle used in water treatment processes namely in 'Ion Exchange' and other numerous media filter systems。This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.
