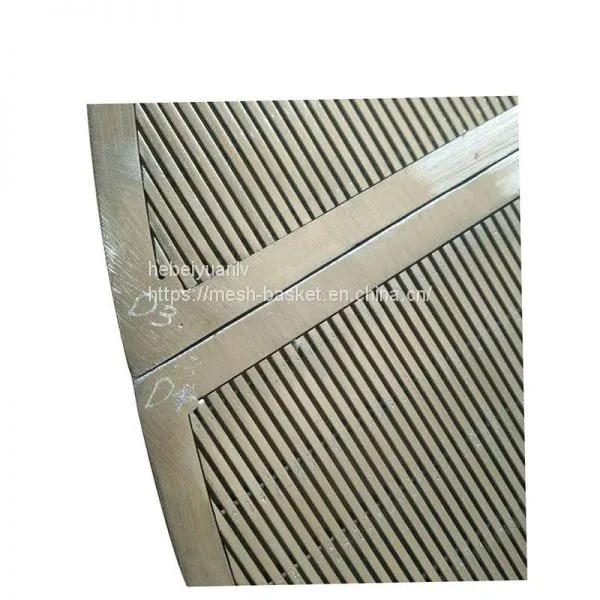

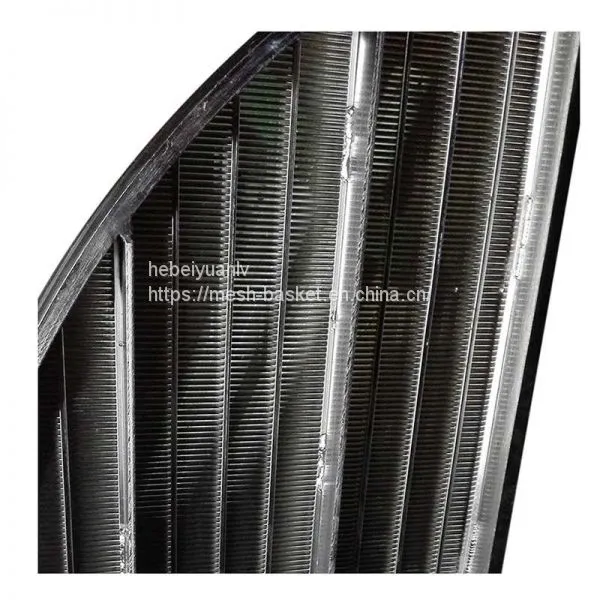

Stainless steel lauters tun screens for beer equipment consist of shape profile wire and the longitudinal support rods. Each intersecting point the V-shape section plane can avoid blockage, and make sure of the unimpeded water. The consecutive slot has a more open area, and it can reduce the speed of the water entering to of these wires is fusion welded, so it has sturdy constriction and good mechanical property. Avoid the sand entering the screen under the great pressure, so it can filter sand better.
Advantage of Stainless Steel Lauter Tun Screen for Beer Equipment
1. Continuous slot screens, stronger and more durable
2. More open area, very precise openings
3. Virtually non-clogging and reduce media abrasion
4. Easier installation and long-term operating and cost benefits
Specification of the Stainless Steel Lauter Tun Screen for Beer Equipment
| Normal Name | Lauter Tun Screen, Mash Tun Screen, False Bottom Screen, Etc. |
| Diameter Range(MM) | 200mm To 2500mm. Diameter Customized |
| Normal Diameter(MM) | 29”, 30”, 35”, 37”, 40”, 45”, 47”, 59”, 63”, 74”, Etc |
| Normal Slot(MM) | 0.7mm, 0.75mm, 0.8mm, 1.0mm, customized |
| Normal Thickness (MM) | 8.5mm, 20mm. 25mm, 30mm, 40mm, 50mm, Customized. |
| Sections & shape | 1 Cycle, 2 PCS, 3 PCS, 4 PCS, 6 PCS, 8 PCS. Customized |
| Wedge wire (MM) | 2x4MM Wedge Wire, 3x5MM Wedge Wire |
| Support Rod (MM) | 3x5MM V-shaped Support Rod, 3x5mm Square Support Rod |
| Strengthen Rod (MM) | Thickness and Height according to the diameter and screen thickness |
| Note | Usually customized. |
