Help CenterJohnson Wedge Wire Screen Pipe Strainer
Related Products
-
Wedge Wire Rotary Drum ScreenUS$ 10 - 20MOQ: 1 Unit -
SS Wedge Wire Wrapped Screen TubeUS$ 10 - 20MOQ: 1 Unit
-
Header Lateral DistributorUS$ 10 - 20MOQ: 1 Unit
-
Large Flow Rating Wedge Wire Water Header Laterals DistributorUS$ 10 - 20MOQ: 1 Unit
-
Wedge Wire Filter Distributor Lateral ScreenUS$ 10 - 20MOQ: 1 Unit

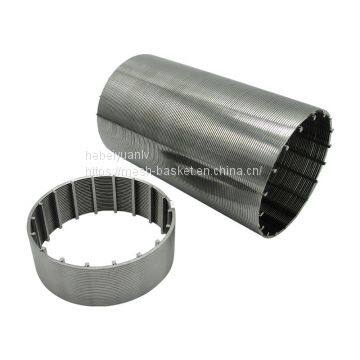

The Johnson wedge wire screen pipe strainer is composed of rib strips and V shaped wires through manufacturing on the specialized welding machines. The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure, 0.1mm slot gap, and can be select by the client in any way.
Benefits of Johnson wedge wire screen pipe strainer
V type wire, no plugged
No moving part, simple to install
Low maintenance costs
Economical and applicable type, long life
Application of Johnson wedge wire screen pipe strainer
The johnson wedge wire screen pipe is mainly used for the water-treatment, water well drilling, oil well drilling, mineral processing, coal-cleaning plant, sewage treatment and other industries, water, oil or gas filter, and other filtration equipment.
Specifications of Johnson wedge wire screen pipe strainer:
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
| OD Range | 19mm-2000mm | ||||||
| ID Range | 13mm-1981mm | ||||||
| Length Range | Up to 6000 mm | ||||||
| Slot Range | 20 micron to 3000 micron (Tolerance:+-5 micron) | ||||||
| Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5*2 | 2x3 | 2*4 | 3*5 |
| Support Rod | 1.5x2.5 2x3 |
1.5x2.5 2x3 |
1.5x2.5 2x3 |
1.8*2.5 2x3 |
2x3 2x4 3x5 3x6 3x10 4x7 |
2x4 3x5 3x6 3x10 4x7 5x6 |
3x5 3x6 3x10 4x7 5x6 5x8 |
| End Finishing | Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc | ||||||
| Note | Customized According To Requirement | ||||||
