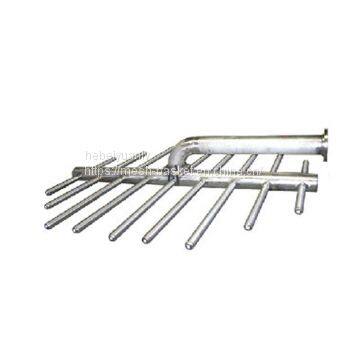

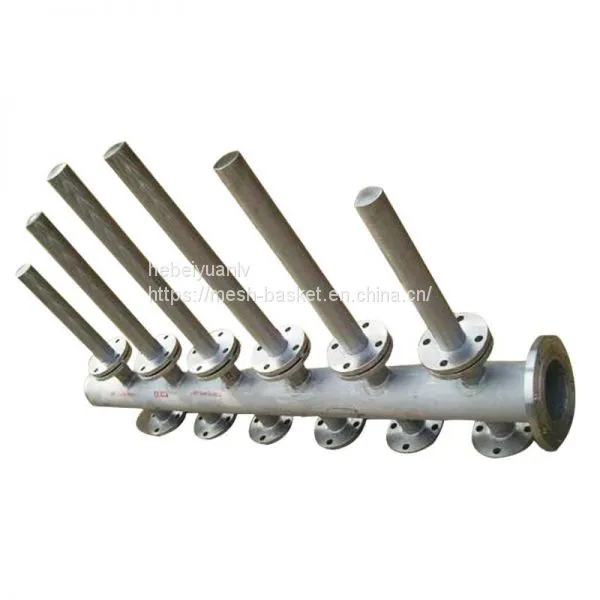

Description of Large flow rating wedge wire water header laterals distributor:
The Large flow rating wedge wire water header laterals distributor is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long lifetime, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot, and frame structure can be customized.
Advantage of the Large flow rating wedge wire water header laterals distributor
1. Uniform slot, no leakage of resin or material
2. High opening area, high flow area which can meet large flow requirement
3. Large liquid distribution area and uniform distribution
4. The diversified structure which can meet the requirements of the container
5. High-pressure tolerance of branch pipe
6. The high-quality material ensures a longer life
Application of Large flow rating wedge wire water header laterals distributor
The Large flow rating wedge wire water header laterals distributor consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.
Specifications of Large flow rating wedge wire water header laterals distributor:
| Material | SS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205, 2207, Duplex, Hastelloy, etc | ||
| Normal Lateral Tube QTY (PCS) | 4, 6, 8, 12,16, etc. According to request, actual flow rating, and application. | ||
| Lateral OD Range (mm) | 25 to 80mm, customized | ||
| Normal Header diameter (mm) | According to flow rating, thread and flange diameter, and customers’ requirement | ||
| Header and lateral connector types | Thread, Flange | ||
| Diameter Range(mm) | According to the tank diameter. (Usually 200mm shorter than tank diameter) | ||
| Slot Range(mm) | Normal slot 0.2, 0.25, 0.3, 0.35, 0.4mm.Slot according to request. | ||
| Wedge Wire(mm) | 1x2 | 1.5x2 | 2x3 |
| Support Rod (mm) | 1.5x2.52x3 | 1.8x2.52x3 | 2x32x4 |
| Note | Customized According To Requirement | ||
