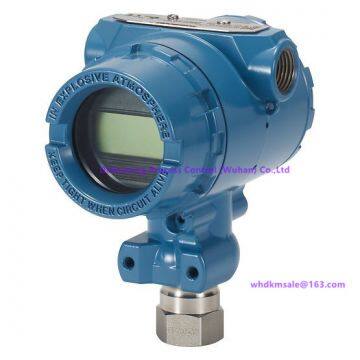

2088G2S22A2M5B4E5T1Q8HR5 Gage and Absolute Pressure Transmitter

Performance of 0.065% with high accuracy option

Rangedown Up to 50:1

Communication Protocol 4-20 mA HART?, 1-5 V Low Power HART?

Measurement Range Up to 4,000 psig (275,8 bar) Gage, Up to 4,000 psia (275,8 bar) Absolute

Process Wetted Material 316L SST, Alloy C-276

Diagnostics Basic Diagnostics

Certifications/Approvals NSF, NACE?, hazardous location, see full specs for complete list of certifications

Local Operator Interface (LOI) features straightforward menus and built-in configuration buttons for ease-of-use

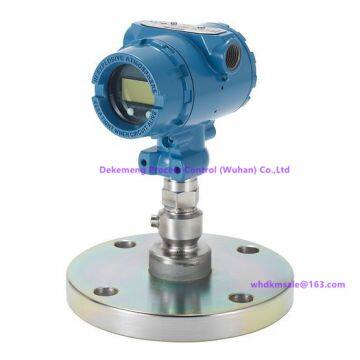

Factory-assembled and leak-checked integral manifold and remote seal solutions deliver a quick start-up

Available protocols include 4-20 mA HART and 1-5 Vdc HART Low Power for application flexibility

Lightweight, compact design allows for easy installation

Vibration effect

Less than ±0.1% of URL when tested per the requirements of IEC60770-1 field or pipeline with high vibration level (10–60 Hz 0.21 mm displacement peak amplitude/60–2000 Hz 3g)

Power supply effect

Less than ±0.005% of calibrated span per volt change in voltage at the transmitter terminals
