DS 400 Set - Stationary Dew Point Measurement in Compressed Air Systems

DS 400 Set - Stationary Dew Point Measurement in Compressed Air Systems thumbnail-3

DS 400 Set - Stationary Dew Point Measurement in Compressed Air Systems thumbnail-4

DS 400 Set - Stationary Dew Point Measurement in Compressed Air Systems thumbnail-5

DS 400 Set - Stationary Dew Point Measurement in Compressed Air Systems photo-1

DS 400 Set - Stationary Dew Point Measurement in Compressed Air Systems photo-2

DS 400 Set - Stationary Dew Point Measurement in Compressed Air Systems photo-3

DS 400 Set - Stationary Dew Point Measurement in Compressed Air Systems photo-4

DS 400 Set - Stationary Dew Point Measurement in Compressed Air Systems photo-5

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Place of Origin:

Germany

Model Number:

DS 400

Contact Supplier Request Quote Chat Now

Dekemeng Process Control (Wuhan) Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name CS

Place of Origin Germany

Model Number DS 400

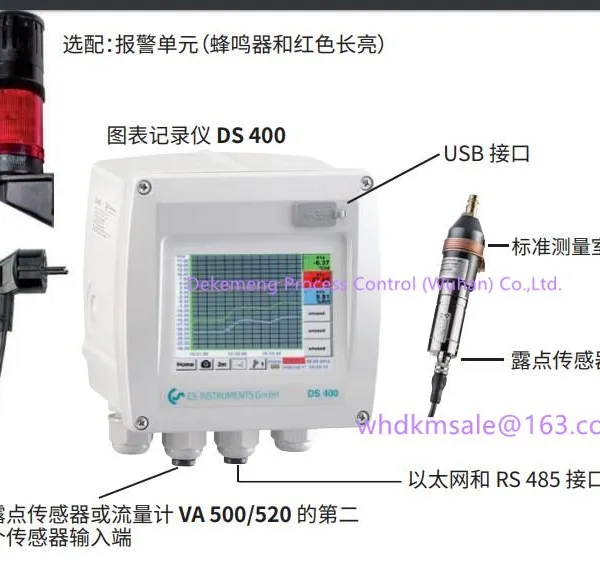

DS 400 Set - Stationary dew point measurement in compressed air systems

DS 400-Set for dew point measurement in compressed air systems

For stationary dew point monitoring of refrigeration or adsorption dryers. The touch screen graphic display enables an intuitive operation and shows the progress of the measured values. 2 alarm relays are available for monitoring of threshold values. Available either with a classic analogue output 4...20 mA or optionally with digital interfaces like Ethernet and RS 485 (Modbus protocol). As a stand-alone solution the measured data stored in the optional data logger can be read-out via USB stick and evaluated by means of the software CS Soft Basic.

Special Features of dew point measurement DS 400-Set

3.5" graphic display - easy operation with touch screen

System ready for plug-in: Everything completely wired

2 alarm contacts (230 VAC, 3 A) pre- and main alarm freely adjustable

An alarm delay can be set for each alarm relay

4...20 mA analogue output

Option: Ethernet and RS 485 interface (Modbus protocol)

Option: Webserver

Option: Integrated data logger

Recording of the dew point progression of up to 100 million measuring values

CS Soft Basic for evaluation in graphic and table form. Read-out of the data either via USB stick or via Ethernet

Measuring range:

-80...20 °Ctd or-20...50°Ctd

Accuracy:

±1Cat 50...-20Ctd±2C at -20...-50 °Ctd± 3 C at -50...-80°Ctd

Pressure range:

-1...50 bar,special version350 bar

DESCRIPTION

ORDER NO

Dew point monitoring DS 400 for adsorption dryers (-80...+20°Ctd)

0601 0510

Dew point monitoring DS 400 for refrigeration dryers (-20...+50 °Ctd)

0601 0512

ptions:

option: Integrated data logger for 100 million measured values

Z500 4002

Option: Integrated Ethernet and RS 485 interface

Z500 4004

Option: Integrated webserver

Z500 4005

Option: 2 additional sensor inputs for analogueue sensors (pressure

Z500 4001

sensors, temperature sensors etc.)

Further accessories

CS Basic - data evaluation graphically and in table form - reading of themeasured data via USB or Ethernet, licence for 2 workstations

0554 8040

Alarm unit mounted to the wall housing

Z500 0003

Alarm unit for external mounting with 5 m cable

Z500 0004

alibration and adjustment

Precision calibration at -40°Ctd or +3°Ctd incl.ISO certificate

0699 3396

Our long-term hands-on experience in measurement and control technology was implemented in thenew DS 400.

From recording of the measured data, automatic sensor identification，indication on a big colourscreen, alerting, storage up to remote read-out via web server, all that is possible with DS 400.Bymeans of the Cs-Soft, software alarms can be sent via SMs or e-mail.

On the big 3.5' colour screen with touch panel, all information is available at a glance.

The operation is very easy.All measured values, measured curves and threshold exceeding's areindicated. The progression of the curve, since the beginning of the measurement, can be viewed byan easy slide of the finger.

The huge difference to ordinary paperless chart recorders reveals in the easy initiation as well as inthe evaluation of the measured data.All sensors are identified directly and powered by DS 400.Everything is matched and tuned.

Product Tags: DS 400 , dew point measurement , dew point meter
