DP 500 - Portable Dew Point Meter With Integrated Data Logger

DP 500 - Portable dew point meter with integrated data logger

DP 500 - Portable dew point meter for compressed air and gases

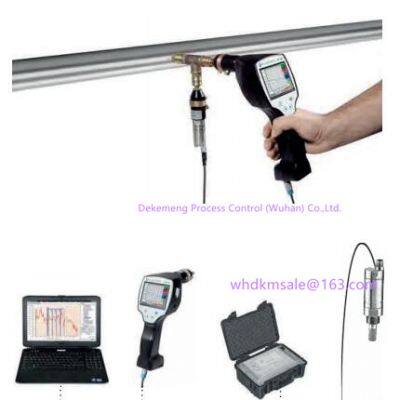

The dew point meter DP 500 with data logger is the ideal portable service instrument for dew point measurement for all types of dryers down to -80°Ctd dew point. The 3.5“ graphic display with touch screen makes the operation very easy. The graphic indication of coloured measuring curves is unique. Ideal for measurement of the current dew point and for graphic indication of the dew point curve/ the switching behavior of the dryer over a longer period of time.

Up to 100 million measured values can be stored with date and measuring site name. The measured data can be transferred to the computer via USB stick. The data can be evaluated comfortably by means of the software CS Soft Basic. Measured data and service reports can be issued easily and quickly.

Special features of dew point measurement DP 500

Percise dew point measurement down to -80°Ctd

Quick response time

3.5" graphic display / easy operation via touch screen

Integrated data logger for storage of the measured values

USB interface for reading out via USB stick

Calculates all necessary moisture parameters like g/m³, mg/m³, ppm V/V, g/kg, °Ctdatm

International: Up to 8 languages selectable

Set DP 500 in a case - consisting of:

0600 0500

- Portable dew point meter DP 500 for compressed air and gases

0560 0500

- Mobile measuring chamber up to 16 bar

0699 4490

. Difusion-tight PTFE hose with quick coupling, length 1 m

0554 0003

- Power supply for DP 500/DP 510

0554 0009

- Control and calibration set 11.3% RH

0554 0002

- Quick-lock coupling

0530 1101

- Dry container for CS dew point sensors

0699 2500

- Transportation case (small) for DP 500

0554 6500

Set DP 510 in a case - consisting of:

0600 0510

- Mobile dew point meter DP 510 with one additional input for external

0560 0510

sensors

- Mobile measuring chamber up to 16 bar

0699 4490

- Difusion-tight PTFE hose with quick coupling, length 1 m

0554 0003

- Power supply for DP 500/DP 510

0554 0009

- Control and calibration set 11.3% RH

0554 0002

- Quick-lock coupling

0530 1101

- Dry container for CS dew point sensors

0699 2500

- Transportation case (large) for DP 510 as well as other sensors

0554 6510

Furter options, not included in the set:

Option: .Mathematics calculation function* for 4 freely selectable chan-| Z500 5107

nels, (virtual channels). addition,subtraction, division, multiplication

Option: .Totaliser function for analogue signals"

Z500 5106

CS Basic - data evaluation graphically and in table form - reading of

0554 8040

the measured data via USB or Ethernet, licence for 2 workstations

Precision calibration at -40 °Ctd or 3 °Ctd with ISO certificate

0699 3396

Additional calibration point freely selectable in the range between

0700 7710

-80... +20 °Ctd

High pressure measuring chamber up to 350 bar

0699 3590

Measuring chamber for atmospheric dew point

0699 3690

Measuring chamber for granulate dryers with minimum overpressure

0699 3490

Portable dew point meter DP 510 for compressed air and gases

0560 0512

(high pressure version up to 350 bar)

Portable dew point meter DP 500 for compressed air and gases

0560 0501
