FA 510/515 - Dew point sensor for refrigeration dryers
Dew point sensor from -20 to 50°Ctd for the typical use in refrigeration dryers - FA 510/515
In addition to the previously common 4...20 mA analogue output the new generation of dew point sensors have a digital RS 485 interface (Modbus-RTU). All values like e. g. dew point, temperature, absolute humidity ... which are measured and calculated by the dew point sensor can be retrieved via the Modbus protocol.
Compared with the previous models the sensorics and evaluation electronics have been improved once again, especially the integrated temperature compensation. This means: Increased accuracy at different ambient temperatures and an improved resolution of the sensor signal. Like the previous models the new dew point sensors have an excellent long-term stability and show reliable measured values. The sensor element is insensitive against condensation and due to the serial sintered cap made of stainless steel it is protected against direct contact with soiled particles.
Special features of FA 510/515:
Analogue output 4...20 mA
Precise, long-term stability
Quick response time
Measuring range -20...50°Ctd
NEW: Modbus-RTU interface

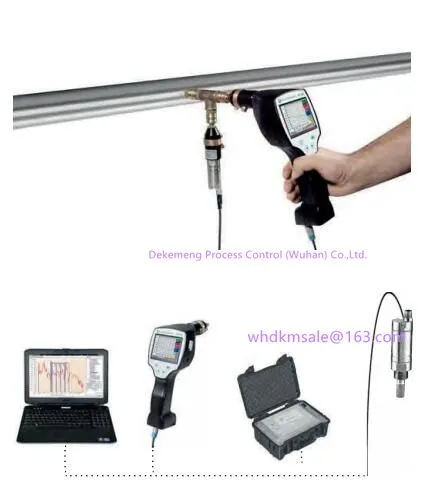

Sensor diagnosis on site by means of hand-held instrument or CS Service Software
Order no.
Description
o699.0515
FA 515 dew point sensor (-80...-20Ctd)
0699.0517
FA 515 dew point sensor (-20...50 °Ctd)
o699.3390
Standard measuring chamber for compressed air up to 16 bar
0699.3690
Measuring chamber for atmospheric dew point
cs Service Software for FAVA sensors incl.PC connection set,
0554 2007
USB connection and interface adapter to the sensor
0554.0002
Control and calibration set 11.3 % RH
0554.0004
Control and calibration set 33 % RH
0554.0005
Control and calibration set 75.3 % RH
0553.0104
Connection cable for FA 515, length: 5 m
0553.0105
Connection cable for FA 515,length: 10 m
3200.0003
Precision calibration at 0 °Ctd and 10 °Ctd incl.ISO certificate
0699.3396
Precision calibration at -40°Ctd incl.ISO certificate
