Rosemount 3051L Level Transmitter

Name: Rosemount 3051L Level Transmitter
Brand: Rosemount
SKU: 144866156
Availability: InStock

Dekemeng Process Control (Wuhan) Co.,Ltd.

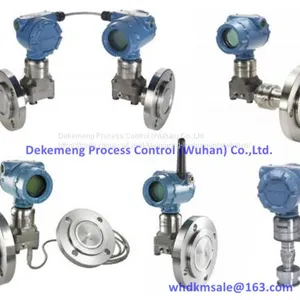

Rosemount 3051L Level Transmitter thumbnail-1

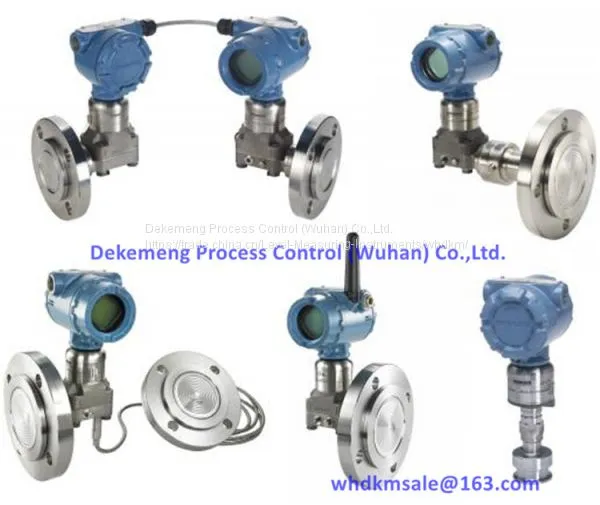

Rosemount 3051L Level Transmitter photo-1

US$ 1 - 1200 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

Rosemount

Place of Origin:

China

Model Number:

3051L

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

10 days

Product Details
Company Profile
Contact Us

Brand Name Rosemount

Place of Origin China

Model Number 3051L

Rosemount 3051L Level Transmitter

Introduction

With field-proven reliability, the Rosemount 3051L Level Transmitter is a fully-integrated level solution. This safety-certified transmitter allows for direct mounting or a Tuned-System assembly for optimized performance that reduces temperature effects by 10-20% and improves response time by over 80% versus traditional installations. Power advisory diagnostics enable this device to monitor electrical loop integrity and the Local Operator Interface (LOI) offers on-site commissioning.

Specifications

Max. Operating Pressure

Up to 300 psi (20,68 bar)

Process Temperature Range

Based on fill fluid - Maximum 401°F (205°C), Minimum -157°F (-105°C)

Communication Protocol

4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V Low Power HART®

Seal System Type

Direct Mount, Tuned-System

Transmitter Connection

Welded-Repairable

Process Connection

Flanged: ANSI/ASME, EN/DIN, JIS

Process Wetted Material

316L SST, Alloy C-276, Tantalum

Diagnostics

Basic Diagnostics, Power Advisory Diagnostics

Certifications/Approvals

SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE®, hazardous location, see full specs for complete list of certifications

Features

Power advisory diagnostics proactively monitor electrical loop integrity

Local Operator Interface (LOI) for simple, local commissioning on-site without the use of extra tools

Tuned-System Level assembly and direct mounting produce optimal performance for level applications

Factory-assembled and out-of-the-box ready level solution eliminates on-site assembly, testing and calibration

Optimized seal system construction ensures a quality measurement in harsh process conditions

SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations

Common models

3051L2AG0MAMA11AAM5F1

3051L3AG0MAMA11AAM5F1

3051L4AG0MAMA11AAM5F1

3051L2AH0MAMA11AAM5F1

3051L3AH0MAMA11AAM5F1

3051L4AH0MAMA11AAM5F1

3051L2AJ0MAMA11AAM5F1

3051L3AJ0MAMA11AAM5F1

3051L4AJ0MAMA11AAM5F1

3051L2AA0MAMA11AAM5F1

3051L3AA0MAMA11AAM5F1

3051L4AA0MAMA11AAM5F1

3051L2AB2MAMA11AAM5F1

3051L3AB2MAMA11AAM5F1

3051L4AB2MAMA11AAM5F1

3051L2AC6MAMA11AAM5F1

3051L3AC6MAMA11AAM5F1

3051L4AC6MAMA11AAM5F1

3051L2AD4MAMA11AAM5F1

3051L3AD4MAMA11AAM5F1

3051L4AD4MAMA11AAM5F1

3051L2AG0MAMA21AAM5F1

3051L3AG0MAMA21AAM5F1

3051L4AG0MAMA21AAM5F1

3051L2AH0MAMA21AAM5F1

3051L3AH0MAMA21AAM5F1

3051L4AH0MAMA21AAM5F1

3051L2AJ0MAMA21AAM5F1

3051L3AJ0MAMA21AAM5F1

3051L4AJ0MAMA21AAM5F1

3051L2AA0MAMA21AAM5F1

3051L3AA0MAMA21AAM5F1

3051L4AA0MAMA21AAM5F1

3051L2AB2MAMA21AAM5F1

3051L3AB2MAMA21AAM5F1

3051L4AB2MAMA21AAM5F1

3051L2AC6MAMA21AAM5F1

3051L3AC6MAMA21AAM5F1

3051L4AC6MAMA21AAM5F1

3051L2AD4MAMA21AAM5F1

3051L3AD4MAMA21AAM5F1

3051L4AD4MAMA21AAM5F1

3051L2AG0MAMA2BAAM5F1

3051L3AG0MAMA2BAAM5F1

3051L4AG0MAMA2BAAM5F1

3051L2AH0MAMA2BAAM5F1

3051L3AH0MAMA2BAAM5F1

3051L4AH0MAMA2BAAM5F1

3051L2AJ0MAMA2BAAM5F1

3051L3AJ0MAMA2BAAM5F1

3051L4AJ0MAMA2BAAM5F1

3051L2AA0MAMA2BAAM5F1

3051L3AA0MAMA2BAAM5F1

3051L4AA0MAMA2BAAM5F1

3051L2AB2MAMA2BAAM5F1

3051L3AB2MAMA2BAAM5F1

3051L4AB2MAMA2BAAM5F1

3051L2AC6MAMA2BAAM5F1

3051L3AC6MAMA2BAAM5F1

3051L4AC6MAMA2BAAM5F1

3051L2AD4MAMA2BAAM5F1

3051L3AD4MAMA2BAAM5F1

3051L4AD4MAMA2BAAM5F1

Product Tags: Level Transmitter , 3051L Level Transmitter , 3051L
