Home > Products > Submersible pump > YW Submerged Sewage Wastewater Pump

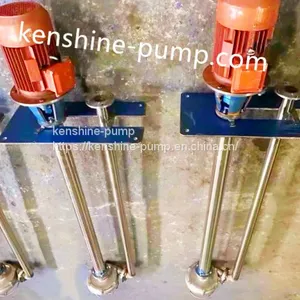

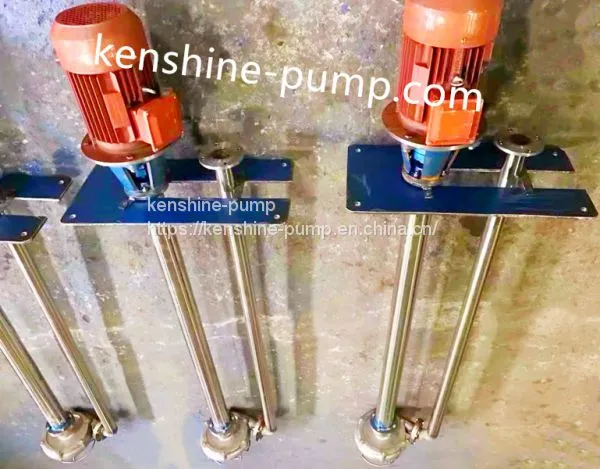

YW Submerged Sewage Wastewater Pump
- Shanghai
- T/T
- 7 days
You May Like
Product Details
| Brand Name | kenshine-pump | Place of Origin | China | |
| Model Number | YW100-100-25 | Application | Sewage | |
| Fuel | Other, electric motor | Power | Electric | |
| Usage | Water | Theory | Centrifugal Pump | |
| Standard or Nonstandard | Standard | Structure | Single-stage Pump | |
| Pressure | Low Pressure |
Product Description
YW submerged sewage wastewater pump is used to transport sewage, wastewater with solid particles and fiber and impurities etc. The pump has no blocking, no winding and is widely used to convey industrial wastewater, municipal sewage. Also, YW immersible sewage pump is used as a drainage pump, pulp pump, filtration, flushing, condensing and circulating pump, irrigation pump and other sewage treatment occasions. It can also be used for pumping clean water.
unique single channel impeller (no clogging), dynamic seal adopts two groups of special materials of the hard alloy carbide mechanical seal device, high efficiency, energy saving ,long service life.
QW submersible sewage pump is especially suitable for frequent movement or temporary emergency occasions, do not need to be fixed installation, rubber hose is connected to the pump outlet pipe and put pump into the water bottom to start the pump easily.
GW pipeline type can be used for general high-rise buildings, pipeline pressurized sewage conveyance, but also suitable for drainage pumps, filtration, washing, condensing and circulating pumps.
LW vertical model can be moved, can also be fixed installation, suitable for construction, farmland drainage and irrigation, enterprises and institutions in the process of sewage pumping and delivery, but also can be used pulp pump, irrigation pump.
YW subaqueous type is suitable to be installed on the bracket of pool or water tank. The length of the pump body submerged in the subaqueous type is 1-2.5 meters. It is suitable for conveying all kinds of sewage and industrial liquid containing granular block medium in fixed or mobile occasions.
| model | outlet | flow | head | motor power(kw) | speed(rpm) | efficiency | impurities into liquids (mm) | |
| (mm) | (m3/h) | (m) | (%) | solid | fiber | |||
| diameter | length | |||||||
| 25-8-22 | 25 | 8 | 22 | 1.1 | 2900 | 47 | 15 | 125 |
| 32-12-15 | 32 | 12 | 15 | 1.1 | 2900 | 58 | 20 | 150 |
| 40-15-30 | 40 | 15 | 30 | 2.2 | 2900 | 48 | 20 | 150 |
| 50-20-7 | 50 | 20 | 7 | 0.75 | 1450 | 62 | 30 | 250 |
| 50-20-15 | 50 | 20 | 15 | 1.5 | 2900 | 54 | 30 | 250 |
| 50-15-25 | 50 | 15 | 25 | 2.2 | 2900 | 51 | 30 | 250 |
| 50-18-30 | 50 | 18 | 30 | 3 | 2900 | 51 | 30 | 250 |
| 50-20-40 | 50 | 20 | 40 | 7.5 | 2900 | 53 | 30 | 250 |
| 65-25-15 | 65 | 25 | 15 | 2.2 | 2900 | 52 | 38 | 300 |
| 65-25-30 | 65 | 25 | 30 | 4 | 2900 | 58 | 38 | 300 |
| 65-35-50 | 65 | 35 | 50 | 11 | 2900 | 60 | 38 | 300 |
| 65-35-60 | 65 | 35 | 60 | 15 | 2900 | 60 | 38 | 300 |
| 80-40-7 | 80 | 40 | 7 | 2.2 | 1450 | 50 | 45 | 400 |
| 80-40-15 | 80 | 40 | 15 | 4 | 1450 | 45 | 45 | 400 |
| 80-65-25 | 80 | 65 | 25 | 7.5 | 2900 | 56 | 45 | 400 |
| 100-85-10 | 100 | 85 | 10 | 4 | 1450 | 62 | 60 | 500 |
| 100-85-20 | 100 | 85 | 20 | 7.5 | 1450 | 71 | 60 | 500 |
| 100-100-10 | 100 | 100 | 10 | 5.5 | 1450 | 70 | 60 | 500 |
| 100-100-25 | 100 | 100 | 25 | 15 | 2900 | 61 | 60 | 500 |
| 100-100-35 | 100 | 100 | 35 | 18.5 | 1450 | 67 | 60 | 500 |
| 125-130-20 | 125 | 130 | 20 | 15 | 1450 | 68 | 65 | 600 |
| 150-180-15 | 150 | 180 | 15 | 15 | 1450 | 69 | 70 | 600 |
| 150-180-20 | 150 | 180 | 20 | 18.5 | 1450 | 72 | 70 | 600 |
| 150-180-25 | 150 | 180 | 25 | 22 | 1450 | 67 | 70 | 600 |
| 150-180-30 | 150 | 180 | 30 | 30 | 1450 | 74 | 70 | 600 |
| 200-300-7 | 200 | 300 | 7 | 11 | 980 | 75 | 70 | 700 |
| 200-300-15 | 200 | 300 | 15 | 22 | 1450 | 71 | 70 | 700 |
| 200-250-22 | 200 | 250 | 22 | 30 | 1450 | 69 | 70 | 700 |
| 200-350-25 | 200 | 350 | 25 | 37 | 1450 | 73 | 80 | 800 |
| 250-600-9 | 250 | 600 | 9 | 30 | 980 | 78 | 80 | 800 |
| 250-600-12 | 250 | 600 | 12 | 37 | 1450 | 76 | 80 | 800 |
| 250-600-15 | 250 | 600 | 15 | 45 | 1450 | 73 | 110 | 800 |
| 300-500-15 | 300 | 500 | 15 | 45 | 1450 | 66 | 110 | 800 |
