Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > WQB Ex Proof Submersible Sewage Pump
US$ 550 - 5000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
kenshine-pump
Place of Origin:
China
Model Number:
150WQB100-25-15
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
WQAS Submersible Sewage Pump With Semi-open Spiral Cutting ImpellerUS$ 330 - 3000MOQ: 1 Set -
WQR High Temperature Sewage Submersible PumpUS$ 850 - 5000MOQ: 1 Set
-
ZJQ Submersible Sand Mud PumpUS$ 950 - 7000MOQ: 1 Set
-
QJ,QJD Stainless Steel Multistage Deep Well Submersible PumpUS$ 350 - 3000MOQ: 1 Set
-
WQ Sewage Effluent Water PumpUS$ 350 - 6000MOQ: 1 Set
Brand Name
kenshine-pump
Place of Origin
China
Model Number
150WQB100-25-15
Application
Sewage
Fuel
Other, electric motor
Power
Electric
Usage
Other, wastewataer discharge
Theory
Centrifugal Pump
Standard or Nonstandard
Standard
Structure
Single-stage Pump
Pressure
Low Pressure

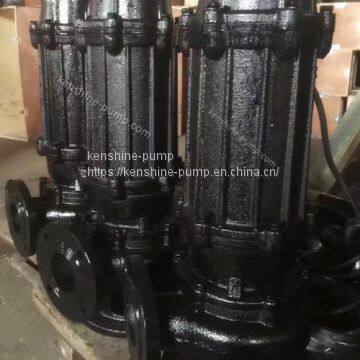

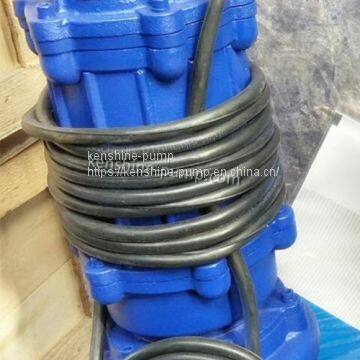

WQB Ex proof submersible sewage pump is the Ex proof pump developed on the base of WQ Submersible sewage pump. Ex proof performance is in accordance with GB3836 1-2010 explosive environment with Ex proof standard ExDIIBT4/CT4.
WQB Ex proof submersible sewage pump is used for sewage discharge in IIB/IIC factory where the temperature group is T1-T4 of combustible gas and explosible mixture of steam and air. WQB Ex proof submersible sewage pump is suitable for coal chemical industry, petrochemical industry, municipal engineering, urban engineering, hospitals, hotels, residential areas and other places.
Ex proof class: ExDIIBT4/CT4
Motor;380V,50HZ,3PHASES
Medium temperature:0-40Degree Celsius
Medium PH value:5-9
Maximum depth:20m
Medium weight is not more than 110kg/m3
| Model | Caliber | Flow | Head | Motor power | Speed | Efficiency |
| mm | m3/h | m | KW | r/min | % | |
| QWB25-8-22-1.1 | 25 | 8 | 22 | 1.1 | 2825 | 38.5 |
| QWB32-12-15-1.1 | 32 | 12 | 15 | 1.1 | 2825 | 40 |
| QWB40-15-15-1.5 | 40 | 15 | 15 | 1.5 | 2840 | 45.1 |
| QWB40-15-30-2.2 | 40 | 15 | 30 | 2.2 | 2840 | 48 |
| QWB50-20-7-0.75 | 50 | 20 | 7 | 0.75 | 1390 | 54 |
| QWB50-10-10-0.75 | 50 | 10 | 10 | 0.75 | 1390 | 56 |
| QWB50-20-15-1.5 | 50 | 20 | 15 | 1.5 | 2840 | 55 |
| QWB50-15-25-2.2 | 50 | 15 | 25 | 2.2 | 2840 | 56 |
| QWB50-18-30-3 | 50 | 18 | 30 | 3 | 2880 | 58 |
| QWB50-25-32-5.5 | 50 | 25 | 32 | 5.5 | 2900 | 53 |
| QWB50-20-40-7.5 | 50 | 20 | 40 | 7.5 | 2900 | 55 |
| QWB65-25-15-2.2 | 65 | 25 | 15 | 2.2 | 2840 | 52 |
| QWB65-37-13-3 | 65 | 37 | 13 | 3 | 2880 | 55 |
| QWB65-25-30-4 | 65 | 25 | 30 | 4 | 2890 | 58 |
| QWB65-30-40-7.5 | 65 | 30 | 40 | 7.5 | 2900 | 56 |
| QWB65-35-50-11 | 65 | 35 | 50 | 11 | 2930 | 60 |
| QWB65-35-60-15 | 65 | 35 | 60 | 15 | 2930 | 63 |
| QWB80-40-7-2.2 | 80 | 40 | 7 | 2.2 | 1420 | 52 |
| QWB80-43-13-3 | 80 | 43 | 13 | 3 | 2880 | 50 |
| QWB80-40-15-4 | 80 | 40 | 15 | 4 | 2890 | 57 |
| QWB80-65-25-7.5 | 80 | 65 | 25 | 7.5 | 2900 | 56 |
| QWB100-80-10-4 | 100 | 80 | 10 | 4 | 1440 | 62 |
| QWB100-110-10-5.5 | 100 | 110 | 10 | 5.5 | 1440 | 66 |
| QWB100-100-15-7.5 | 100 | 100 | 15 | 7.5 | 1440 | 67 |
| QWB100-85-20-7.5 | 100 | 85 | 20 | 7.5 | 1440 | 68 |
| QWB100-100-25-11 | 100 | 100 | 25 | 11 | 1460 | 65 |
| QWB100-100-30-15 | 100 | 100 | 30 | 15 | 1460 | 66 |
| QWB100-100-35-18.5 | 100 | 100 | 35 | 18.5 | 1470 | 65 |
| QWB125-130-15-11 | 125 | 130 | 15 | 11 | 1460 | 62 |
| QWB125-130-20-15 | 125 | 130 | 20 | 15 | 1460 | 63 |
| QWB150-145-9-7.5 | 150 | 145 | 9 | 7.5 | 1440 | 63 |
| QWB150-180-15-15 | 150 | 180 | 15 | 15 | 1460 | 65 |
| QWB150-180-20-18.5 | 150 | 180 | 20 | 18.5 | 1470 | 75 |
| QWB150-180-25-22 | 150 | 180 | 25 | 22 | 1470 | 76 |
| QWB150-130-30-22 | 150 | 130 | 30 | 22 | 1470 | 75 |
| QWB150-180-30-30 | 150 | 180 | 30 | 30 | 1470 | 73 |
| QWB150-200-30-37 | 150 | 200 | 30 | 37 | 1480 | 70 |
| QWB200-300-7-11 | 200 | 300 | 7 | 11 | 970 | 73 |
| QWB200-250-11-15 | 200 | 250 | 11 | 15 | 970 | 74 |
| QWB200-400-10-22 | 200 | 400 | 10 | 22 | 1470 | 76 |
| QWB200-400-13-30 | 200 | 400 | 13 | 30 | 1470 | 73 |
| QWB200-250-15-18.5 | 200 | 250 | 15 | 18.5 | 1470 | 72 |
| QWB200-300-15-22 | 200 | 300 | 15 | 22 | 1470 | 73 |
| QWB200-250-22-30 | 200 | 250 | 22 | 30 | 1470 | 71 |
| QWB200-350-25-37 | 200 | 350 | 25 | 37 | 1980 | 75 |
| QWB200-400-30-45 | 200 | 400 | 30 | 45 | 1480 | 70 |
| QWB250-600-9-30 | 250 | 600 | 9 | 30 | 980 | 74 |
| QWB250-600-12-37 | 250 | 600 | 12 | 37 | 1480 | 78 |
| QWB250-600-15-45 | 250 | 600 | 15 | 45 | 1480 | 75 |
| QWB250-600-20-55 | 250 | 600 | 20 | 55 | 1480 | 73 |
| QWB250-600-25-75 | 250 | 600 | 25 | 75 | 1480 | 73 |
| QWB250-800-12-45 | 250 | 800 | 12 | 45 | 980 | 76 |
| QWB300-500-15-45 | 300 | 500 | 15 | 45 | 980 | 70 |
| QWB300-800-15-55 | 300 | 800 | 15 | 55 | 980 | 73 |
| QWB300-600-20-55 | 300 | 600 | 20 | 55 | 980 | 75 |
| QWB300-800-20-75 | 300 | 800 | 20 | 75 | 980 | 78 |
| QWB300-950-20-90 | 300 | 950 | 20 | 90 | 980 | 80 |
| QWB300-1000-25-110 | 300 | 1000 | 25 | 110 | 980 | 82 |
| QWB350-1100-10-55 | 350 | 1100 | 10 | 55 | 980 | 84.5 |
| QWB350-1500-15-90 | 350 | 1500 | 15 | 90 | 980 | 82.5 |
| QWB350-1200-18-90 | 350 | 1200 | 18 | 90 | 980 | 83.1 |
| QWB350-1100-28-132 | 350 | 1100 | 28 | 132 | 740 | 83.2 |
| QWB350-1000-36-160 | 350 | 1000 | 36 | 160 | 740 | 78.5 |
| QWB350-1500-10-75 | 400 | 1500 | 10 | 75 | 980 | 82.1 |
| QWB400-2000-15-132 | 400 | 2000 | 15 | 132 | 740 | 85.5 |
| QWB400-1700-22-160 | 400 | 1700 | 22 | 160 | 740 | 82.1 |
| QWB400-1500-26-160 | 400 | 1500 | 26 | 160 | 740 | 83.5 |
| QWB400-1700-30-200 | 400 | 1700 | 30 | 200 | 740 | 83.5 |
| QWB400-1800-32-250 | 400 | 1800 | 32 | 250 | 740 | 82.1 |
