WQ Sewage Effluent Water Pump

WQ Sewage Effluent Water Pump thumbnail-1
WQ Sewage Effluent Water Pump thumbnail-2

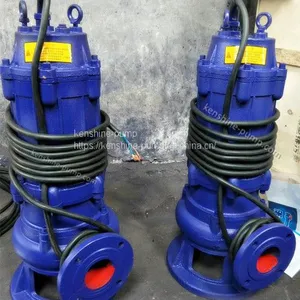

WQ Sewage Effluent Water Pump thumbnail-3
WQ Sewage Effluent Water Pump thumbnail-4
WQ Sewage Effluent Water Pump thumbnail-5
WQ Sewage Effluent Water Pump photo-1
WQ Sewage Effluent Water Pump photo-2
WQ Sewage Effluent Water Pump photo-3
WQ Sewage Effluent Water Pump photo-4
WQ Sewage Effluent Water Pump photo-5
US$ 350 - 6000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
kenshine-pump
Place of Origin:
China
Model Number:
WQ100-100-15-7.5
Contact Supplier Request Quote Chat Now
Kenshine-pump
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name kenshine-pump
Place of Origin China
Model Number WQ100-100-15-7.5
Application Sewage
Fuel Other, electric motor
Power Electric
Usage Other, wastewater drainage
Theory Centrifugal Pump
Standard or Nonstandard Standard
Structure Single-stage Pump
Pressure Low Pressure

WQ Sewage effluent water pump is used for discharge and delivery of silt, wastewater, dirty water and municipal sewage with solid and various long fibers (including corrosive and corrosive media). WQ sewage water pump is small in size, compact in structure and high in efficiency. It can automatically control the water level according to users' requirements. It can be equipped with automatic protection device, control cabinet and automatic installation system of double guide rail.

WQ Sewage submersible pump is widely used in Municipal engineering, industry, hospital, construction, hotel, restaurant and other industries etc.

Impeller with big flow channel

In order to ensure the smooth passage of dirt, it is necessary to increase the width of the impeller's flow surface. For small pumps, single (double) flow channel is used, which is similar to a bend with the same section size and has very good flow characteristics. It avoids the blockage and entanglement caused by water flow at low speed. The unique design of the impeller passage, with a reasonable volute chamber, so that sewage in the paper, textiles, garbage bags and other materials can freely pass through. Impeller is tested by dynamic and static balance and has no vibration.

model outlet (mm) Q                (m3/h) H (m) power (kw) speed (rpm) Efficiency (%)
25 WQ 8-22-1.1 25 8 22 1.1 2900 38.5
32 WQ 12-15-1.1 32 12 15 1.1 2900 40
40 WQ 15-15-1.5 40 15 15 1.5 2900 45.1
40 WQ 15-30-2.2 40 15 30 2.2 2900 48
50 WQ 20-7-0.75 50 20 7 0.75 2900 54
50 WQ 10-10-0.75 50 10 10 0.75 2900 56
50 WQ 20-15-1.5 50 20 15 1.5 2900 55
50 WQ 15-25-2.2 50 15 25 2.2 2900 56
50 WQ 25-20-2.2 50 25 20 2.2 2900 56
50 WQ 18-30-3 50 18 30 3 2900 58
50 WQ 25-32-5.5 50 25 32 5.5 2900 53
50 WQ 20-40-7.5 50 20 40 7.5 2900 55
65 WQ 25-15-2.2 65 25 15 2.2 2900 52
65 WQ 37-13-3 65 37 13 3 2900 55
65 WQ 25-30-4 65 25 30 4 2900 58
65 WQ 30-40-7.5 65 30 40 7.5 2900 56
65 WQ 35-50-11 65 35 50 11 2900 60
65 WQ 35-60-15 65 35 60 15 2900 63
80 WQ 40-7-2.2 80 40 7 2.2 1450 52
80 WQ 43-13-3 80 43 13 3 2900 50
80 WQ 40-15-4 80 40 15 4 2900 57
80 WQ 65-25-7.5 80 65 25 7.5 2900 56
100 WQ 80-10-4 100 80 10 4 1450 62
100 WQ 110-10-5.5 100 110 10 5.5 1450 66
100 WQ 100-15-7.5 100 100 15 7.5 1450 67
100 WQ 80-20-7.5 100 80 20 7.5 1450 68
100 WQ 100-25-11 100 100 25 11 1450 65
100 WQ 100-30-15 100 100 30 15 1450 66
100 WQ100-35-18.5 100 100 35 18.5 1450 65
125 WQ 100-15-11 125 100 15 11 1450 62
125 WQ 130-20-15 125 130 20 15 1450 63
150 WQ 145-9-7.5 150 145 9 7.5 1450 63
150 WQ 180-15-15 150 180 15 15 1450 65
150 WQ 180-20-18.5 150 180 20 18.5 1450 75
150 WQ 180-25-22 150 180 25 22 1450 76
150 WQ 130-30-22 150 130 30 22 1450 75
150 WQ 180-30-30 150 180 30 30 1450 73
150 WQ 200-30-37 150 200 30 37 1450 70
150 WQ 160-45-37 150 160 37 37 1450 70
200 WQ 300-7-11 200 300 7 11 980 73
200 WQ 250-11-15 200 250 11 15 980 74
200 WQ 250-15-18.5 200 250 15 18.5 1450 72
200 WQ 400-10-22 200 400 10 22 1450 76
200 WQ 400-13-30 200 400 13 30 1450 73
200 WQ 300-15-22 200 300 15 22 1450 73
200 WQ 250-22-30 200 250 22 30 1450 71
200 WQ 350-25-37 200 350 25 37 1450 75
200 WQ 400-30-55 200 400 30 55 1450 70
250 WQ 600-9-30 250 600 9 30 980 74
250 WQ 600-12-37 250 600 12 37 1450 78
250 WQ 600-15-55 250 600 15 55 1450 75
250 WQ 600-20-55 250 600 20 55 1450 73
300 WQ 500-15-45 300 500 15 45 980 70
300 WQ 800-15-55 300 800 15 55 980 73
300 WQ 600-20-55 300 600 20 55 980 75
300 WQ 800-20-75 300 800 20 75 980 78
300 WQ 950-20-90 300 950 20 90 980 80
300 WQ 1000-25-110 300 1000 25 110 980 82
350 WQ 1100-10-55 350 1100 10 55 980 84.5
350 WQ 1500-15-90 350 1500 15 90 980 82.5
350 WQ 1200-18-90 350 1200 18 90 980 83.1
350 WQ 1100-28-132 350 1100 28 132 740 83.2
350 WQ 1000-36-160 350 1000 36 160 740 78.5
400 WQ 2000-15-132 400 2000 15 132 740 85.5
400 WQ 1700-22-160 400 1700 22 160 740 82.1
400 WQ 1500-26-160 400 1500 26 160 740 83.5
400 WQ 1700-30-200 400 1700 30 200 740 83.5
400 WQ 1800-32-250 400 1800 32 250 740 82.1
500 WQ 2500-10-110 500 2500 10 110 740 82
500 WQ 2600-15-160 500 2600 15 160 740 83
500 WQ 2400-22-220 500 2400 22 220 740 84
500 WQ 2600-24-250 500 2600 24 250 740 82


Product Tags: sewage pump , submersible pump , effluent pump , wastewater pump , dirty water pump , centrifugal pump
