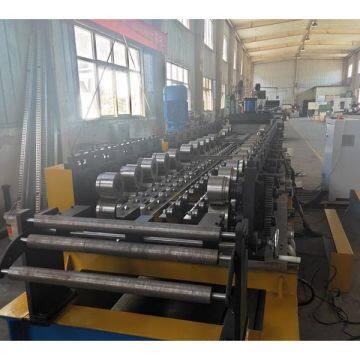

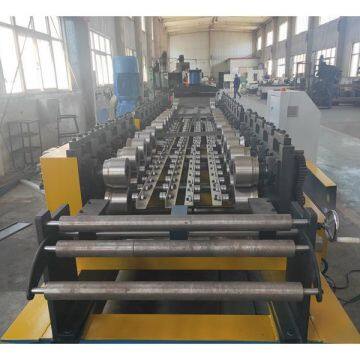

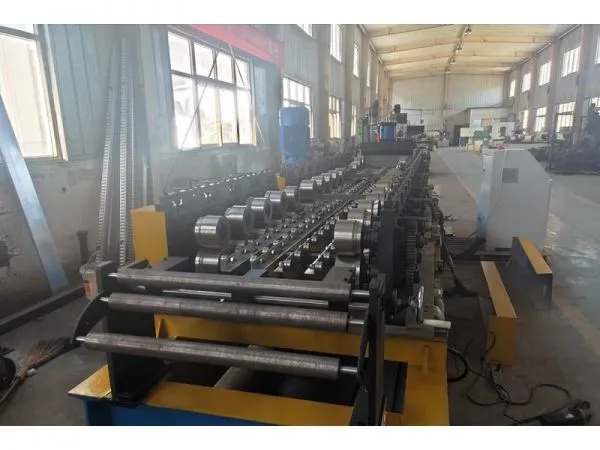

Square Pipe Roll Forming Machine
US$ 25000 - 72000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
LONGLONG
Place of Origin:
China
Model Number:
LL-ST-45
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
30 days
Related Products
-
Light Steel Roll Forming MachineNegotiableMOQ: 1 Set -
Floor Joist Roll Forming MachineUS$ 20000 - 50000MOQ: 1 Set
-
Locking Profile Roll Forming MachineUS$ 12000 - 30000MOQ: 1 Set
-
Storage Shelf Roll Forming MachineUS$ 8000 - 36000MOQ: 1 Set
-
Metal Stud And Track Roll Forming Machine(TCR)US$ 8500 - 21500MOQ: 1 Set
Brand Name
LONGLONG
Place of Origin
China
Model Number
LL-ST-45
Type
Cold Rolling Mill
Certification
ISO 9001
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1-3 years (Can be extended appropriately according to customer requirements）
Condition
New
Voltage
220V
Power(W)
Main Motor: 11Kw: Cutting Power: 1.5Kw
| MACHINE LIST--WHOLE LINE | ||||
| No. | Item | Unit | Qty | |
| 1 | Decoiler(Configurable) | Set | 1 | |
| 2 | Main Forming Machine | Set | 1 | |
| 3 | PLC | Set | 1 | |
| 4 | Pneumatic Cutting | Set | 1 | |
| 5 | Cutting System | Set | 1 | |
| 6 | Collector(Configurable) | Set | 1 | |

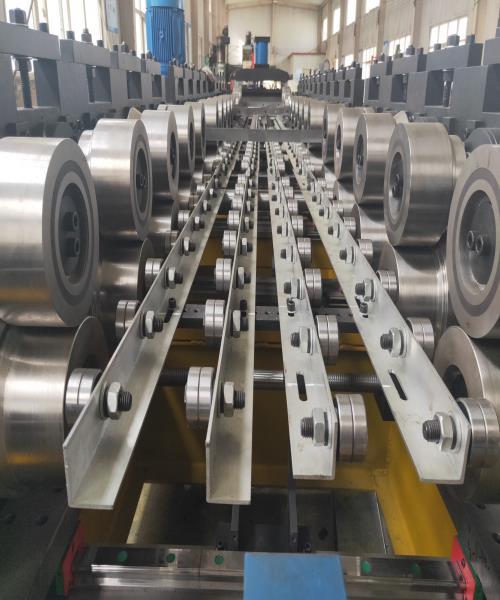

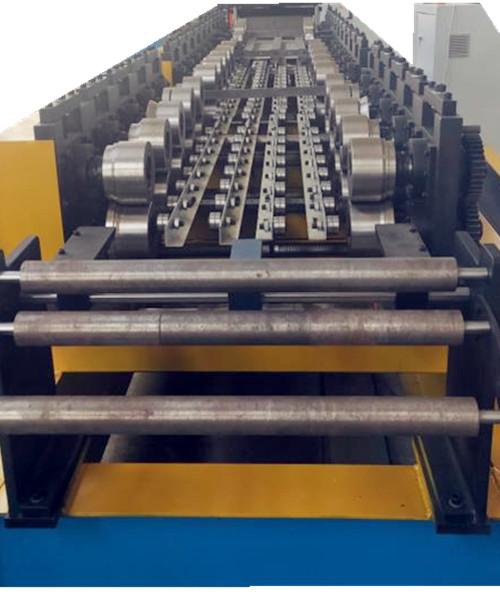

| Sample photo | |
|||
| Technical Parameter | ||||
| No. | Item | Square tube roll forming machine,Square pass roll forming machine,Construction steel profile,C profile roll forming machine | ||
| 1 | Material | Aluminum alloy(Can be customized) | ||
| 2 | Thickness | 0.45-0.55mm(Can be customized) | ||
| 3 | Forming steps | 15steps (Can be customized) | ||
| 4 | Forming speed | ≈20M/Min(Can be customized) | ||
| 5 | Roller material | Gcr 12(Can be customized) | ||
| 6 | Shaft diameter | 55mm(Can be customized) | ||
| 7 | Dimensions(M) | 12*1.8*1.2 | ||
| DETAILED DESCRIPTION | ||||
| Name | No. | Item | Parameters | |
| Decoiler(MT200,MT300,MT500,Customized) | 1. | ID of raw mateiral | 320mm-550mm | |
| 2. | OD of raw mateiral | 1250mm | ||
| 3. | Carrying capacity | 1T/2T/3T(Customized) | ||

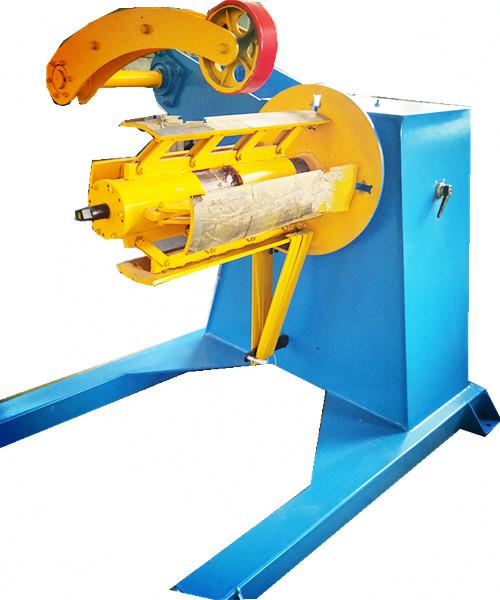

| Sample photo | |
|||
| Name | No. | Item | Parameters | |
|
Main Machine |
1. | Machine body frame | 350H steel welded | |
| 2. | Forming step | 15Steps | ||
| 3. | Roller material | GCr12, Customized | ||
| 4. | Shaft | 45#, quenching and tempering 220~250HBS; Customized | ||
| Shaft Dia | 55mm | |||
| 5. | Transmission | Gear(customized) | ||
| 6. | Main motor | ≈11kw | ||
| 7. | Post column(steel plate) | 20mm | ||

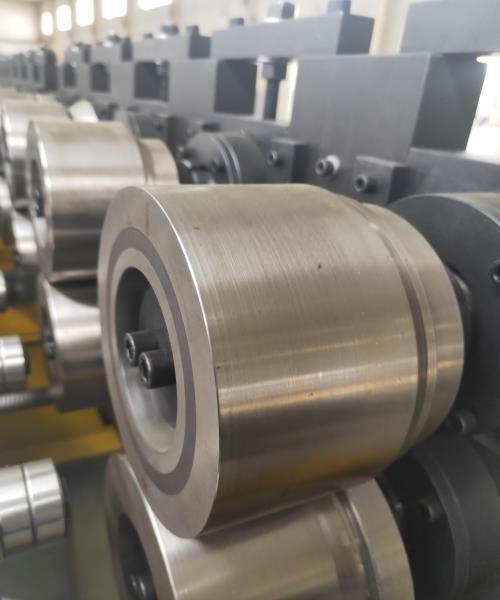

| Sample photo | |
|
||
| Name | No. | Parameters | ||
| Electric control parts | PLC | Customized | ||

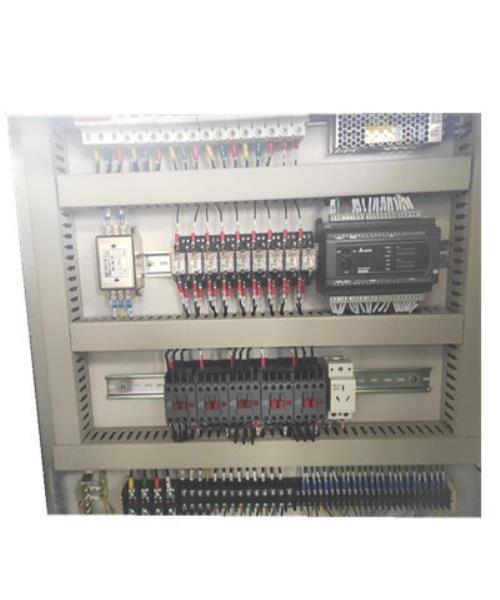

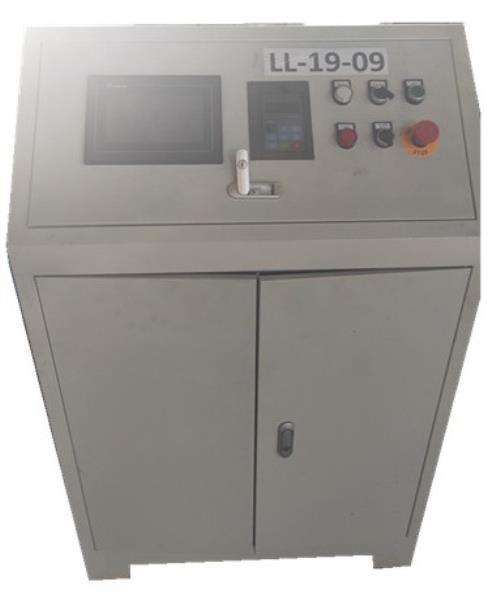

| Sample photo | |
|
||
| Name | No. | Item | Parameters | |
| Pneumatic cutting parts | 1. | Set | 1 | |
| 2. | Power | 1.5KW | ||

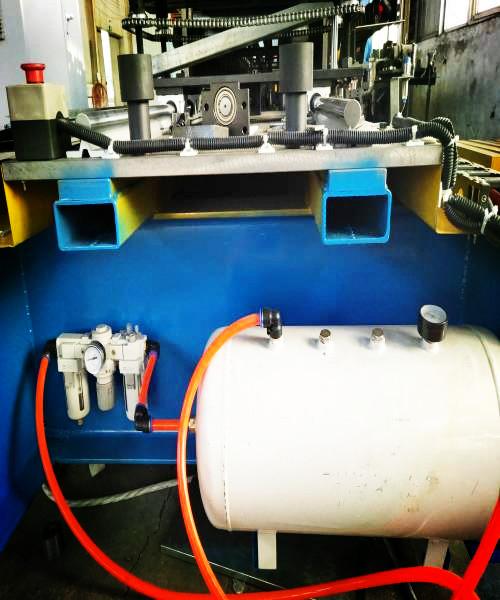

| Sample photo |
|
|||
| Name | No. | Item | Parameters | |
| Cutting parts | 1. | Cutting mode | Pneumatic cutting | |
| 2. | Blade | GCr12 with heat treatment HRC58-62ºC | ||
| 3. | Cutting length tolerance | ±1mm | ||
| Sample photo |
|
|||
| Name | No. | Item | Parameters | |
| Run out table Sample photo |
|
|||
| Quotation and Services | ||||
| Name | Square Pipe Roll Forming Machine | |||
| Quantity | 1Set | |||
| Price | 25000-72000$ | |||
|
Notes |
1. | Production capacity: 50sets/month | ||
| 2. | Lead time: Within 45 days after receiving down payment | |||
| 3. | One year warranty and we will provide the technical support for the whole life. | |||
| Tianjin Longlong Metal Products Factory 0086-00-26994727 kuhnzhang@longlong.com.cn | ||||
