Help CenterC Profile Roll Forming Machine
Related Products
-
Steel Pallet Roll Forming MachineNegotiableMOQ: 1 Set -
Square Pipe Roll Forming MachineUS$ 25000 - 72000MOQ: 1 Set
-
Light Steel Roll Forming MachineNegotiableMOQ: 1 Set
-
Floor Joist Roll Forming MachineUS$ 20000 - 50000MOQ: 1 Set
-
Locking Profile Roll Forming MachineUS$ 12000 - 30000MOQ: 1 Set
Item |
Steel pallet roll forming machine,c profile roll forming machine,c profile automatic production line |
No. |
CL40-14B |
Parameter and Performance | |
Steel material width |
20-200mm (pre galvanized sheet) |
Material thickness |
0.6-1.0mm |
Proceed part |
As per drawing |
Production speed |
5-30m/min( speed adjustable) |
Control |
Programmable Multiple Axis Controller ( PMAC); touch screen |

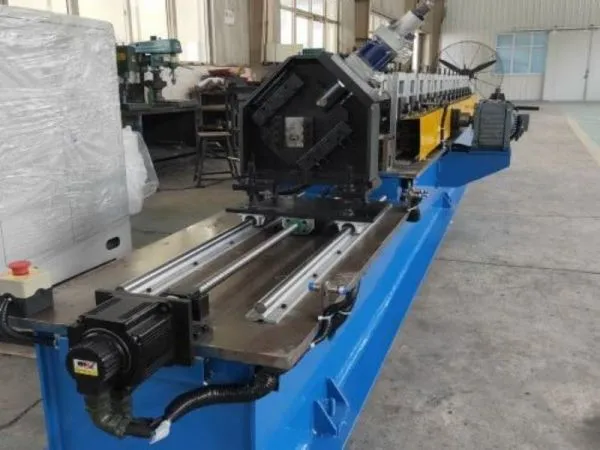

Main machine | |
Rated power of the motor |
(frequency conversion motor)4.0Kw+(Hydraulic)4kw+(Punching device)1.0kw Servo Motor |
Mold material |
Cr12 steel;heat treatment:HR58-62 |
Main body |
Round column support with steel panel |
Reducer |
K Reductor |
Structure |
Welding steel panel structure |
Formming rollers |
14 rollers |
Roll form axle |
40mm diameter steel C45 HN250-280 |
Transmission |
Gear transmission;Steel C45 treatment HR45-48 |
Material Supporting Mechanism | |
Material support bracket |
MT-200 |
Material weight |
600kg |
Max steel coil |
1200mm (outside of diameter) |
Inner dia of Material |
480mm |
Max width of material |
200mm |

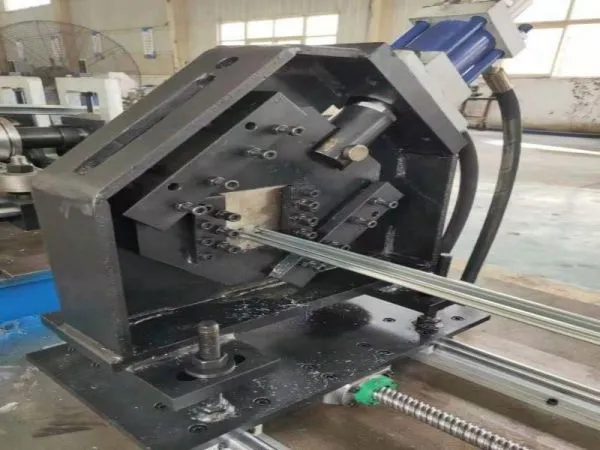

Cutting device | |
Cutting |
Servo motor cutting; hydraulic |
Cutting mold |
Precise cutting;mold material Cr12 Mov |
Tolerance |
±1.0mm (product length) |
Profile receiving table | |
Length of product |
3000mm(length Can be customized ) |
Table |
Table length can be cutomized |
Cutting length |
Can be programmed |
Size of the line | |
Main machine(mm) |
4000X1100X1300(L*W*H) |
Whole line(mm) |
16500X1500X1300(L*W*H) |
Equipment list | |
Decoiler |
1set |
Roll forming main machine |
1set |
Electric cabinet |
1set |
Profile receiving table |
1set |
Hydraulic system |
1set |
Roll form mold |
1set |
Cutting device |
1set |
