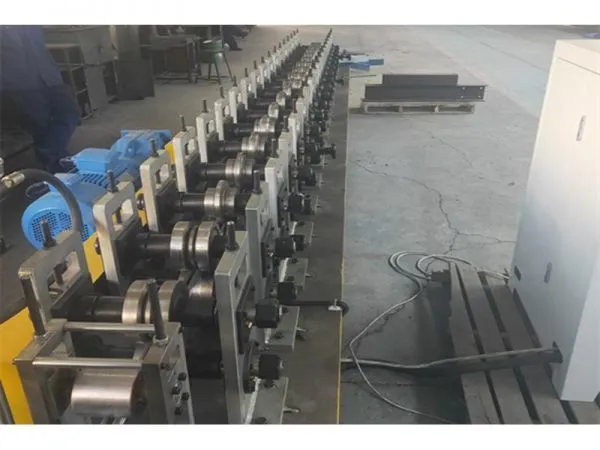

Metal Stud And Track Roll Forming Machine(TCR)
USD $8500 - $21500
/ Set
1 Set(Min.Order)
- 85 Set / Sets per Month
- Tianjin
- T/T L/C D/P D/A
- 30 days
You May Like
- Power module Positive + Negative Electric Board Card for Thermatool High Frequency Welder
- Spiral Welded Pipe Tube Machine Line
- HF Welded Carbon Steel Furniture Pipe Making Machine
- Carbon Steel GI ERW Profile Shape Making Machine
- Black Tube Former Machinery HF Square Pipe Forming Machine
- HF Welded Straight Seam Metal Tube Production Line
Product Details
Brand Name: | LONGLONG | Place of Origin: | China | Model Number: | LL-LW40-20 |
Type: | Cold Rolling Mill | Certification: | ISO 9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1-3 years (Can be extended appropriately according to customer requirements) | Condition: | New | Power(W): | 7.5Kw |
Product Description
MACHINE LIST--WHOLE LINE | ||||
No. | Item | Unit | Qty | |
1 | Decoiler(Configurable) | Set | 1 | |
2 | Main Forming Machine | Set | 1 | |
3 | PLC | Set | 1 | |
4 | Gas-liquid booster | Set | 1 | |
5 | Cutting System | Set | 1 | |
6 | Collector(Configurable) | Set | 1 | |
Technical Parameter | ||||
No. | Item | Steel stud and track roll forming machiine,TCR roll forming machine, Metal stud and track roll forming machine,Furring channel roll forming machine | ||
1 | Material | Galvanized plate, cold rolld plate | ||
2 | Thickness | 0.3~1.0mm(Can be customized) | ||
3 | Forming steps | 18steps (Can be customized) | ||
4 | Forming speed | 10~40M/Min(Can be customized) | ||
5 | Roller material | GCr12(Can be customized) | ||
6 | Shaft diameter | 40mm(Can be customized) | ||
DETAILED DESCRIPTION | ||||
Name | No. | Item | Parameters | |
Decoiler(MT200,MT300,MT500,Customized) | 1. | Material coil inner diameter | 320mm-550mm | |
2. | Max coil Width | 1250mm | ||
3. | Carrying capacity | 1T/2T/3T(Customized) | ||
Name | No. | Item | Parameters | |
Main Machine | 1. | Body frame | 350H steel welded | |
2. | Forming steps | 18Steps | ||
3. | Roller material | GCr12, Customized | ||
4. | Shaft | 45# with quencing and tempring 220~250HBS; Customized | ||
Shaft Dia | 40mm | |||
5. | Transmission | Gear(customized) | ||
6. | Main motor | ≈7.5KW | ||
7. | Post column(steel plate) | 20mm | ||
Sample photo | ||||
Name | No. | Parameters | ||
Electric control parts | PLC | Customized | ||
Sample photo | ||||
Name | No. | Item | Parameters | |
Gas-liquid booster parts | 1. | Set | 1 | |
Sample photo | ||||
Name | No. | Item | Parameters | |
Cutting Device | 1. | Cutting mode | Gas-liquid booster cylinder cutting | |
2. | Blade | GCr12 with heat treatment HRC58-62ºC | ||
3. | Cutting length tolerance | ±1mm | ||
Sample photo | ||||
Name | No. | Item | Parameters | |
Run out table Sample photo | ||||
Quotation and Services | ||||
Item | Steel stud and track roll forming machiine | |||
Quantity | 1Set | |||
Price | 8500-21500$ | |||
Notes | 1. | Production capacity: 50sets/month | ||
2. | Lead time: Within 30 days after receiving down payment | |||
3. | One year warranty and we will provide the technical support for the whole life. | |||
Tianjin Longlong Metal Products Factory 0086-00-26994727 kuhnzhang@longlong.com.cn |
