Help CenterSteel Reinforcement Machine for PVC Window And Door
Related Products
Name |
Reinforcement Steel Machine for PVC Window And Door |
|||
Item |
Reinforcement Steel Machine for PVC Window And Door,Steel Reinforcement Machine for Window And Door,Steel Profiles for PVC Window And Door |
|||
Model |
LLXB-12A-Q |
|||
Quantity |
1set |
|||
Size |
12000-15500$ |
|||
|
Notes |
1 |
Production capacity: 50sets/month |
||
2 |
Lead time: Within 45 days after receiving down payment |
|||
3 |
One year warranty and we will provide the technical support for the whole life. |
|||
MACHINE LIST--WHOLE LINE | ||||
No. |
Item |
Unit |
Qty |
|
1 |
Decoiler |
Set |
1 |
|
2 |
Main forming machine |
Set |
1 |
|
3 |
PLC |
Set |
1 |
|
4 |
Following cutting |
Set |
1 |
|
5 |
Collector(Configurable) |
Set |
1 |
|
Performance and Parameter | ||||
No. |
Item |
Parameters |
||
1 |
Material width for production |
30mm-1200mm |
||
2 |
Rolling thickness |
0.4-2.0mm(special shape 1.5mm) |
||
3 |

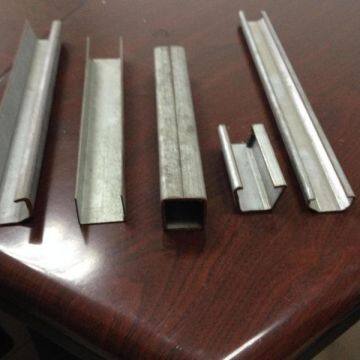

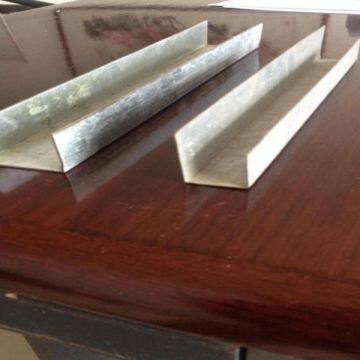

Production scope |
U/C profile(suitable fpr all thin thick cold bending) |
||
4 |
Production speed |
20m/min(Customized) |
||
5 |
Control method |
PLC control(Industry computer);Encoder size |
||
Main Machine | ||||
No. |
Item |
Parameters |
||
1 |
Moto Power |
Electromagnetic motor:7.5Kw |
||
2 |
Roller Material |
Regular material is Gcr15;salt bath quenching HR58-62 |
||
3 |
Frame Structure |
Steel plate structure |
||
4 |
Reducer |
PM model ZQ-350 model |
||
5 |
Base Structure |
Monolithic steel welded structure |
||
6 |
Forming Steps |
12steps(can be customized) |
||
7 |
Shaft Diameter |
¢70mm 45# Carbon steel quenching and tempering treatment HN250-280 |
||
8 |
Tranmission mode |
Gear transmission |
||
Decoiler | ||||
No. |
Item |
Parameters |
||
1 |
Structure |
Horizontal discharge;no power |
||
2 |
Weight capacity |
1500kg(Can be customized) |
||
3 |
Max O.D. |
1400/1500mm |
||
4 |
I.D |
Unlimited |
||
5 |
Material width |
|||
Cutting device | ||||
No. |
Item |
Parameters |
||
1 |
Cutting method |
Automatic tracking shear(pneumatic flying saw),Power 4.0kw |
||
2 |
Cutting mould |
65MN |
||
3 |
Cutting mode |
Flying saw(steel saw blade) |
||
4 |
Length tolerance |
±2.0mm |
||
Collector | ||||
No. |
Item |
Parameters |
||
1 |
Length |
0-6mm |
||
2 |
Collect |
Manual |
||
3 |
Fixed length form |
Encoder size(input length first then auto cutting) |
||
Other | ||||
No. |
Item |
Parameters |
||
1 |
Main machie(mm) |
4200X1200X1300(L*W*H) |
||
2 |
Production line(mm) |
16500X1100X1300(L*W*H) |
||
|
Tianjin Long Long Metal Products Factory 0086-00-26994727 kuhnzhang@longlong.com.cn | ||||
