High Quality T Bar Roll Forming Machine for Decoration Usuage
US$ 7500 - 11500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
LONGLONG
Place of Origin:
China
Model Number:
LL-CL40-60A
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
30 days
Related Products
-
Solar Panel Bracket Roll Forming Machine for PV ProjectUS$ 30000 - 110000MOQ: 1 Set -
Steel Reinforcement Machine for PVC Window And DoorUS$ 12000 - 15500MOQ: 1 Ton
-
C Profile Roll Forming MachineUS$ 7500 - 28000MOQ: 1 Set
-
Steel Pallet Roll Forming MachineNegotiableMOQ: 1 Set
-
Square Pipe Roll Forming MachineUS$ 25000 - 72000MOQ: 1 Set
Brand Name
LONGLONG
Place of Origin
China
Model Number
LL-CL40-60A
Type
Cold Rolling Mill
Certification
ISO 9001
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1-3 years (Can be extended appropriately according to customer requirements）
Condition
New
T Bar Roll Forming Machine for Decoration Usuage | ||
Item |
T Bar Roll Forming Machine for Decoration Usuage,Stud and Track Roll Forming Machine,Cold Bending Forming Machine |
|
Model |
LL-CL40-60A |
|
Price |
7800-15000usd/set |
|

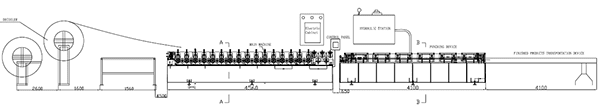

MACHINE LIST--WHOLE LINE | ||
No. |
Item |
Qty |
1. |
Decoiler(Configurable) |
1set |
2. |
Main Forming Machine |
1set |
3. |
PLC |
1set |
4. |
Hydraulic Cutting System |
1set |
|
|
|
Technical Parameter | ||
Material |
Pre-galvanized steel plate |
|
Thickness |
0.3-0.6mm |
|
Forming steps |
16 |
|
Transmission mode |
Gear transmission |
|
Max tolerance |
0.5mm |
|
Roller Material |
Regular material is GCR15, salt bath quenching: HR58-62 |
|
Frame Structure |
Steel plate structure |
|
Shaft |
45# steel |
|
Production Speed |
35 Meters/min |
|
|
Tianjin Long Long Metal Products Factory 0086-00-26994727 kuhnzhang@longlong.com.cn | ||
