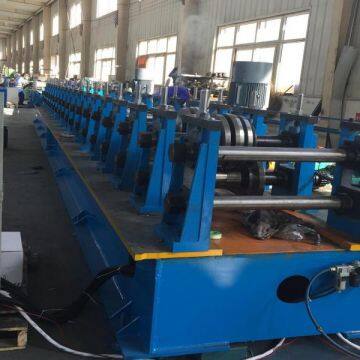

Floor Joist Roll Forming Machine | ||
Product model |
LL-70-18 |
|
Price |
25000-50000USD/SET |
|
Production line | ||
Decoiler |
1set |
|
Main machine |
1set |
|
Electric cabinet |
1set |
|
Collector |
1set |
|
Follow up flying saw cutting |
1set |
|
|
Performance and parameter |
Material width for production |
50-300mm |
Rolling thickness |
2.0-3.0mm(Mould tolerance 2.0-2.5mm) |
|
Production scope |
C profile(see drawing) |
|
Production speed |
10-30m/min |
|
Control method |
PLC control |
|
|
Forming main machine |
Motor power |
Electromagnetic speed regulating motor:(main motor)15*1=15Kw;chase shear motor 15kw |
Roller material |
Common GCr12;Salt bath quenching:HR 58-62 |
|
Frame structure |
Arch type structure,Commutator transmission |
|
Reducer |
K97 series |
|
Base structure |
Integral steel plate welding structure;Body milling machine |
|
Forming steps |
20 |
|
Shaft diameter |
¢70mm 45# Carbon steel quenching and tempering treatment HN250-280 |
|
Transmission mode |
Commutator transmission;Soft coupling output |
|
|
Decoiler |
Structure |
Vertical MT-500 |
Weight capacity |
2000kg |
|
Max O.D |
1300mm |
|
I.D |
480mm |
|
Material Width |
200-300 |
|
Cutting device |
Cutting mode |
Flying saw follow up cutting |
Cutting mould |
65MN |
|
|
Collector |
Length |
3000-11800mm |
Collect |
Collect frame |
|
Fixed length form |
Pneumatic accuracy fixed length device(Deceleration follow up shear) |
|
Size |
Main machine(mm) |
26000X1800X1300(L*W*H) |
Production line(mm) |
30000X3000(L*W) |
|
Production line features: Main drive by K97 series helical gear reducer; transmission mode for the transmission of the commutator; a soft connection method input into the main machine.Motor use 2 variable frequency motor. The fixed size mechanism adopts penumatic fine fixed legnth and the satisfies the tolerance +/-1.0mm,add reduce speed device to the fixed part to avoid collision effectively. | ||
