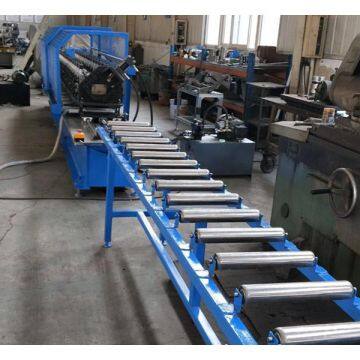

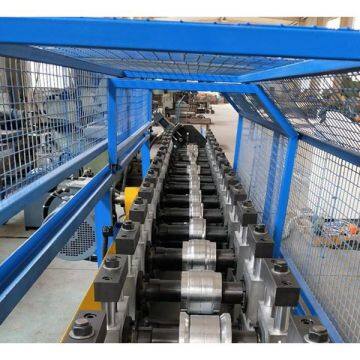

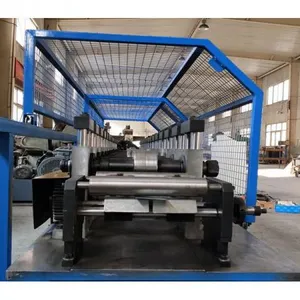

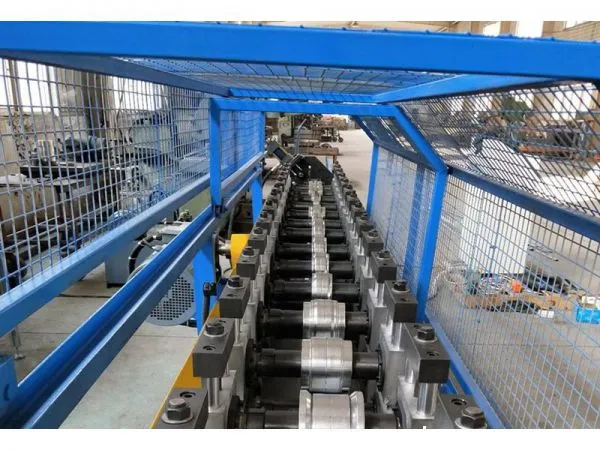

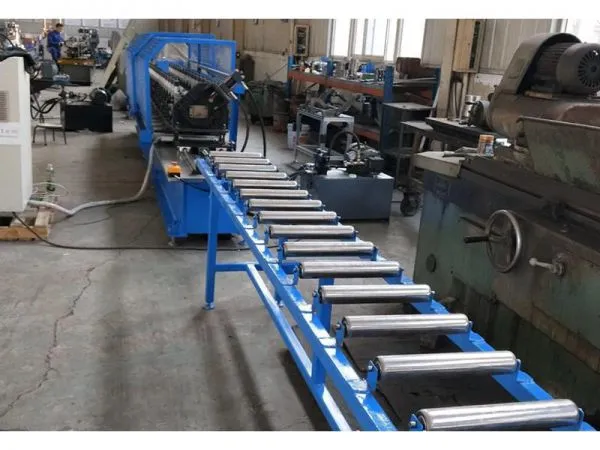

Locking Profile Roll Forming Machine
US$ 12000 - 30000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
LONGLONG
Place of Origin:
China
Model Number:
LL-14B-70
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
30 days
Related Products
-
Storage Shelf Roll Forming MachineUS$ 8000 - 36000MOQ: 1 Set -
Metal Stud And Track Roll Forming Machine(TCR)US$ 8500 - 21500MOQ: 1 Set
-
High Quality T Bar Roll Forming Machine for Decoration UsuageUS$ 7500 - 11500MOQ: 1 Set
-
Solar Panel Bracket Roll Forming Machine for PV ProjectUS$ 30000 - 110000MOQ: 1 Set
-
Steel Reinforcement Machine for PVC Window And DoorUS$ 12000 - 15500MOQ: 1 Ton
Brand Name
LONGLONG
Place of Origin
China
Model Number
LL-14B-70
Type
Cold Rolling Mill
Certification
ISO 9001
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1-3 years (Can be extended appropriately according to customer requirements）
Dimension(L*W*H)
16500X1500X1300mm
Condition
New
Power(W)
Frequency conversion motor: 4Kw; Hydraulic: 4Kw; Punching device: 1Kw
| Machine Model: | LL-CL40-14B | Name of the machine: | C profile automatic production line | ||||||||
| Parameter and Performance | Steel material width | 20-200mm (pre galvanized sheet) | Main machine | Rated power of the motor | (frequency conversion motor)4.0Kw+(Hydraulic)4kw+(Punching device)1.0kw Servo Motor | ||||||
| Material thickness | 0.6-1.0mm | Mold material | Cr12 steel;heat treatment:HR58-62 | ||||||||
| Proceed part | As per drawing | Main body | round column support with steel panel | ||||||||
| Production speed | 5-30m/min( speed adjustable) | Reducer | K Reductor | ||||||||
| Control | Programmable Multiple Axis Controller ( PMAC); touch screen | Structure | Welding steel panel structure | ||||||||
| Material Supporting Mechanism | Material support bracket | MT-200 | Formming rollers | 14 rollers | |||||||
| Material weight | 600kg | Roll form axle | 40mm diameter steel C45 HN250-280 | ||||||||
| Max steel coil | 1200mm (outside of diameter) | Transmission | Gear transmission;Steel C45 treatment HR45-48 | ||||||||
| Inner dia of Material | 480mm | Cutting device | Cutting | Servo motor cutting; hydraulic | |||||||
| Max width of material | 200mm | Cutting mold | Precise cutting;mold material Cr12Mov; | ||||||||
| Profile receiving table | Length of product | 3000mm(length Can be customized ) | |||||||||
| Table | Table length can be cutomized | Tolerance | ±1.0mm (product length) | ||||||||
| Cutting length | Can be programmed | Size of the line | Main machine(mm) | 4000X1100X1300(L*W*H) | |||||||
| Equipment list | Whole line(mm) | 16500X1500X1300(L*W*H) | |||||||||
| Decoiler | 1 set | Hydraulic system | 1 set | 1,Production line layout:Uncoiler---Roll forming main machine---Servo cutting--collector | |||||||
| Roll forming main machine | 1 set | Roll form mold | 1set | ||||||||
| Electric cabinet | 1 set | Cutting device | 1 set | ||||||||
| Profile receiving table | 1 set | ||||||||||
