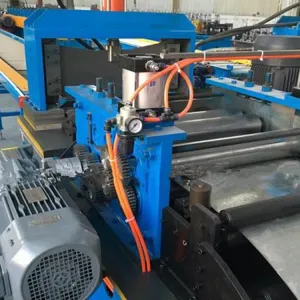

Storage Shelf Roll Forming Machine
USD $8000 - $36000
/ Set
1 Set(Min.Order)
- 36 Set / Sets per Month
- Tianjin
- T/T L/C D/P D/A
- 30 days
You May Like
- Power module Positive + Negative Electric Board Card for Thermatool High Frequency Welder
- Spiral Welded Pipe Tube Machine Line
- HF Welded Carbon Steel Furniture Pipe Making Machine
- Carbon Steel GI ERW Profile Shape Making Machine
- Black Tube Former Machinery HF Square Pipe Forming Machine
- HF Welded Straight Seam Metal Tube Production Line
Product Details
Brand Name: | LONGLONG | Place of Origin: | China | Model Number: | LL-CL70-22Q |
Type: | Cold Rolling Mill | Certification: | ISO 9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1-3 years (Can be extended appropriately according to customer requirements) | Weight: | 2000kg | Dimension(L*W*H): | 26000X1800X1300mm |
Condition: | New | Power(W): | Main motor: 15Kw; Chase shear motor: 15Kw |
Product Description
Performance and parameter | Material width for production | 50-300mm | Forming main machine | Motor power | Electromagnetic speed regulating motor:(main motor)15*1=15Kw;chase shear motor 15kw | ||||||
Rolling thickness | 2.0-3.0mm(Mould tolerance 2.0-2.5mm) | Roller material | Common Cr12;Salt bath quenching:HR58-62 | ||||||||
Production scope | C profile(see drawing) | Frame structure | Arch type structure,Commutator transmission | ||||||||
Production speed | 10-30m/min | Reducer | K97 series | ||||||||
Control method | PLC control | Base structure | Integral steel plate welding structure;Body milling machine. | ||||||||
Decoiler | Structure | Vertical MT-500 | Forming steps | 20 | |||||||
Weight capacity | 2000kg | Shaft diameter | ¢70mm 45# Carbon steel quenching and tempering treatment HN250-280 | ||||||||
Max O.D | 1300mm | Transmission mode | commutator transmission;Soft coupling output | ||||||||
I.D | 480mm | Cutting device | Cutting mode | Flying saw follow up cutting | |||||||
Material Width | 200-300 | Cutting mould | 65MN | ||||||||
Collector | Length | 3000-11800mm | Cutting mode | ||||||||
Collect | Collect frame | Length tolerance | |||||||||
Fixed length form | Pneumatic accuracy fixed length device(Deceleration follow up shear) | Size | Main machine(mm) | 26000X1800X1300(L*W*H) | |||||||
Production line lis | Production line(mm) | 30000X3000(L*W) | |||||||||
Decoiler | 1set | Production process:Decoiler---straighten---roll fomring---finish product straighten--follow up flying saw cutting | |||||||||
Main machine | 1set | ||||||||||
Electric cabinet | 1set | Production line features: Main drive by K97 series helical gear reducer; transmission mode for the transmission of the commutator; a soft connection method input into the main machine.Motor use 2 variable frequency motor. The fixed size mechanism adopts penumatic fine fixed legnth and the satisfies the tolerance +/-1.0mm,add reduce speed device to the fixed part to avoid collision effectively. | |||||||||
Collector | 1set | ||||||||||
Follow up flying saw cutting | 1set |
