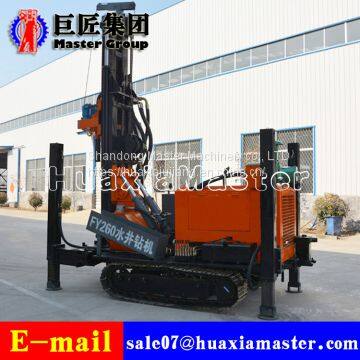

Strong Power FY260 Crawler Pneumatic Water Well Drilling Machine / Drilling Equipment for Water Well
US$ 2500 - 2800
/ Set
1 Set(Min. Order)
- Qingdao
- T/T L/C
- 10 days
You May Like
-
HZ-130Y Hydraulic Core Drilling Rig Easy to Operation High Quality
-
Rotary Water Well Drilling Rig Machine HZ-130YY / Borehole Drilling Equipment for Sale- Africa Price
-
Hot Sale HZ-200Y Engineering Exploration Drill Rig/200m Water Well Borehole Drilling Rig Factory Price
-
Self-propelled HZ-200YY Vertical Earth Drilling Machine / Well Water Drill
-
HuaxiaMaster Supplies XYD-130 Rubber Track Well Drilling Rig on Sale
-
Crawler Geological Exploration Coring Rig XYD-200 / Hydraulic Core Drilling Machine
Product Details
| Brand Name | Qingdao | Place of Origin | China | |
| Model Number | FY260 | Type | Rotary Drilling Rig | |
| Certification | ISO 9001 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 6 Months | Weight | 6.2t | |
| Dimension(L*W*H) | 3900*1950*2550mm | Power Type | Diesel | |
| Voltage | no | Usage | Water Well | |
| Condition | New | Power(W) | 85kw |
Product Description
1.The range of application ofFY260 crawler type gas drilling rig
Applicable to civil engineering drilling, geothermal drilling, drilling with large diameter and deep drilling footage, it’s fast, flexible and efficient.
2.The technical parameter of FY260 crawler type gas drilling rig
Model | FY260 | |
Gross weight | t | 6.2 |
External dimension | mm | 3900*1950*2550 |
Aperture | mm | 140-325 |
Drilling depth | m | 260 |
Feed stroke | mm | 3000 |
Travel speed | km/h | 2.5 |
Grade ability | max. | 30° |
Rising height from ground | mm | 250 |
Wind pressure | mpa | 1.7-3.0 |
Air consumption | m³/min | 17-35 |
Engine power | kw | 85 |
Rotary speed | rpm | 40-70 |
Rotation torque | n.m | 7000-9000 |
