Wheeled hydraulic core drilling rig / cheap hydraulic drill equipment

FOB Price

USD $7000 - $7200 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HuaxiaMaster	Place of Origin	China
Model Number	XYX-200	Type	Rotary Drilling Rig
Certification	ISO 9001	After-sales Service Provided	No overseas service provided
Warranty	6 Months	Weight	1300kg
Dimension(LWH)	no	Power Type	Diesel
Voltage	no	Usage	Water Well
Condition	New	Power(W)	22HP

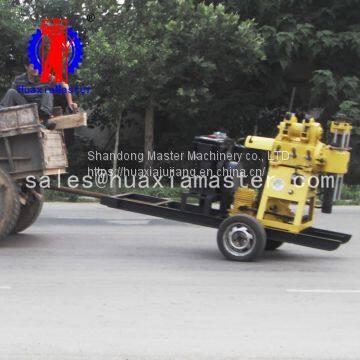

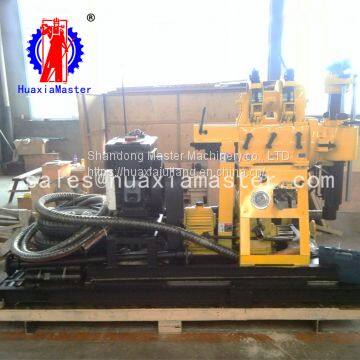

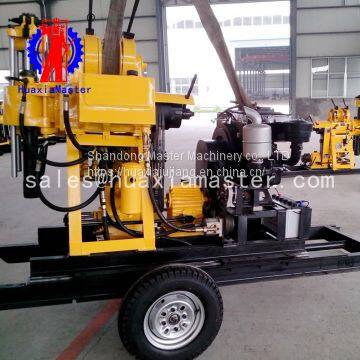

XYX-200 wheeled hydraulic water well drilling rig

1. Characteristics of XYX-200 wheeled hydraulic water well drilling rig

· hydraulic cylinder, high efficiency

· wheeled walking mechanism, very convenient for transport and adjusting the drilling rig level.

· pressure gauge display the condition of the bottom of the drill hole.

· the drilling rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod.

· the working efficiency is high and the operation is convenient, safe and reliable.

2. Parameters of XYX-200 wheeled hydraulic water well drilling rig

XYX-200 wheeled hydraulic water well drilling rig
Drill hole depth	200m
Maximum opening diameter	300mm
Final hole diameter	75mm
Drill pipe diameter	60mm
Borehole inclination	90°-75°
Rig weight (without power)	1300kg
Trigonometric belt	B9504 B17003
Active moving distance	300mm
Power	Dieselengine/motor22hp/16.2kw
A vertical scroll of painting
Shaft rotation speed	64/128/ 287/ 557 r/min
Vertical axis stroke	450mm
Windlass
Maximum lifting weight of single rope	2400kg
Single rope lifting speed	0.41/ 0.82/1.64m/s
Wire rope diameter	13mm
Wire rope capacity	35m
Hug floodgate caliber	260mm
Hug floodgate belt width	70mm
Mud pump
Type	Horizontal single cylinder double action
Maximum displacement	Diesel engine 170L/min Matching motor 150L/min
Maximum pressure	3Mpa
Work pressure	1.5Mpa
Inlet pipe caliber	40mm
Outlet pipe caliber	30mm
Triangle conveyer belt	B1728mm
Type	CBT—F—314
Triangle conveyer belt	B1100*1
