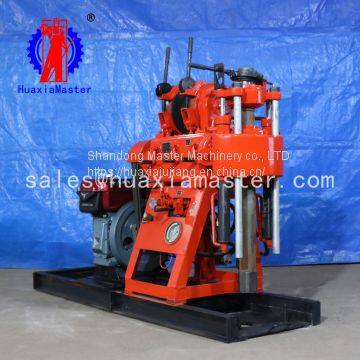

XY-200 Core Drilling Machine /engineering Geology Exploration Equipment 200m Depth Civil Water Well Rig
- Qingdao
- T/T L/C
- 10 days
You May Like
-
2000m Depth Geology Exploration Rig XY-8 Deep Hole Water Well Drilling Machine/ Diamond Drill Machine
-
1000m XY-44A Borehole Water Drilling Rig Machine on Sale
-
China Best Crawler KY-150 Hydraulic Reverse Circulation(RC) Drilling Rig for Mining Prospection
-
KY-200 Mine Rock Drilling Machine Hydraulic Metal Drilling Machine on Sale
-
KY-250 Hydraulic Exploration Drilling Rig for Metal Mine /gold Ore Exploration Rig /high Efficiency Prospecting Drilling Rig
-
Rope Coring Drill in Tunnel KY-300 / Full Hydraulic Drilling Rig
Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Model Number | XY-200 | Type | Rotary Drilling Rig | |
| Certification | ISO 9001 | After-sales Service Provided | No overseas service provided | |
| Warranty | 6 Months | Weight | 760kg | |
| Dimension(L*W*H) | 2.75*0.95*1.60m | Power Type | Diesel | |
| Voltage | no | Usage | Water Well | |
| Condition | New | Power(W) | 15kw |
Product Description
XY-200 hydraulic water well drilling rig
1. Applications of XY-200 hydraulic water well drilling rig
Wells, geological survey, geophysical exploration, road and high-rise building foundation exploration, blasting holes and other drilling projects.
1. Parameters of XY-200 hydraulic water well drilling rig
Maximum opening diameter | 400mm |
Maximum borehole depth | 200m |
Diameter of the end hole | 75mm |
Borehole dip angle | 90-75° |
Machine overall size | 2.75*0.95*1.60m |
Drill pipe diameter | 50mm |
Weight of drill rig diameter of drill pipe (without power) | 760kg |
A vertical scroll of painting | |
Shaft rotation speed | 71/142/310/20r/min |
Vertical axis stroke | 450mm |
Windlass | |
Maximum lifting weight of single rope | 2008kb |
Drum lifting speed | 17/35/75/160 rm/s |
Wire rope diameter: | 13mm |
Wire rope capacity | 35mm |
Width of sluice | 70mm |
Mud pump | |
Type: horizontal single cylinder double action | flow：180L/min |
Maximum pressure | 1.5mpa |
Working pressure | 0.7mpa |
Inlet size | 50mm |
Outlet pipe diameter | 45mm |
Power | |
Diesel oil | 22hp |
Rated speed | 2200r/min |
Electric machinery | 15kw |
Rated speed | 1460r/min |
