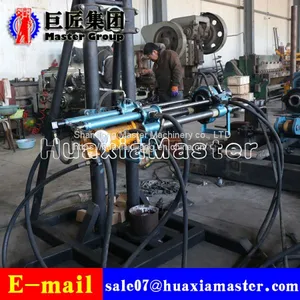

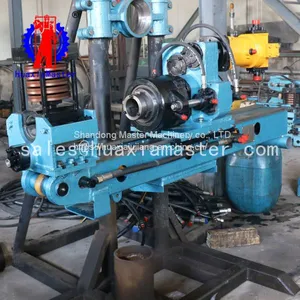

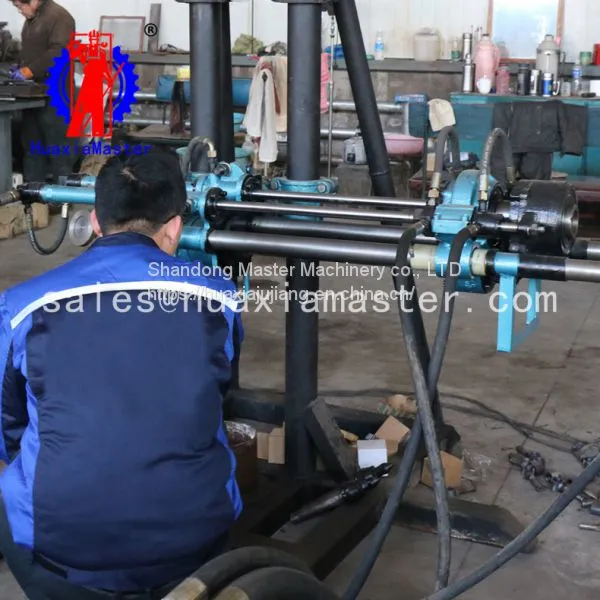

Intruduction of KY-150 full hydraulic drilling rig
a.KY-150 full hydraulic drilling rig has good disintegration, convenient transportation, flexible arrangement of drilling rig and mechanization of drill pipe unload, which can reduce labor intensity and improve work efficiency, and can be stepless speed regulation.
b.KY-150 full hydraulic drilling rig has the function of linkage. It is simple and safe through the control platform of operating floor. The spindle of the gyration adopts the through hole structure. The length of the drill pipe is not restricted by the drilling rig, and it can also be applied to diamond wire-line coring drilling.
c.KY-150 full hydraulic drilling rig uses full hydraulic operation to make the structure more reasonable, to make the function more complete. It uses variable motor which has wide speed regulating range. This drilling rig applies to high speed drilling of alloy steel stone and hard alloy drilling at low speed, and it is suitable for any inclination drilling in the tunnel or surface drilling.
2.Structure composition of KY-150 full hydraulic drilling rig

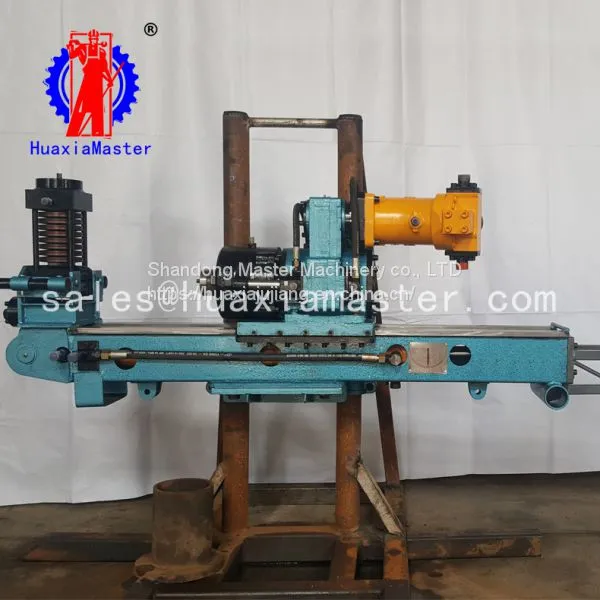

The KY-150 fully hydraulic drilling rig adopts the structure of full hydraulic power head, and consists of three parts: main engine, pump station and operating floor.
3.The parameter of KY-150 full hydraulic drilling rig
Borehole diameter |
36.5mm/46.5mm |
Drilling depth |
150（33 Steel drill rig）/120（43 Steel drill rig）/150(43 Aluminum alloy steel drill rig) |
Borehole angle |
0°-360° |
Spindle speed |
400-1400 r/min |
Spindle output torque |
87-300 n.m |
Rated pulling force |
30 kn |
Rated pull speed |
> 0.3 m/s |
Oil supply mode |
double gear pump |
Type of hydraulic oil |
anti wear hydraulic oil YB-N46/YB-N32 (winter) |
Motor model |
manual variable motor A6V55MA |
Motor specifications |
Y180M-4/18.5 kw |
Equipment weight |
Main engine166kg/backbone 40kg/operation floor86kg/power car 210kg |
