XYC-200 Truck Mounted Hydraulic Core Drill Equipment /Light Truck Chassis Car Drilling Rig
- Qingdao
- T/T L/C
- 10 days
You May Like
-
HuaxiaMaster Supply Tricycle-mounted XYC-200A Core Drilling Machine Hydraulic Rotary 100m-200m Drilling Machine
-
HuaxiaMaster Truck Mounted Drilling Rig / Tractor Mounted Drill Equipment on Sale
-
600 Meters Depth XYC-3 Vehicle-mounted Hydraulic Core Drilling Rig Deep Water Well Drilling Rig
-
Supplies Geological Reconnaissance Driller XY-3 /600m Hydraulic Coring Drilling Rig on Sale
-
XY-100 Water Well Drilling Rig /hydraulic Water Well Drill Equipment Made in China
-
XY-130 Engineering Geology Exploration Drilling Rig/130m Borehole Water Well Drill Machine/diesel Power Civil Well Rig
Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Model Number | XYC-200 | Type | Rotary Drilling Rig | |
| Certification | ISO 9001 | After-sales Service Provided | No overseas service provided | |
| Warranty | 6 Months | Weight | no | |
| Dimension(L*W*H) | no | Power Type | Diesel | |
| Voltage | no | Usage | Water Well | |
| Condition | New | Power(W) | 22HP |
Product Description
XYC-200 vehicle-mounted hydraulic water well drilling rig
1. Characteristics of XYC-200 vehicle-mounted hydraulic water well drilling rig
· XYC-200 is a multi-functional hydraulic vehicle-mounted water well drilling rig.
· Automobile chassis chassis, transmission system and rig winch, mud pump and other important accessories installed in the chassis. the layout is reasonable, compact, and easy to operate.
· It is equipped with high pressure,big flow BW160mudpump,which can ensure drilling depth and diameter.
· The drilling rig has shifting device, it can move on the vehicle and is convenient to operate while drilling.
· The hydraulic folding mast is safe and convenient to transport
2.Applications of XYC-200 vehicle-mounted hydraulic water well drilling rig
· road and high-rise building foundation exploration
· all kinds of concrete structure inspection holes
· river embankments
· subgrade grouting holes
· drilling and direct grouting
· civil water well
· ground temperature central air conditioners.
3. Parameters of XYC-200 vehicle-mounted hydraulic water well drilling rig
XYC-200 vehicle-mounted hydraulic water well drilling rig | ||
Drilling depth(m) | 30-200 | |
Drilling diameter(mm) | 300-75 | |
Drilling angel(mm) | 90-75 | |
Spindle rotating speed(r/min) | 64/128/287/557 | |
Spindle stroke(mm) | 450 | |
Main hoisting capacity (single line)(Kg) | 1600 | |
Main hoisting line capacity (m) | 35 | |
Hoisting speed(r/s) | 17/35/75/151 | |
Wireline diameter(mm) | 12.5 | |
Mast height(mm) | 7000 | |
Mast effective height(mm) | 6500 | |
Kelly/active pipe(mm) | 59*53 | |
Drill rod(mm) | 42/50/60 | |
Drill rig weight(kg) | 1150 | |
Power unit | Model | ZS1115 diesel engine |
Rated power | 14.7kw/2200rpm | |
BW-160 mud pump | Rated flow(l/min) | 160 |
Rated pressure(mpa) | 1.3 | |
Driving power(kw) | 5.15 | |
Main machine weight (kg) | 190 | |
Dimension(mm) | 1110*725*965 | |

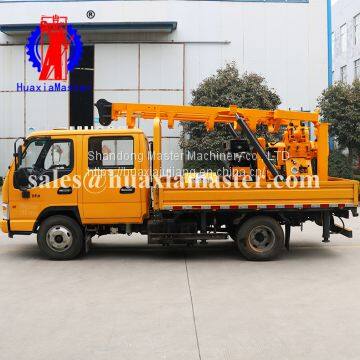

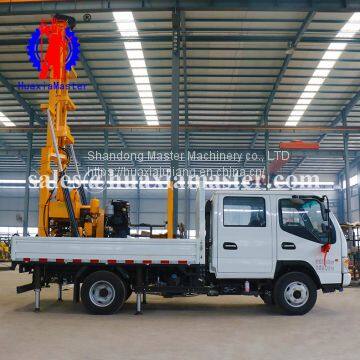

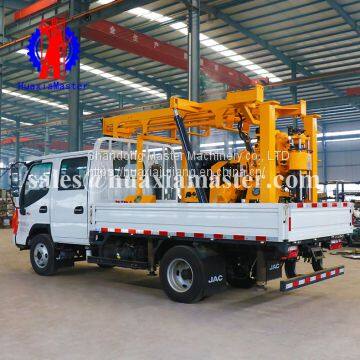

Chassis | light truck（Pictures of vehicle-mounted drilling rigs for reference only） | |
