High Quality and Low Price XYX-130 Wheeled Hydraulic Water Well Drill
- Qingdao
- T/T L/C
- 10 days
You May Like
-
Geological Survey Drill Machine The Walking Type Hydraulic Water Well Drill Rig
-
Wheeled Hydraulic Core Drilling Rig / Cheap Hydraulic Drill Equipment
-
XYC-200 Truck Mounted Hydraulic Core Drill Equipment /Light Truck Chassis Car Drilling Rig
-
HuaxiaMaster Supply Tricycle-mounted XYC-200A Core Drilling Machine Hydraulic Rotary 100m-200m Drilling Machine
-
HuaxiaMaster Truck Mounted Drilling Rig / Tractor Mounted Drill Equipment on Sale
-
600 Meters Depth XYC-3 Vehicle-mounted Hydraulic Core Drilling Rig Deep Water Well Drilling Rig
Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Model Number | XYX-130 | Type | Rotary Drilling Rig | |
| Certification | ISO 9001 | After-sales Service Provided | No overseas service provided | |
| Warranty | 6 Months | Weight | 950 KG | |
| Dimension(L*W*H) | no | Power Type | Diesel | |
| Voltage | no | Usage | Water Well | |
| Condition | New | Power(W) | 20 HP |
Product Description

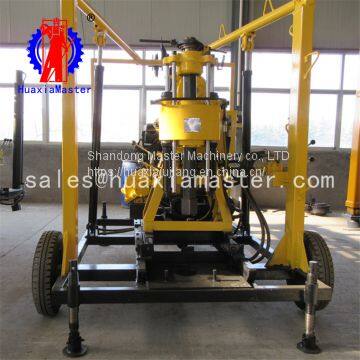

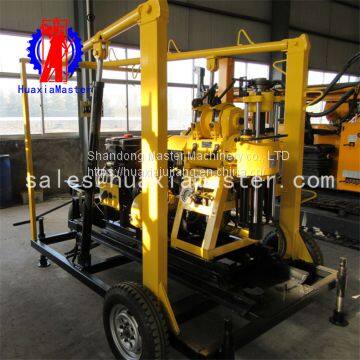

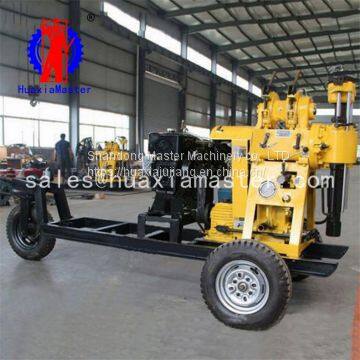

XYX-130 wheeled hydraulic water well drilling rig
1.Applications of XYX-130 wheeled hydraulic water well drilling rig
Civil water well, Geological survey and exploration, basic exploration for roads and high-rise buildings, inspection holes for various concrete structures, river embankments, subgrade grouting holes, direct grouting, ground temperature central air conditioners.
2. Features of XYX-130 wheeled hydraulic water well drilling rig
The drilling rig is equipped with wheeled walking mechanism, which is convenient for the whole machine to move.
Also, because of the oil pressure feeding mechanism, the drilling rig improves drilling efficiency.
The drilling rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod. The working efficiency is high and the operation is convenient, safe and reliable.
The drilling rig is equipped with pressure gauge so the operatpr will know the bottom hole condition during drilling process.
3. Technical parameters of XYX-130 wheeled hydraulic water well drilling rig
XYX-130 wheeled hydraulic water well drilling rig | |
Drilling depth | 130m |
Max open hole caliber | 220mm |
End hole caliber | 75mm |
Drilling rod diameter | 50mm |
Drilling angle | 90°-75° |
Drill weight | 950kg |
Spindle | |
Spindle speed | 142 285 570r/min |
Spindle stroke | 450mm |
Windlass | |
Maximum lifting weight of single rope | 1600kg |
Single rope lifting speed | 0.41 0.82 1.64m/s |
Drum diameter | 140mm |
Wire rope diameter | 13mm |
Wire rope capacity | 27m |
Mud pump | |
Type | Horizontal single cylinder double action |
Displacement diesel engine / motor | 95/77 l/min |
Maximum pressure | 1.2mpa |
Work pressure | 0.7mpa |
Drilling depth | 130m |
Max open hole caliber | 220mm |
End hole caliber | 75mm |
