Hydraulic XY-180 Borewell Drilling Machine /well Drilling Rig 180m
- Qingdao
- T/T L/C
- 10 days
You May Like
-
XY-200 Core Drilling Machine /engineering Geology Exploration Equipment 200m Depth Civil Water Well Rig
-
2000m Depth Geology Exploration Rig XY-8 Deep Hole Water Well Drilling Machine/ Diamond Drill Machine
-
1000m XY-44A Borehole Water Drilling Rig Machine on Sale
-
China Best Crawler KY-150 Hydraulic Reverse Circulation(RC) Drilling Rig for Mining Prospection
-
KY-200 Mine Rock Drilling Machine Hydraulic Metal Drilling Machine on Sale
-
KY-250 Hydraulic Exploration Drilling Rig for Metal Mine /gold Ore Exploration Rig /high Efficiency Prospecting Drilling Rig
Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Model Number | XY-180 | Type | Rotary Drilling Rig | |
| Certification | ISO 9001 | After-sales Service Provided | No overseas service provided | |
| Warranty | 6 Months | Weight | no | |
| Dimension(L*W*H) | no | Power Type | Diesel | |
| Voltage | no | Usage | Water Well | |
| Condition | New | Power(W) | 15kw |
Product Description

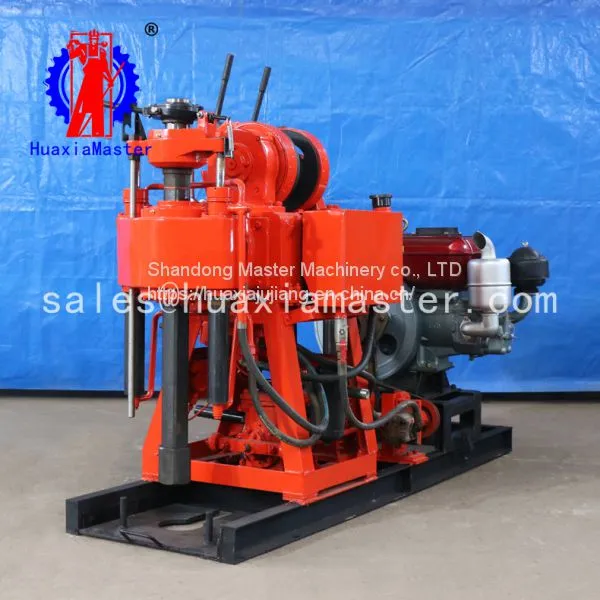

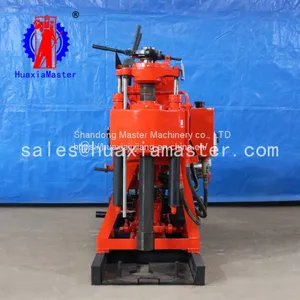

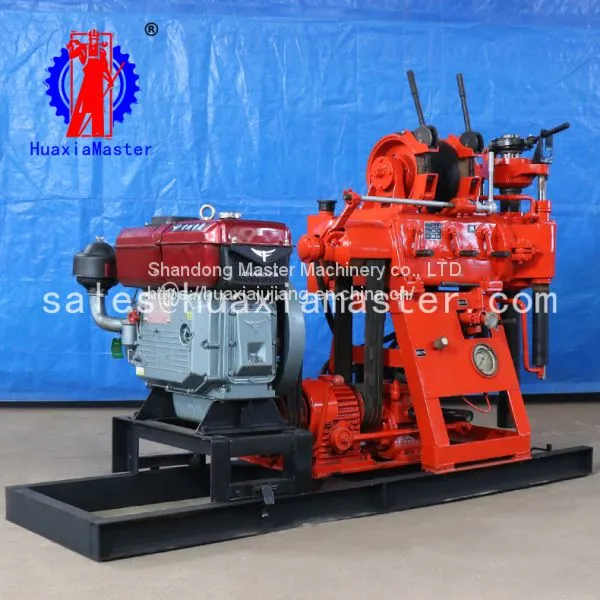

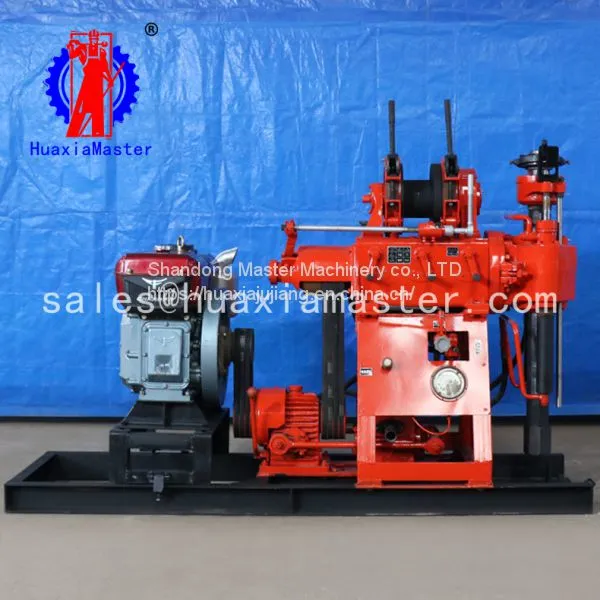

XY-180 hydraulic water well drilling rig
1. Applications of XY-180 hydraulic water well drilling rig
The XY-180 water well drilling rig is designed on the basis of the XY-1A water well drilling rig. It is a low speed and high torque water well drilling rig with oil pressure.
This drilling rig is suitable for engineering geological survey of railway, hydropower, traffic, bridge, dam foundation and other buildings, geological core drilling and physical investigation, drilling holes for small holes and blasting holes, a small water well drilled.
1. Parameters of XY-180 hydraulic water well drilling rig
Drilling depth（m） | 180/150/120/90/70/30 |
Borehole diameter（mm） | 75/91/110/130/150/300 |
Maximum opening diameter（mm） | 375 |
Drill pipe diameter（mm） | 42/50 |
Spindle speed (r/min) | 71/142/310/620 |
Spindle stroke（mm） | 450 |
Upgrading ability (KN) | 15 |
Diameter of steel wire（mm） | 12 |
Type | gear pump |
Model | YBC-12/80 |
Rated pressure (MPa) | 8 |
Rated speed (r/m) | 1500 |
Displacement（ml/r） | 8 |
Power supply | ZS1115 diesel engine and 15kw motor |
