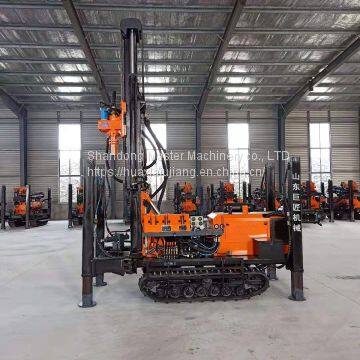

Supplies FYX-180 Crawler Pneumatic Water Well Drilling Rig Made in China
US$ 20000 - 20200
/ Set
1 Set(Min. Order)
- Qingdao
- T/T L/C
- 10 days
You May Like
-
200m Water Well Drilling Rig / Pneumatic Well Drill Equipment on Sale
-
FY300 Crawler Pneumatic Water Well Drilling Rig / Crawler Mounted Water Well Drilling Machine Factory Direct Sale
-
Crawler Type Pneumatic Drill Equipment / Borehole Drilling Machine
-
High Efficiency Crawler Water Well Drilling Machine / Well Pneumatic Drill on Sale
-
Strong Power FY260 Crawler Pneumatic Water Well Drilling Machine / Drilling Equipment for Water Well
-
HZ-130Y Hydraulic Core Drilling Rig Easy to Operation High Quality
Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Model Number | FYX-180 | Type | Rotary Drilling Rig | |
| Certification | ISO 9001 | After-sales Service Provided | No overseas service provided | |
| Warranty | 6 Months | Weight | 4.5t | |
| Dimension(L*W*H) | 3800*1500*2200mm | Power Type | Diesel | |
| Voltage | no | Usage | Water Well | |
| Condition | New | Power(W) | 55kw |
Product Description
FYX-180 crawler pneumatic water well drilling rig
1.The applications of FYX-180 crawler pneumatic water well drilling rig
· Civil engineering drilling
· Geothermal drilling
· Drilling with large diameter and deep drilling footage
· It's fast, flexible and efficient
2.The specifications of FYX-180 crawler pneumatic water well drilling rig
model | FYX-180 | |
Gross weight | T | 4.5 |
Dimension | mm | 3800*1500*2200 |
Aperture | mm | 140-254 |
Drilling depth | m | 180 |
Feed stroke | mm | 3300 |
Travel speed | km/h | 2.5 |
Grade ability | Max. | 30° |
Wind pressure | Mpa | 1.7-2.5 |
Air consumption | m³/min | 17-31 |
Drill pipe diameter | mm | φ76 φ89 |
Drill pipe length | m | 1.5 2.0 3.0 |
Engine power | kw | 55 |
Rotary speed | rpm | 45-65 |
Rotation torque | N.m | 3200-4600 |
