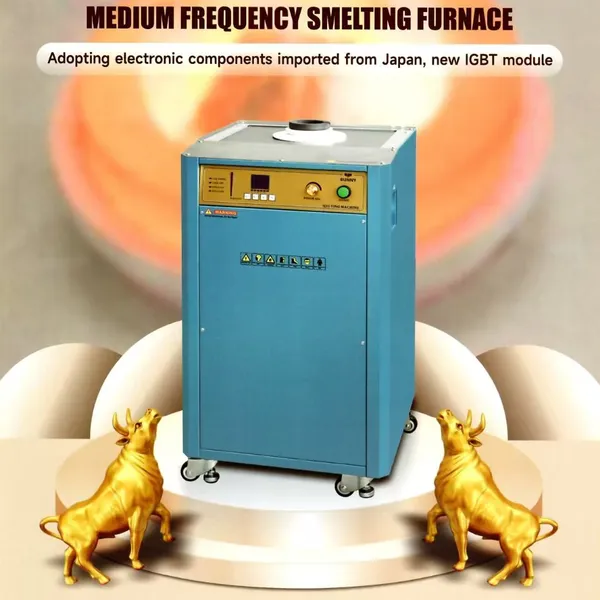

Gold Melting Machine

Melting Machine For Alloy, White gold, Silver, Platinum, Brass, Metal

Product Features:

A. Japan imported electronic components and new IGBT module are adopted, so the heating speed is 20%-50% faster than the previous system.

1. Heating method is medium frequency induction heating. It allows continuous melting, no need to stop for cooling during the process.

B. Various safety protection measures guarantee a secure environment for operators.

C. The service life of the machine can be extended under various safety protection measures.

D. The maximum melting capacity is 15KG pure gold per crucible.

E. Material Shapes: Powder, shots and strip can be melted by this machine.

F. This three phase melting machine has been into the market for over 10 years. It has gained good reputation from the customers for its great stability.

G. Melting speed: 3 minutes

Specifications of this 3 Phase Melting Furnace:

Applicable Location：Small scale casting, casting material ingredients, old material cleaning

Power Supply (Default): Three phase, AC 380V 50/60Hz 6.5KW

Power Supply (Optional): Three phase, AC 420V 50/60Hz 6.5KW

Power Line: Above 4mm²

Rated Current of Leakage Switch: 30A

Cooling Water Input Pressure: MIN 3 Bar / MAX 5 Bar

Speed of Cooling Water Input Flow: Above 3L/Min

Temperature of Cooling Water: 20～35℃（68～95℉）. Not exceeding 40℃（104℉)

Temperature Display Range: 0～1370℃ （33.8～2498℉）

Temperature Setting Range: 0～1200℃ （33.8～2192℉）

Working Area Temperature: Max 1100℃

Heating Method: Medium frequency induction heating

Temperature Control: PID temperature control, digital display

Melting Capacity: 2.0Kg, 2.5 Kg, 4KG, 5.5 KG, 10Kg or 15Kg gold

Standard Accessories: Crucible tongs, graphite crucible, ceramic crucible

Protection Measurement: Self-test protection such as water shortage, water temperature and overcurrent, non-loaded protection(no crucible).

Overall Dimensions: L 500x W 500 x D 815（mm）

Net Weight: 100KG

==

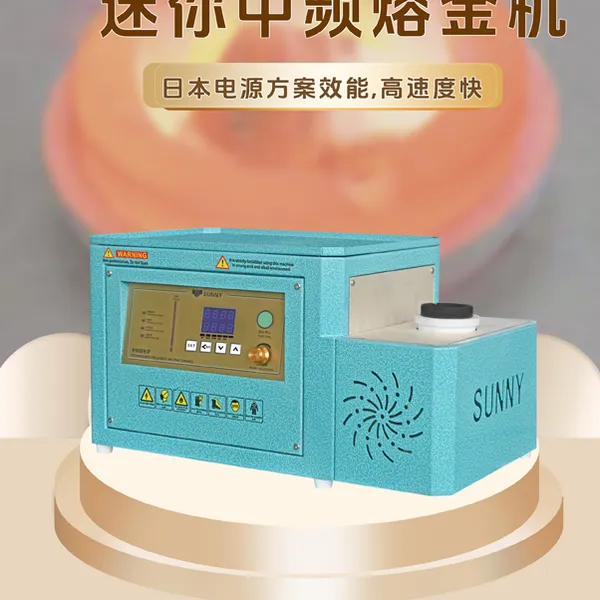

Desktop Melting Furnace

Product Features

A. This desktop melting furnace uses regular electricity supply as input power supply. It is applicable for family workshop, small scale casting workshop and gold shop.

B. Heating method is medium frequency induction heating. Each pot of gold can be completely melted in 4 minutes.

C. Heating method is medium frequency induction heating. It allows continuous melting, no need to stop for cooling during the process.

D. Sanei is the first company that uses full aluminum case in this industry. Power loss is very small.

E. Various safety protection measures guarantee a secure environment for operators.

F. The service life of the machine can be extended under various safety protection measures.

G. The maximum melting capacity is 2KG pure gold per crucible.

H. Material Shapes: Powder, shots and strip can be melted by this machine.

Specifications of this mini type melting machine:

Applicable Location: Family workshop, small scaled casting, polishing powder recycling

Power Supply (Default): Single phase, AC 220V 50/60Hz 4.4KW

Power Supply (Optional): Single phase, AC 240V 50/60Hz 4.8KW

Power Line: Above 4mm²

Rated Current of Leakage Switch: 30A

Cooling Water Input Pressure: MIN 3 Bar / MAX 5 Bar

Speed of Cooling Water Input Flow: Above 3L/Min

Temperature of Cooling Water: 20～35℃（68～95℉）Not exceeding 40℃（104℉)

Temperature Display Range: 0～1370℃ （33.8～2498℉）

Temperature Setting Range: 0～1200℃ （33.8～2192℉）

Working Area Temperature: Max 1100℃

Heating Method: Medium frequency induction heating

Temperature Control (Default): Visual measurement

Temperature Control (Optional): PID temperature control, digital display(optional)

Melting Capacity: 1.0KG,1.5KG or 2.0KG gold

Standard Accessories: Crucible tongs, graphite crucible, ceramic crucible

Protection Measurement: Self-test protection such as water shortage, water temperature and overcurrent, non-loaded protection(no crucible).

Overall Dimensions: H290 x W 260 x D 600（mm）

Net Weight: 17.5 KG
