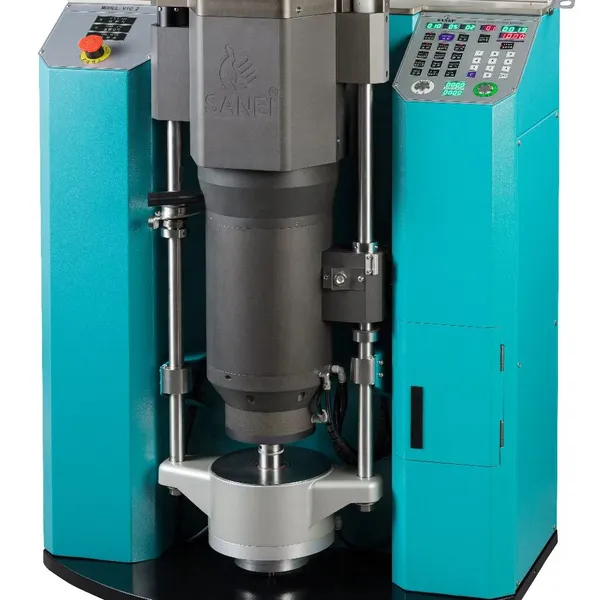

Sanei new casting machine, Japanese Technology, the most beautiful, capable and durable casting machine in the world!
Two-year warranty for casting machine
Three-year warranty for heating power supply

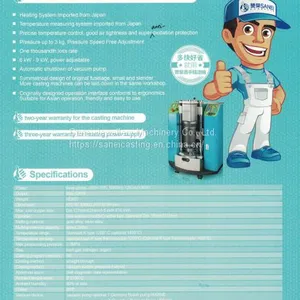

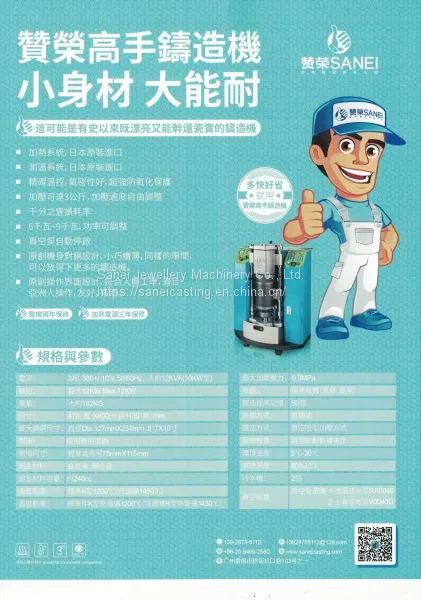

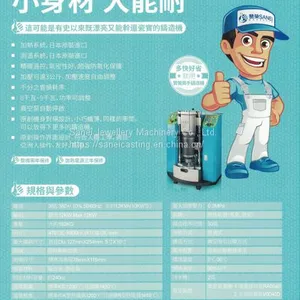

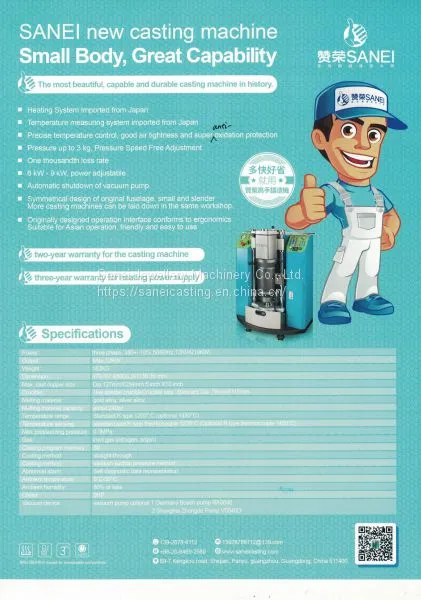

Features of Digital Vacuum Pressure Casting Machine:
1, Heating system imported from Japan
2, Temperature measuring system imported from Japan
3, Precise temperature control, good air tightness and super anti-oxidation protection
4, Pressure up to 3kg, pressure speed - free adjustment
5, One thousandth loss rate. The loss is less than Chinese machine and more stable and easily operational than Chinese machine.
6, 6KW-9KW, power can be adjustable
7, Vaccum pump - automatic shutdown
8, It is more convenient to operate than Japanese machine. Casting process is fast and casting result is good, casting time of the product is three minutes per flask less than Japanese machine.
9, The body of the machine is slim and not big but with great capability and unique design. Not only the appearance is attractive, but also with fast processing and casting quality output.
10, Casting success ratio is high, one flask casting by our machine currently is equal to your two flasks casting previously.
11, The system is very stable so the casting result is very good, which will save your time for polishing, stone setting and electroplating.
12, Precise temperature control and easy operation. Rotary support with easy cleaning.
Specifications: (Model: VIC-2)
Power supply: three phase, 380 +/- 10%, 50/60Hz, 12KVA (10KW)
Output: MAX. 12KW
Weight: 182KG
Dimensions: 470 (W) X 800 (L) X 1130 (H) mm
Maximum copper casting size: Diameter 127mmX254mm(5 inch X 10 inch)
Crucible: special configuration
Crucible size: standard Diameter 78mmX115mm
Melting material: gold alloy, silver alloy
Capacity of melting material: about 240cc
Temperature range: standard K type 1200 ℃ (Optional 1450 ℃)
Temperature sensing: Standard K-type thermocouple 1200 ℃ (Optional R-type thermocouple 1450 ℃)
Maximum pressurized pressure: 0.3MPa
Gas: inert gas (nitrogen, argon)
Casting program memory: 50
Cooling method: straight-through
Casting method: vacuum suction pressurization
Abnormal alarm: self-diagnostic data display
Ambient temperature: 5 ℃ -30 ℃
Ambient humidity: below 80%
Chiller: 2HP
Vacuum device: vacuum pump. Optional 1 Germany Busch pump RA0040, Optional 2 Shanghai Zhongde pump V0040D
