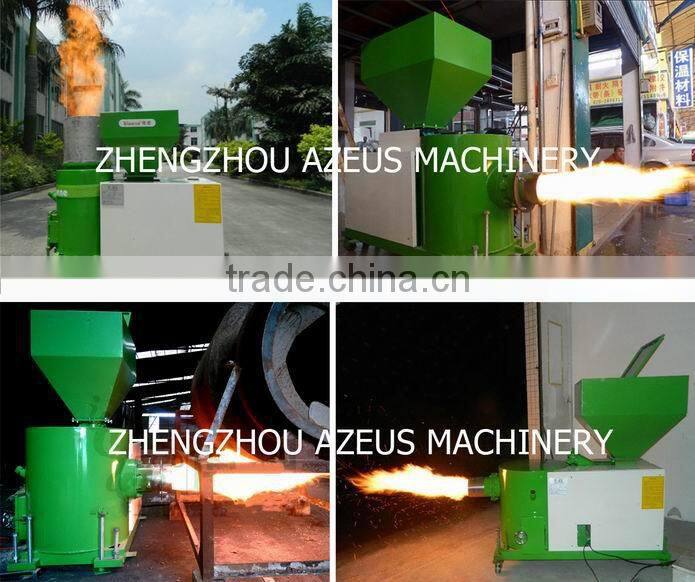

Biomass Wood Burner For Melting Furnace
Brief Introduction
The biomass wood burner uses biomass pellets as fuel, and adopts semi-gasification combined combustion technology, which has the advantages of reasonable structure, automatic feeding, high thermal efficiency, full combustion, non- pollution, low-emission, easy to install and small occupied space. And also with low cost, it is the best green fuel instead of coal, diesel, gas etc.
Why choose our biomass wood burner?
1. Wide raw material: Adopt all kinds of wood material with size less than 30mm, such as biomass pellets, wood chips, sawdust etc.
2. High efficiency, to save cost
3. Stable burning and safety: the machine in the positive pressure by mode, don't produce temper and take off fire phenomenon.
4. No pollution: to renewable biological energy sources for fuel, realize the sustainable use of energy. Low temperature section combustion technology, SO2, NOX in flue gas, dust, low emissions.
5. The heat load adjusting range is wide: the machine heat load can be rated load in the 30% to 120% range quick adjustment, starting fast, sensitive reaction.
6. Simple operation and maintenance, to realize automatic operation dependently.
Technical Parameter
Model |
Rated calorific (Kcal/hx104) |
Rated voltage (V) |
Input power (KW) |
Output power (KW) |
Fuel consumption (kg/h) |
Weight (t) |
AZS-BN-20 |
20 |
220 |
0.75 |
75-250 |
50 |
0.6 |
AZS-BN-30 |
30 |
220 |
0.75 |
110-375 |
75 |
0.7 |
AZS-BN-45 |
45 |
220 |
1.15 |
170-565 |
115 |
1.0 |
AZS-BN-60 |
60 |
380 |
1.9 |
225-750 |
150 |
1.6 |
AZS-BN-90 |
90 |
380 |
3.1 |
335-1125 |
225 |
2.2 |
AZS-BN-120 |
120 |
380 |
3.7 |
450-1500 |
300 |
3.0 |
AZS-BN-180 |
180 |
380 |
5.25 |
675-2250 |
450 |
3.8 |
AZS-BN-240 |
240 |
380 |
8.45 |
900-3000 |
600 |
4.8 |
AZS-BN-300 |
300 |
380 |
10.45 |
1200-3750 |
750 |
8 |
AZS-BN-360 |
360 |
380 |
10.45 |
1800-4500 |
900 |
9 |
Application of biomass wood burner
Our biomass wood burner is widely used for drying plant, aluminum industry, paiting industry and others:
1. Coating, painting, electroplating, electrophoresis etc. (e.g. For Valve Casting)
2. Differente drying equipment reforming and matching: Food drying, paper drying, painting material drying, wood drying, leather drying, ceramic drying etc. (e.g. For Tunnel Furnace)

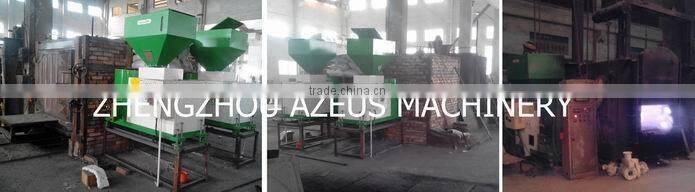

3. Aluminum heating furnace energy saving reforming and matching: Aluminum rod heating,melfing aluminium furnace,annealing furnace etc. (e.g. For Melting Furnace)
4. Other energy saving reforming and matching: industrial furnace, boiler, greenhouse etc.(e.g. For Boiler)
Please do not hesitate to contact BELLA WU, if you need any more information or have any other questions. We will be at your service at any time.
