SANEI CASTING - JAPANESE TECHNOLOGY
ITERATIVE INNOVATION

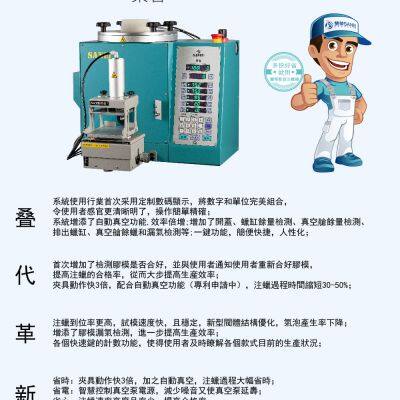

The system uses customized digital display, it is pioneered in the industry, which perfectly combines the number and unit, the sense from user is more clearer than other models, the operation is simple and accurate.
The system adds automatic vacuum function, the efficiency is doubled. Other functions such as lid opening,wax cylinder residual detection, vacuum chamber residual detection, wax cylinder discharge,vacuum chamber residual wax and air leakage detection are also added, one-key action.the operation is simple,fast,convenient and humanized.
For the first time, rubber mold good-condition-detection function is added, The system will check if the rubber mold is closed properly, and notify the user to reclose the rubber mold.lmprove the qualified rate of wax injection, thereby greatly improve the production efficiency. The clamping action is 3 times faster than old model, with automatic vacuumfunction (patent application is on), wax injection process time is reduced 30-50%
Wax injection rate is higher than old model, mold testing speed is fast and stable. New wax injectionvalve structure is optimized, the bubble generation rate is reduced.Rubber mdold leakage detection is added to improve production efficiency further.The counting function of each shortcut key enables users understand the current production status of each style timely.
Time saving:clamping action is 3 times faster than old model, coupled with automatic vacuum,the wax injection process greatly saves time.
Power saving:intelligent control of power supply of the vacuum pump, which reducing noise and prolongthe service life of the vacuum pump.
Worry free:high wax injection speeed with less waste rate, improves the qualified rate.
Labor saving:one touch key code and one-key action, fast and convenient.

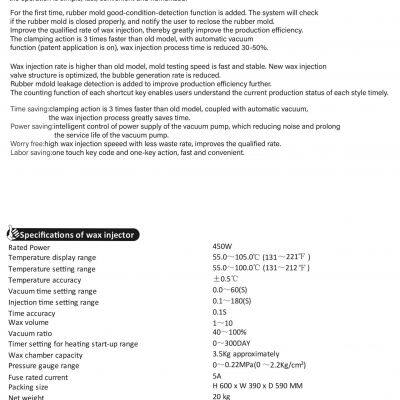

1-1.Parameter of Wax Injector
Powers supply: Single phase, AC 110-220V±10%, 50/60Hz
Rated Power: 450W
Temperature display range: 55.0~105ºC (131~221ºF)
Temperature setting range: 55.0~100ºC (131~212ºF)
Temperature accuracy: ±0.5ºC
Input pressure range: 0.4~0.8(MPa)
Pressure range of Pressure regulator : 0.4~0.55(MPa)
Vacuum time: AUTO/0.0~60(S)
Wax injection time: 0.1~180(S)
Time accuracy: 0.1(S)
Wax volume: 1~5
Vacuum ratio: 40~100%
Timing setting for heating start-up range: 0~300 DAYS
Wax chamber capacity: ~3.5Kg
Fuse rated current: 5A
Packing size: H 600 x W 390 x D 590 MM
Net weight: 20KG
Gross weight: 23KG

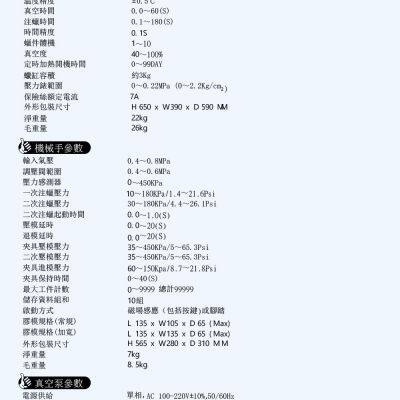

1-2.Parameter of Clamp
Pressure setting range for primary wax injection: 10~180(KPa)/1.4~21.6Psi
Pressure setting range for secondary wax injection: 30~180(KPa)/4.4~26.1Psi
Start-up setting range for secondary wax injection:0.0~1.0(S)
Time delay of clamp and clamp backward: 0~20(S)
Pressure setting range for clamp: 35~450(KPa)/5~65.3Psi
Secondary die pressure: 35~450(KPa)/5~65.3Psi
Pressure setting range for clamp forward: 60~150(KPa)/8.7~21.8Psi
Max pieces counting: 999,999,999
Target Value: 99,999
Shortcut key group: 10 Groups
Starting mode: Magnetic field sensing (including start buttons) or Foot mode
Rubber mold dimension (Standard): L 135 X W 105 X H 65 (Max)
Rubber mold dimension (Large): L 135 X W 135 X H 65 (Max)
Packing size(Clamp): H 565 X W 280 X D 310 MM
Net weight(Clamp): 8.0 KG
Gross weight (Clamp): 9.5 KG
1-3.Parameter of Vacuum Pump
Power supply: Single phase, AC 100-220V±10%,50/60Hz
Maximum Power: 120W
Packing size: H 220 X W 275 X D 110 MM
Net weight: 7.2 KG
Gross weight: 7.7 KG
==
Currently we have six models wax injectors totally, there are HONOR PRO, HONOR, AXIS, BRILLIANT, ADVANCE and ELITE models.
Please contact us for more details.
