Anticorrosion melting furnace centrifugal blower
Welcome To Henan Hengtong Blower CO.,LTD
Hengtong Blower produces in each big industries used as key equipment, among dust removal blower, boiler blower, cement plant dedicated blower, chemical drying ventilation fans, low noise centrifugal blowers , furnace centrifugal blower , centrifugal casting air blowers, environmental protect blower etc were used in industrial and civil fields.
Technical Parameters
| Application | Temperature | Normal temperature Air | |||
| Hot Air | |||||
| Air composition | Clean air | ||||
| Dusty air | |||||
| Corrosive gas | |||||
| Combustible gas | |||||
| Powder materials | |||||
| Light particle materials | |||||
| Performance | Impeller diameter | 400 | ~ | 2000 | mm |
| Speed of mainshaft | 960 | ~ | 4000 | rpm | |
| Pressure range | 251 | ~ | 4500 | Pa | |
| 1 | ~ | 33 | mmHg | ||
| 25 | ~ | 459 | mmH2O | ||
| Flow range | 220 | ~ | 221730 | m3/h | |
| 373 | ~ | 376899 | CFM | ||

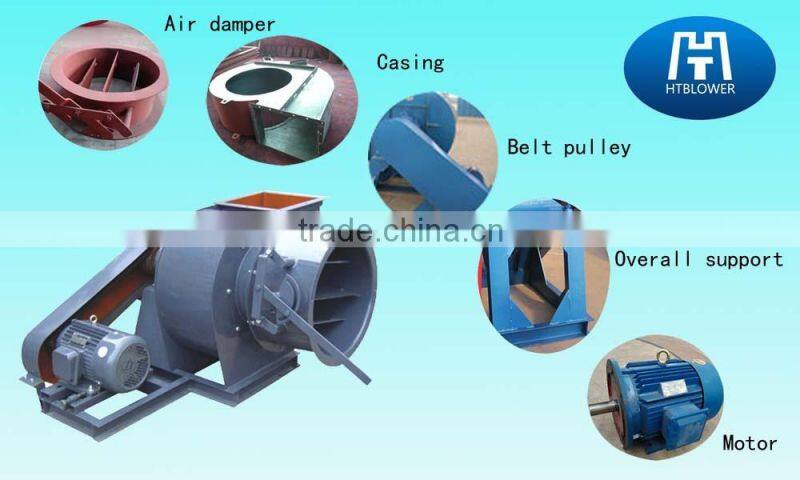

Recommended parts
Belt pulley: The structure is compact save a space ,differential transmission.
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
Impeller:Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Air inlet: Convergence can be a good design to reduce wind resistance, and to be able to get better gas inlet angle when entering the impeller wheel, can effectively improve the operating efficiency of the fan.
Overall support:Overall support is your installation is very simple and easy operation
Motor:General motor, high voltage, frequency conversion motor or custom is appropriate for your system
Optional components
Technical Parameters
| Application | Temperature | Normal temperature Air | |||
| Hot Air | |||||
| Air composition | Clean air | ||||
| Dusty air | |||||
| Corrosive gas | |||||
| Combustible gas | |||||
| Powder materials | |||||
| Light particle materials | |||||
| Performance | Impeller diameter | 400 | ~ | 2000 | mm |
| Speed of mainshaft | 960 | ~ | 4000 | rpm | |
| Pressure range | 251 | ~ | 4500 | Pa | |
| 1 | ~ | 33 | mmHg | ||
| 25 | ~ | 459 | mmH2O | ||
| Flow range | 220 | ~ | 221730 | m3/h | |
| 373 | ~ | 376899 | CFM | ||
Production process
Installation service
There are three methods for installing our service:
Quality Assurance:
Hengtong's Quality Control programe is backed by a comprehensive Quality Management System (ISO 9001:2000), deviced at the time of inception and
continuouslyupgraded. We have in place highly mechanised testing facilities, with procedures laid out to the requirement standards. The test facilities in
place permit the flawless testing of the complete range of our products.
Application
Our Principle
furnace centrifugal blower driven by motor, drive the impeller rotation, the gas along the air inlet get into the impeller, as a result of the action of the impeller, the gas gain energy, pressure and kinetic energy increased, the impeller gas out of the volute impeller junior people after work, leave is the role of volute impeller gas concentration of diversion, and parts of the gas kinetic energy into the static pressure, and then send the gas from the outlet of the spiral case, when the gas enough energy to overcome the resistance of pipelines and gas can be transported to high or the distance.
customer visitting
our blower export to Vietnam, Libya, the Philippines, Albania, Romania, Pakistan, India, EU and other countries and regions, which has won the domestic and foreign customers and several design institutes broad trust and praise.
Mian produce
Hengtong blower custom-engineered Corrosion-resistant ventilation blowers are designed specifically for each contract which allows us to apply a combination of experience, advanced design techniques and a knowledge of the operating conditions to select the optimum fan in terms of capital cost, running cost, maintainability and reliability. A wide range of options are available in terms of drive arrangement, output control, layout and ancillary equipment, to give maximum flexibility to the plant designer.
We will appreciate it a lot if you can offer us your product performance requirement and operation environment for the furnace centrifugal blower of you need,so that we can customize optimal product to meet your every requirement.
Air volume/air flow |
m3/h |
|
Total pressure or static pressure |
Pa |
|
Medium temperature |
℃ |
|
Voltage |
v |
|
Frequency |
Hz |
|
Altitude of operation place |
m |
If you are interested in our furnace centrifugal blower ,Please don't hesitate to visit our website.
htblower.en.china.cn
We will give you a favorable price. .
