Digital Vacuum Wax Injector

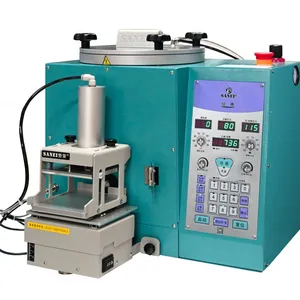

SANEI High Quality Vacuum Wax Injector (Axis)

SANEI CASTING - JAPANESE TECHNOLOGY

Auto Clamp Features:
1. X Axis: Automatic alignment function for left and right slight adjustment, which is very convenient for alignment and improves production efficiency greatly;
2. Z Axis: Pioneering automatic alignment function on up and down slight adjustment in Jewelry industry, the operator does not need to adjust the clamp height one by one when they continuously make different thickness rubber mould. This function may reduce the labor of the operator, lower the air leakage and wax leakage and improve production efficiency greatly.

Features of this AXIS model wax injection machine:
1. Unique shape, more beautiful appearance, less floor space.
2. Upgraded clamp unit with extra function: automatic alignment function on up and down slight adjustment aiming at wax injecting nozzle.
3. Pioneering and Innovative wax injecting nozzle mirror makes a more direct observation of alignment of wax injecting nozzle and rubber mould in Jewelry industry.
4. The position of the clamp cylinder is adjustable freely according to rubber mould's center of force.
5. The clamp unit adds a rapid lifting structure. The operator does not need any tools when processing different thickness rubber mould in the same wax injector machine. Two fingers are enough to position the wax injecting nozzle and the mouth of rubber mould into perfect match easily, conveniently and accurately.
6. "air cylinder structure" and "straight-through flow channel" are adopted for the wax injection valve. Injection distance of this wax injection valve is approximately 10 times farer than before based on the same injection pressure and temperature conditions. This means targeting ratio is higher than the traditional one on the production of wax pieces and with less burrs. It is more applicable for big bracelet, high-precision wax setting, and ultra-thin big wax pieces.
7. Temperature, timing and pressure are controlled by digital circuit,the precision is more accurate than anolog logic circuit.
8. Integrated body for this wax injector, the installation process is very convenient and fast.

Wax Injector Specifications:
Power Supply: Single Phase, AC 100-220V±10%,50/60Hz
Rated Power: 500W
Temperature Display Range: 40.0~99.9ºC (104~212ºF )
Temperature Setting Range: 40.0~90.0ºC (104~194ºF )
Temperature Accuracy: ±0.5ºC
Vacuum Timing Setting Range: 0~99.9(S)
Wax Injection Timing Setting Range: 0.1~600(S)
Time Accuracy: 0.1S
Timing for Heating: 0~99H
Wax Tank Volume: ~3KG
Pressure Gauge Range: 0~0.40MPa (0~4.0Kg/cm²)
Fuse Rated Current: 5A
Packing Size: L 668 x W 380 x D 595 mm
Net Weight: 19KG

Clamp Unit Specifications:
External Pressure Input: 0.4~0.7MPa
Pressure Regulating Valve Pressure Range: 0.25~0.3MPa
Pressure Sensor Display Range: - 5~240KPa
Primary Wax Injection Pressure Setting Range: 10~220Kpa
Secondary Wax Injection Pressure Setting Range: 10~220Kpa
Secondary Wax Injection Start Time Setting Range: 0~99.9(S)
Clamp Pressure Setting Range: 30~235Kpa
Forward Pressure Setting Range: 65~235Kpa
Clamp Hold Time Setting: 0~300(S)
Max Pieces Counting: 0~9999
Data Storage: 10,000
Starting Mode: Magnetic Induction or Press Button
Rubber mould Size (Standard): L 135 x W 105 x D 45 (max)
Rubber mould Size (Large): L 135 x W 135 x D 60 (max)
Packing Size: L 543 x W 278 x D 540 mm
Net Weight: 8KG

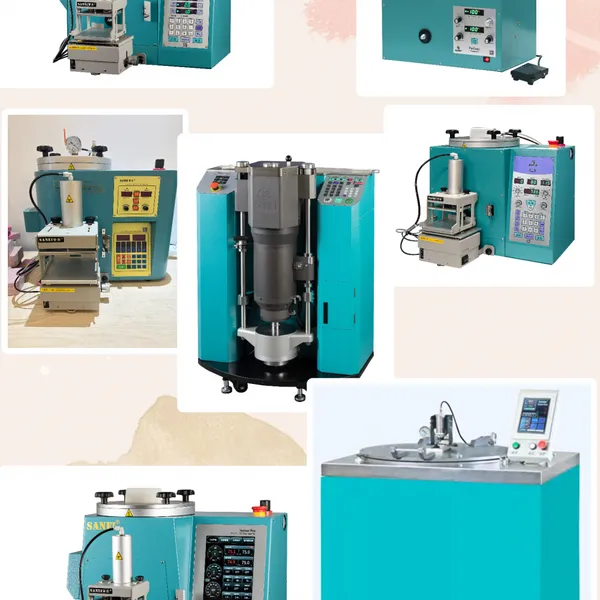

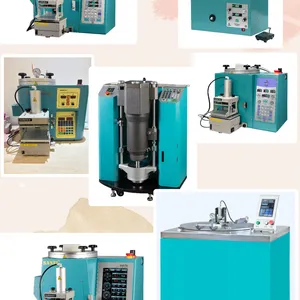

We have ANALOG, ELITE, ADVANCE, BRILLIANT, AXIS model for wax injectors, please contact us for more details.
